Amflow PL Carbon
Shipping Bikes & Equipment
For the full Spoke N Trail experience we recommend choosing local pickup from our store in Noosaville.
1 - Ship to home - (Freight Cost TBC) - Contact us with your address for a quote.
Bikes are delivered partially assembled in a box. We highly recommend taking to your local bike shop for professional final assembly and setup by a qualified mechanic. If you decide to take your bike to a 3rd party for assembly or to check over of your own work, additional fees may apply. If any damage is evident to the box when it arrives please take photos and contact us prior to attempting assembly.
2 - Local Delivery $150 (within 50km of Noosaville store)
Bikes are professionally assembled, Delivery includes our standard bike setup and handover. During delivery we offer practical tips on setup, general care, and maintenance of your new bike.
3 - Pickup in-store (free)
All bikes are professionally assembled, setup and tuned for you.
Some of our in-stock bikes are not yet built and may take 48hrs to build for collection.
During in-store collection we offer practical tips on setup, general care, and maintenance of your new bike.
Please get in touch with our team if you have any questions about bikes or shipping.
Product Info
Details + Specs

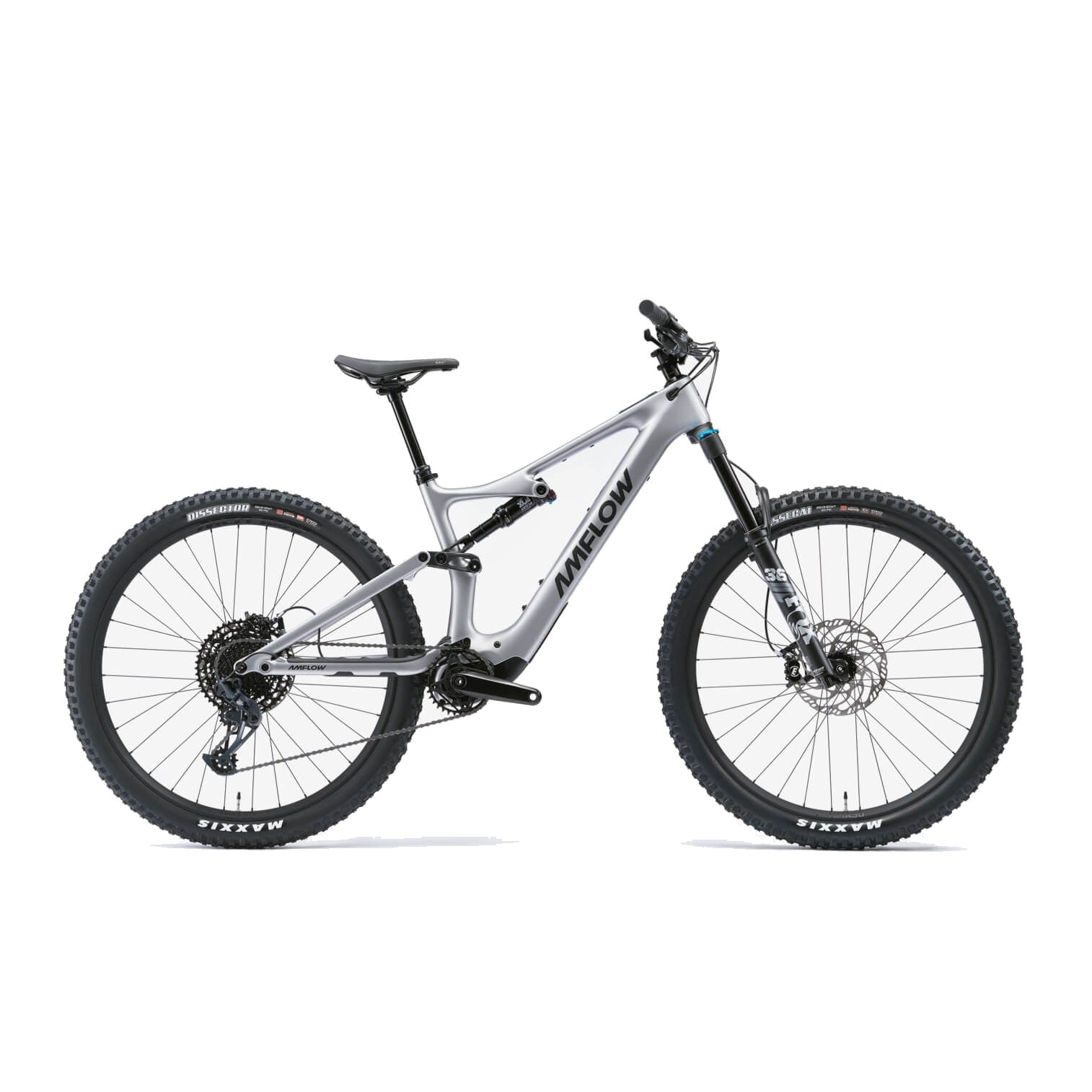

PL Carbon
Full power, trail-focused control
The Amflow PL Carbon is a lightweight full-power e-MTB built around Amflow’s carbon frame and Avinox M1 drive system. It offers strong assistance, long-range battery capacity and agile trail handling in a bike designed to feel lively rather than heavy. With 150mm rear travel, mixed-wheel compatibility and a powerful Avinox system, the PL Carbon is a strong all-round option for riders who want a modern e-MTB that climbs efficiently and still feels…
Best for: Trail and all-mountain riders wanting high-output assistance, balanced suspension and confident handling.
Pre-order information
This model is offered as a pre-order while it is not in stock at Spoke N Trail. Secure an allocation with a $500 deposit; we will confirm current Australian availability and expected delivery timing before finalising your order. The final balance is due before collection or dispatch.
At a glance
Motor
Avinox M1 Drive Unit: 105 N·m
Battery
Avinox Integrated Battery: 800Wh
Frame
Amflow PL Carbon Frame
Fork
FOX 36 Performance
Shock
FOX Float Performance
Drivetrain
SRAM GX Eagle 12-speed
Key highlights
Avinox M1 drive system
800Wh integrated battery
150mm rear travel carbon frame
Mixed-wheel compatible frame design
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
E-bike system
Drive Unit
Avinox M1 Drive Unit: 105 N·m
Display
Avinox Screen: 2-inch OLED Control Display
Battery
Avinox Integrated Battery: 800Wh
Wireless Controllers
Avinox Wireless Controllers: right and left sides
Charger
Avinox Fast Charger: 12A/508W
Frameset and geometry
Frame
Amflow PL Carbon Frame
Colour
Satin Silver
Rear Travel
150mm rear travel
Wheel Compatibility
Compatible with 27.5" and 29" rear wheels
M Frame Travel
150mm
L Frame Travel
170mm
XL/XXL Frame Travel
190mm
Suspension
Rear Shock
FOX Float Performance
Rear Shock Details
Trunnion (185x55mm), custom tune, EVOL Air sleeve, 2-position lever
Fork
FOX 36 Performance
Fork Details
160mm travel, GRIP Damper, 15x110mm, 44mm rake
Shock Pump
Shock Pump
Brakes
Brakes
Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
Drivetrain
Rear Derailleur
SRAM GX Eagle 12-speed
Chainring
SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers
SRAM GX Eagle Trigger Shifter | Single Click
Cassette
SRAM PG-1230, 11-50T
Chain
SRAM NX Eagle
Crankset
DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Wheels and tyres
Wheels
Amflow HMA-30
Rims
Alloy, 29", 30mm internal width, 32H, tubeless ready
Spokes
SAPIM E-Light J-bend
Front Hub
Alloy, 2 sealed cartridge bearings, 15x110mm thru-axle, 32H, 6-bolt
Rear Hub
Alloy, 4 sealed cartridge bearings, 148x12mm thru-axle, 32H, 6-bolt, 21T
Front Tyre
Maxxis Assegai MaxxTerra 29x2.5" WT 3C EXO E-25 TLR
Rear Tyre
Maxxis Dissector MaxxTerra 29x2.4" WT 3C EXO+ E-25 TLR
Cockpit and contact points
Handlebar
Amflow Enduro Alloy Handlebar
Handlebar Details
35mm rise, 800mm wide; 5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grips
Stem
Amflow Enduro Stem, One-piece CNC
Stem Length
35mm
Clamping Diameter
35mm
Saddle
Selle Royal SRX Plus
Included equipment
Quick Start Guide
Quick Start Guide
Torque Wrench
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Lights
Front and Rear Lights
Product details
Seatpost
KS Rage-i
Specifications are supplied by Amflow and may change without notice. Contact us if you would like us to confirm the current build before ordering.
