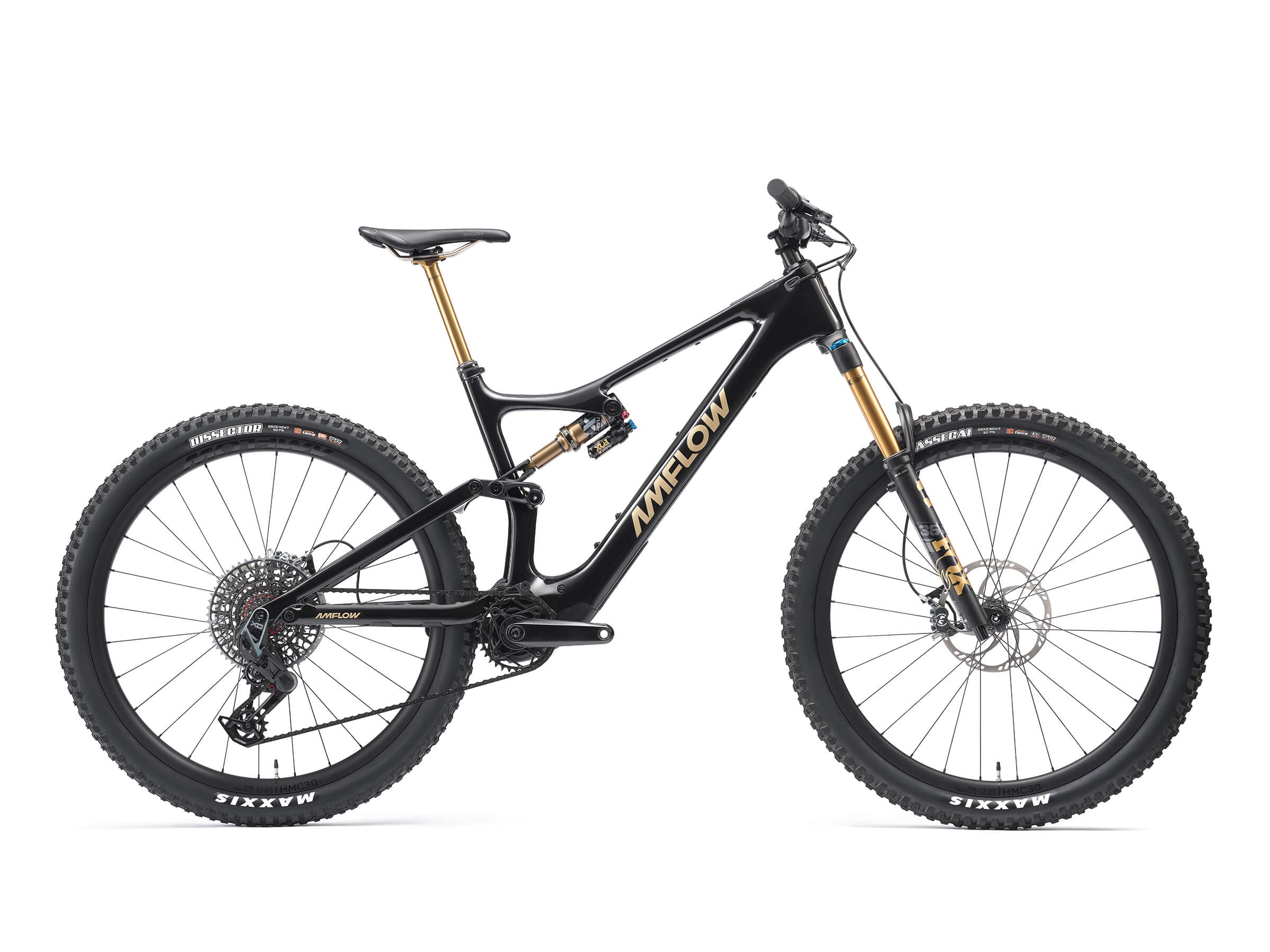

Amflow PL Carbon Pro
Shipping Bikes & Equipment
For the full Spoke N Trail experience we recommend choosing local pickup from our store in Noosaville.
1 - Ship to home - (Freight Cost TBC) - Contact us with your address for a quote.
Bikes are delivered partially assembled in a box. We highly recommend taking to your local bike shop for professional final assembly and setup by a qualified mechanic. If you decide to take your bike to a 3rd party for assembly or to check over of your own work, additional fees may apply. If any damage is evident to the box when it arrives please take photos and contact us prior to attempting assembly.
2 - Local Delivery $150 (within 50km of Noosaville store)
Bikes are professionally assembled, Delivery includes our standard bike setup and handover. During delivery we offer practical tips on setup, general care, and maintenance of your new bike.
3 - Pickup in-store (free)
All bikes are professionally assembled, setup and tuned for you.
Some of our in-stock bikes are not yet built and may take 48hrs to build for collection.
During in-store collection we offer practical tips on setup, general care, and maintenance of your new bike.
Please get in touch with our team if you have any questions about bikes or shipping.
Product Info
Details + Specs

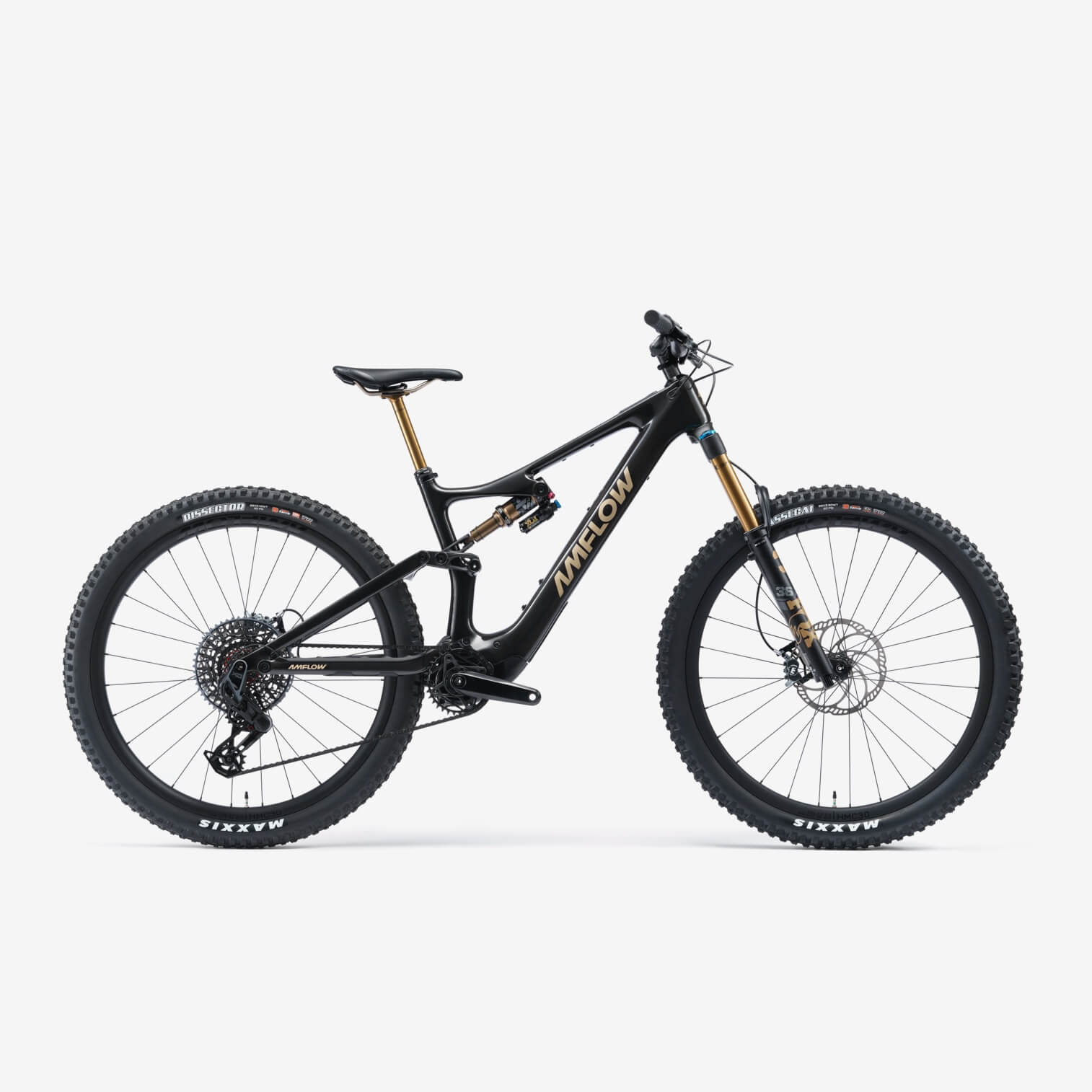

PL Carbon Pro
Removable power, serious capability
The Amflow PL Carbon Pro is the premium version of Amflow’s lightweight full-power PL platform. It keeps the agile carbon frame and Avinox M1 drive system, then adds a higher-spec suspension and component package for riders who want sharper trail performance out of the box. Available with 600Wh/800Wh platform support depending on configuration, the PL Carbon Pro is built for riders chasing strong range, high-end suspension feel and confident trail…
Best for: Technical trail and all-mountain riding with full power and a removable long-range battery.
Pre-order information
This model is offered as a pre-order while it is not in stock at Spoke N Trail. Secure an allocation with a $500 deposit; we will confirm current Australian availability and expected delivery timing before finalising your order. The final balance is due before collection or dispatch.
At a glance
Motor
Avinox M1 Drive Unit: 105 N·m
Battery
Avinox Integrated Battery: 600Wh/800Wh
Frame
Amflow PL Carbon Frame
Fork
FOX 36 Factory
Shock
FOX FLOAT X Factory
Drivetrain
SRAM X0 Eagle Transmission Derailleur w/ power cable
Key highlights
Avinox M1 drive system
Premium FOX Factory suspension package
Electronic drivetrain package
150mm rear travel carbon frame
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
E-bike system
Drive Unit
Avinox M1 Drive Unit: 105 N·m
Display

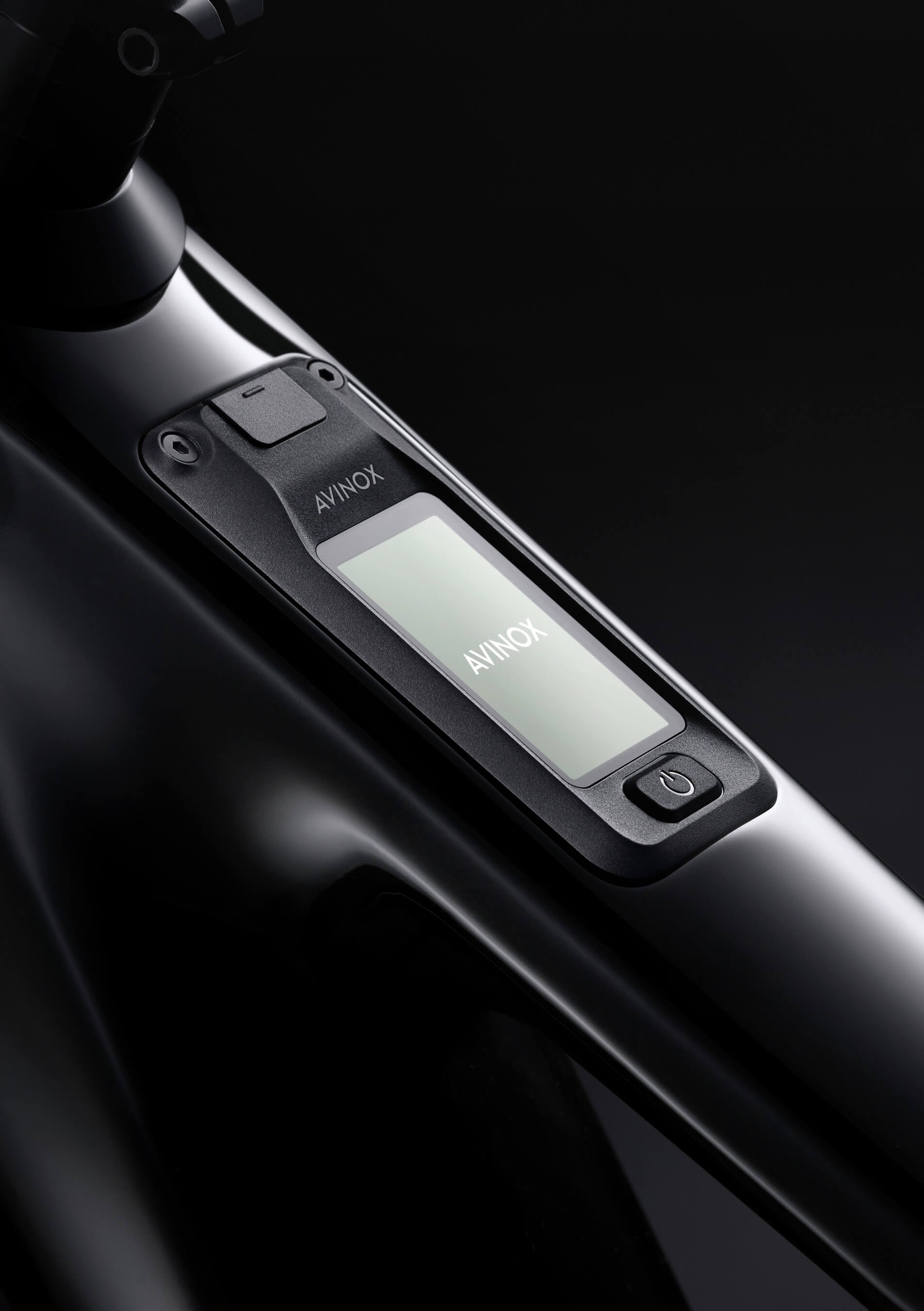

Avinox Screen: 2-inch OLED Control Display
Battery
Avinox Integrated Battery: 600Wh/800Wh
Wireless Controllers
Avinox Wireless Controllers: right and left sides
Charger

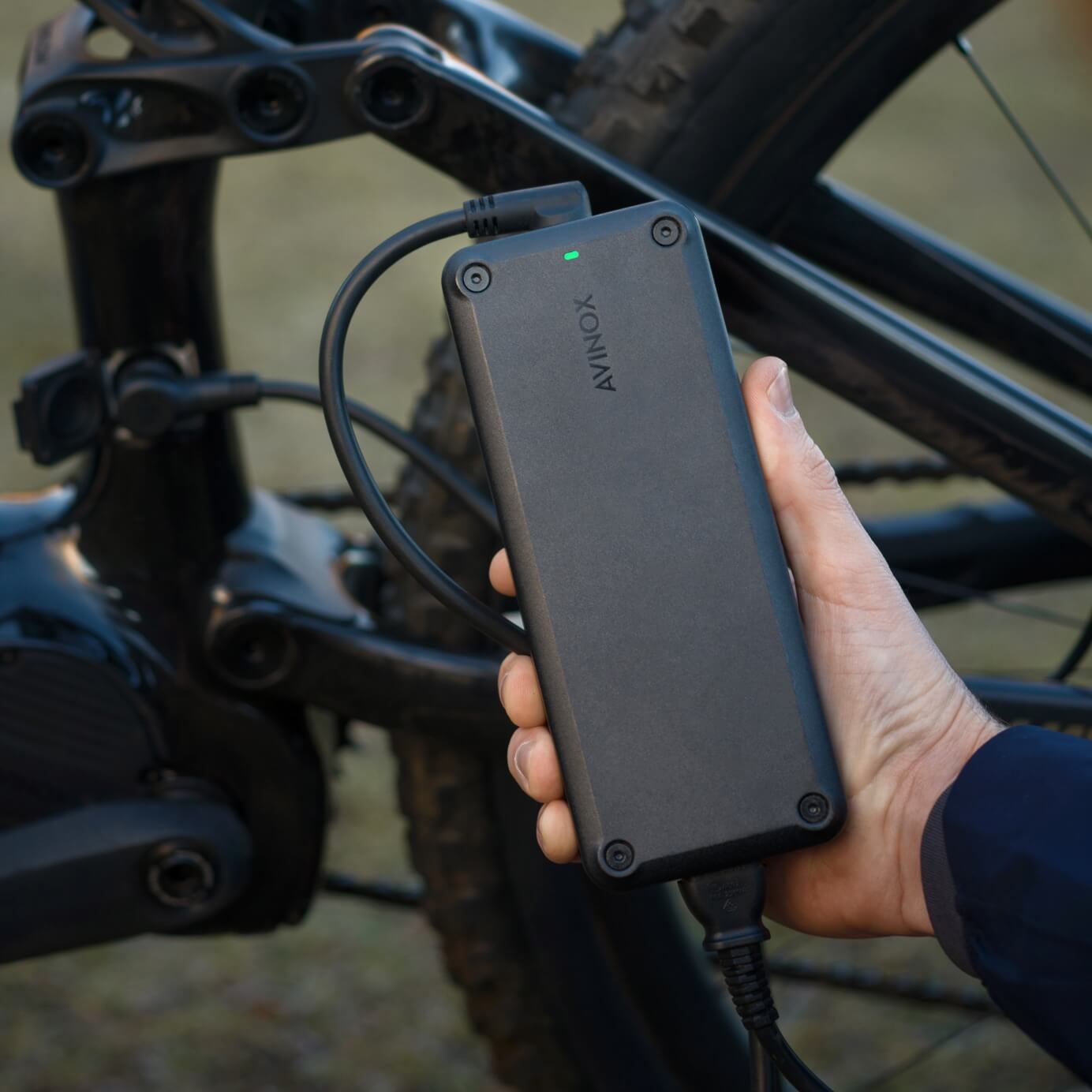

Avinox Fast Charger: 12A/508W
Frameset and geometry
Frame
Amflow PL Carbon Frame
Colour
Cosmic Black
Rear Travel
150mm rear travel
Wheel Compatibility
Compatible with 27.5" and 29" rear wheels
M Frame Travel
125-150mm
L/XL Frame Travel
155-180mm
XXL Frame Travel
185-210mm
Suspension

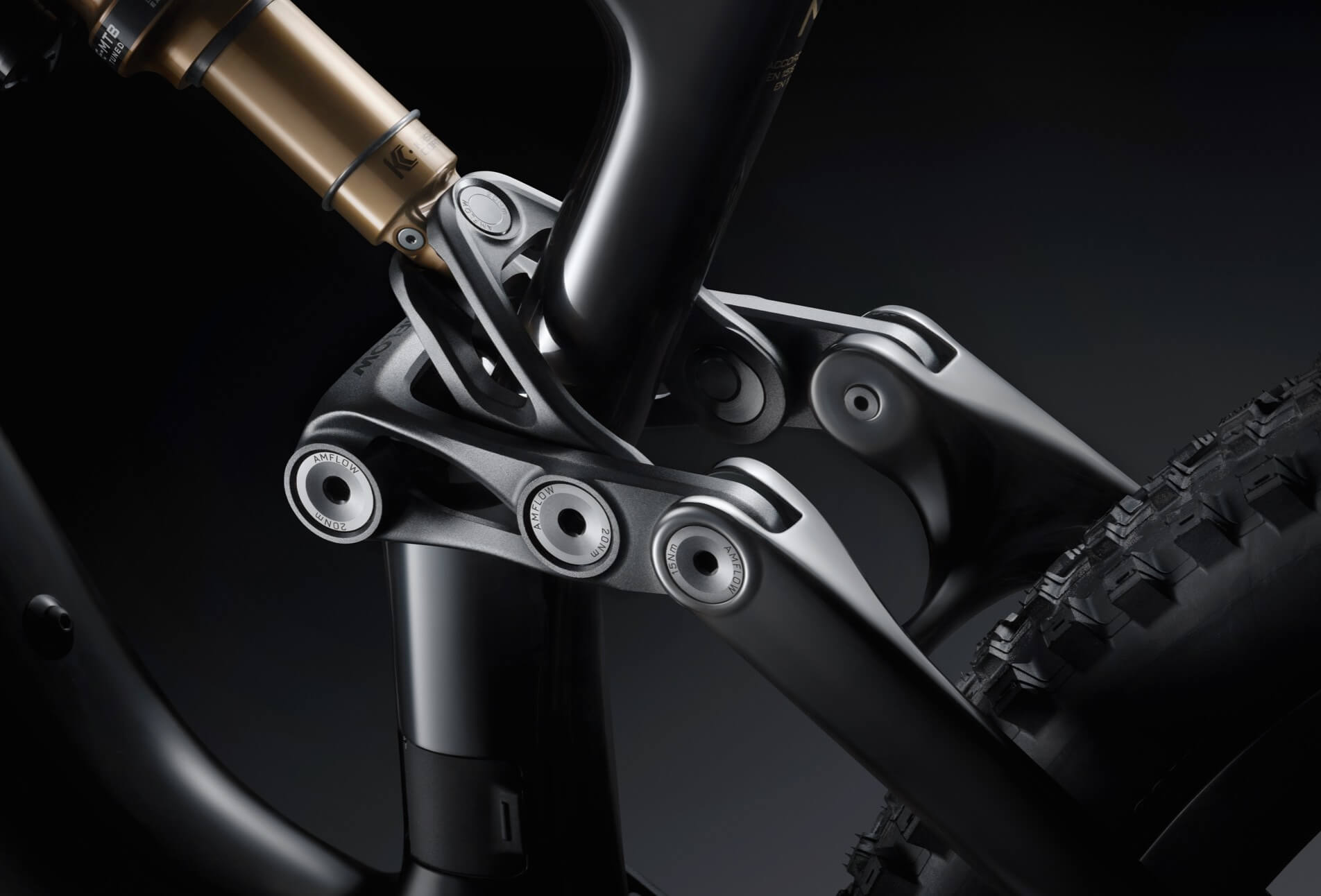

Rear Shock
FOX FLOAT X Factory
Rear Shock Details
Trunnion (185x55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment
Fork
FOX 36 Factory
Fork Details
160mm travel, GRIP X2 Damper, 15x110mm, 44mm rake
Shock Pump
Shock Pump
Brakes
Brakes
Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)
Drivetrain
Rear Derailleur

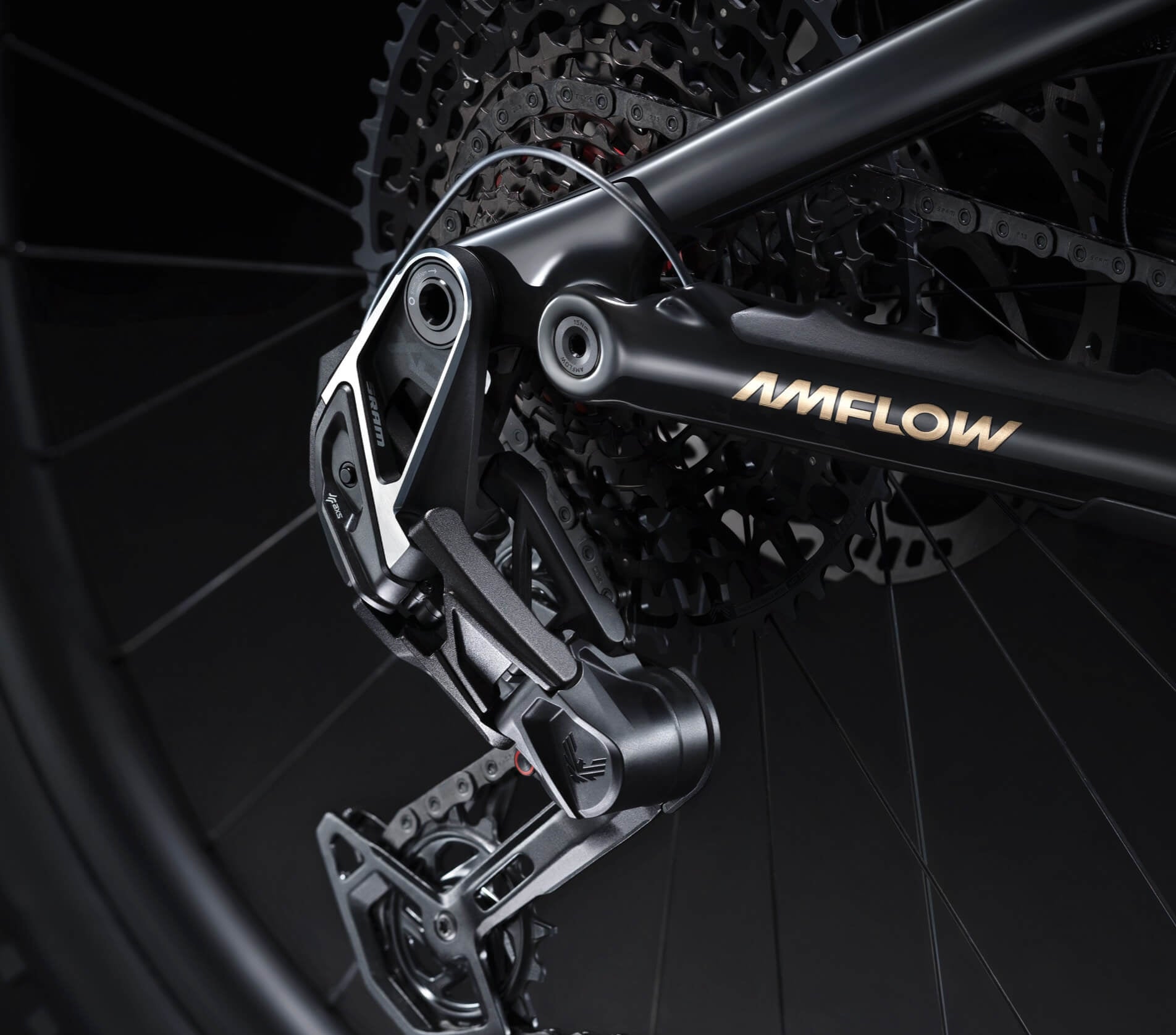

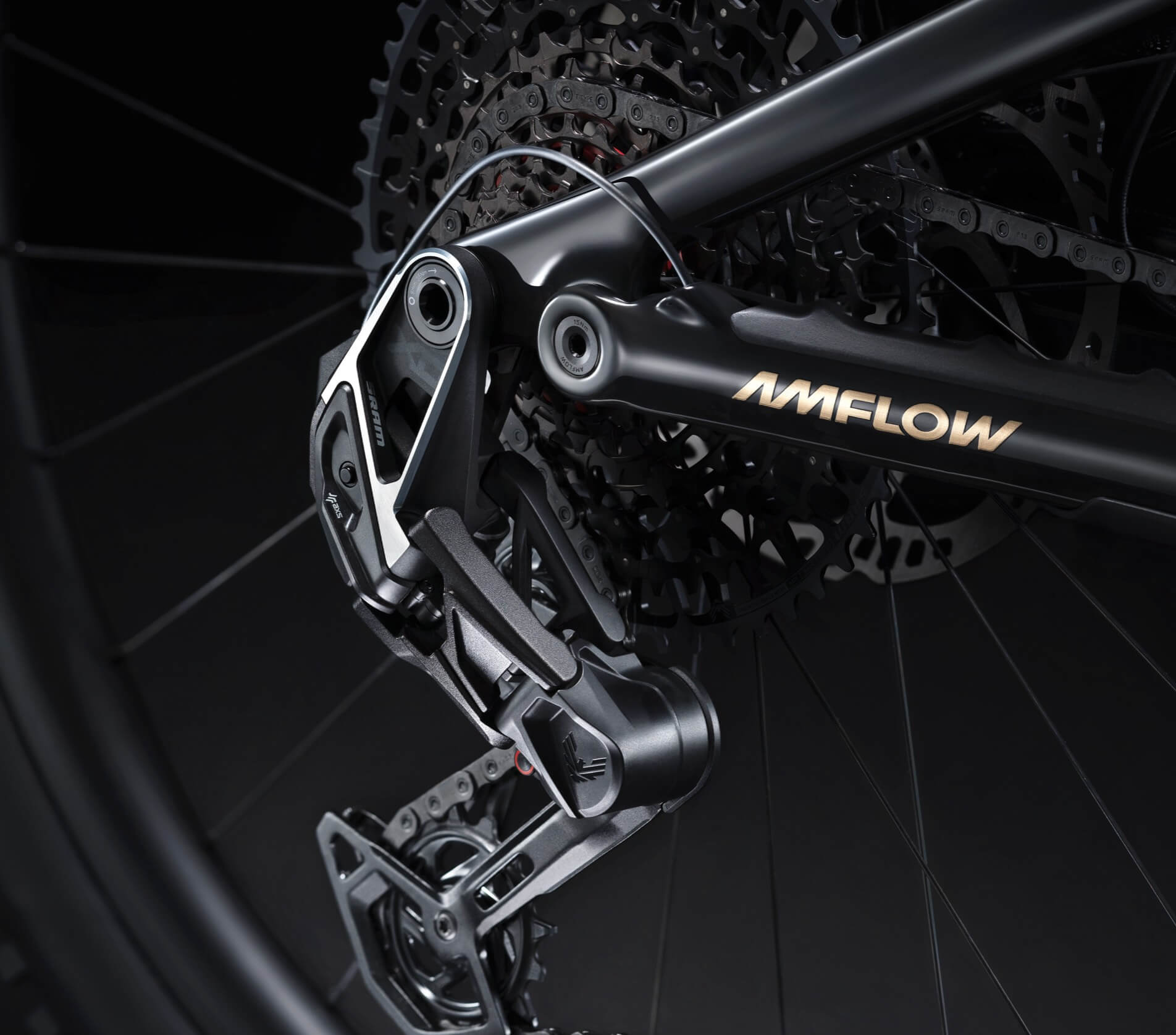

SRAM X0 Eagle Transmission Derailleur w/ power cable
Chainring
SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM X-1295 Eagle Transmission 10-52T
Chain
SRAM X0 Eagle Transmission Flattop Chain
Crankset
DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Wheels and tyres
Wheels
Amflow HMC-30
Rims
Carbon, 29", 30mm internal width, 28H, tubeless ready
Spokes
SAPIM E-Light Straightpull
Front Hub
Alloy, 2 sealed cartridge bearings, 15x110mm thru-axle, 28H, straight-pull, 6-bolt
Rear Hub
Alloy, 4 sealed cartridge bearings, 148x12mm thru-axle, 28H, straight-pull, 6-bolt, 78T
Front Tyre
Maxxis Assegai MaxxTerra 29x2.5" WT 3C EXO E-25 TLR
Rear Tyre
Maxxis Dissector MaxxTerra 29x2.4" WT 3C EXO+ E-25 TLR
Cockpit and contact points
Handlebar
Amflow Enduro Carbon Handlebar
Handlebar Details
25mm rise, 800mm wide; 5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grips
Stem
Amflow Enduro Stem, One-piece CNC
Stem Length
35mm
Clamping Diameter
35mm
Saddle
Ergon SM PRO M/L
Included equipment
Quick Start Guide
Quick Start Guide
Torque Wrench
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Lights
Front and Rear Lights
Product details
Seatpost
Fox Transfer Factory, travel adjustable in 5mm
Specifications are supplied by Amflow and may change without notice. Contact us if you would like us to confirm the current build before ordering.
