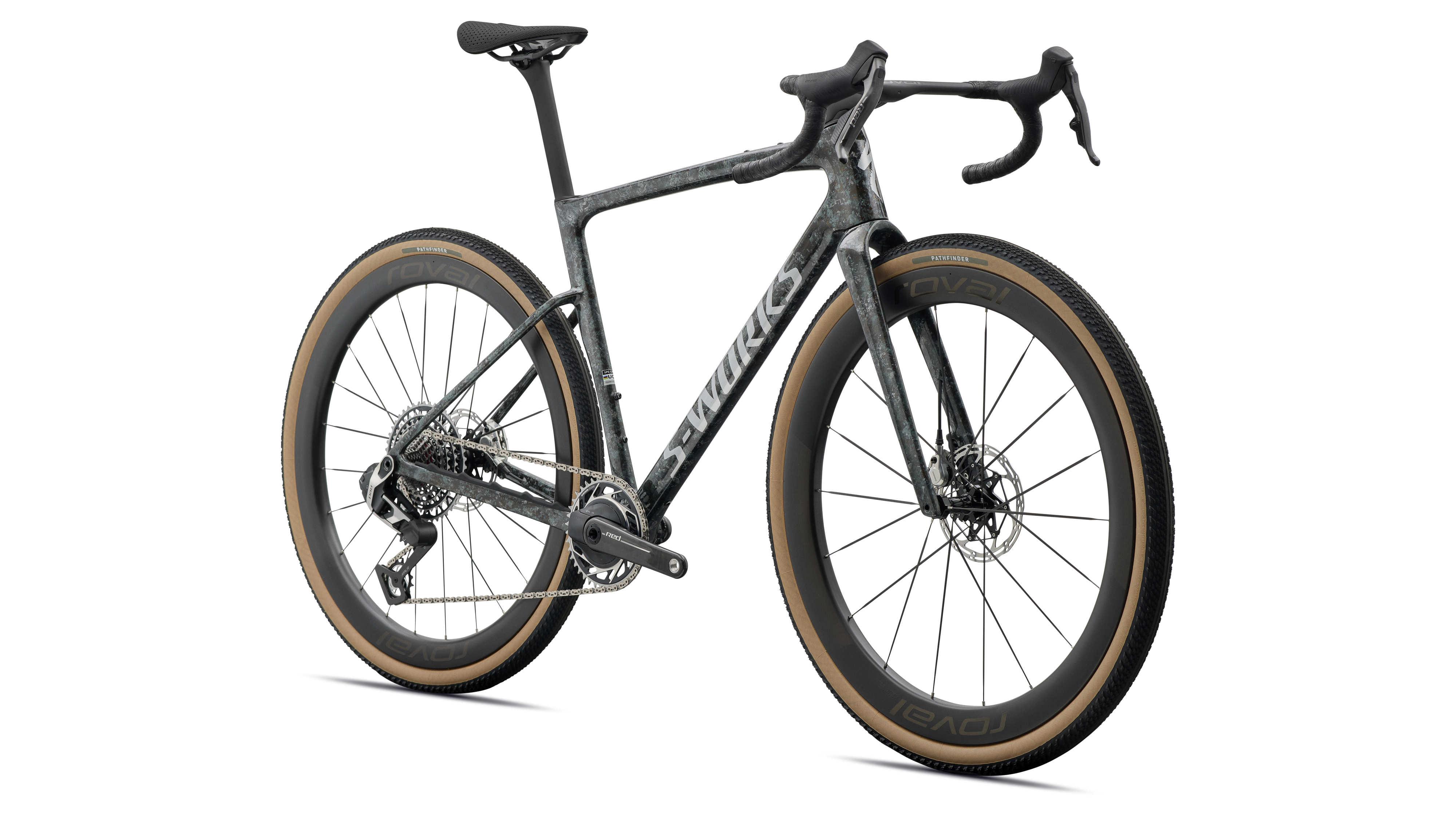

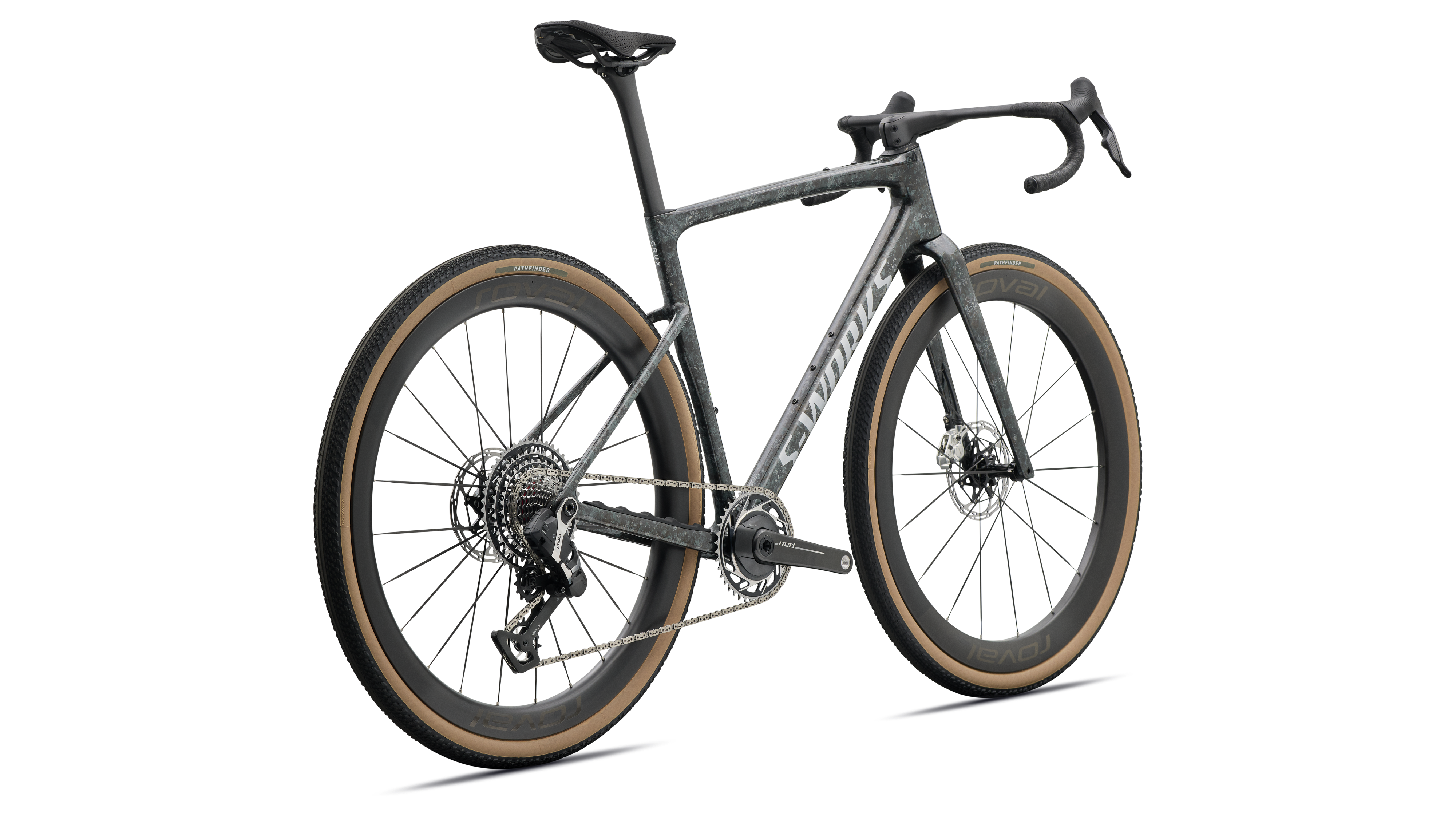

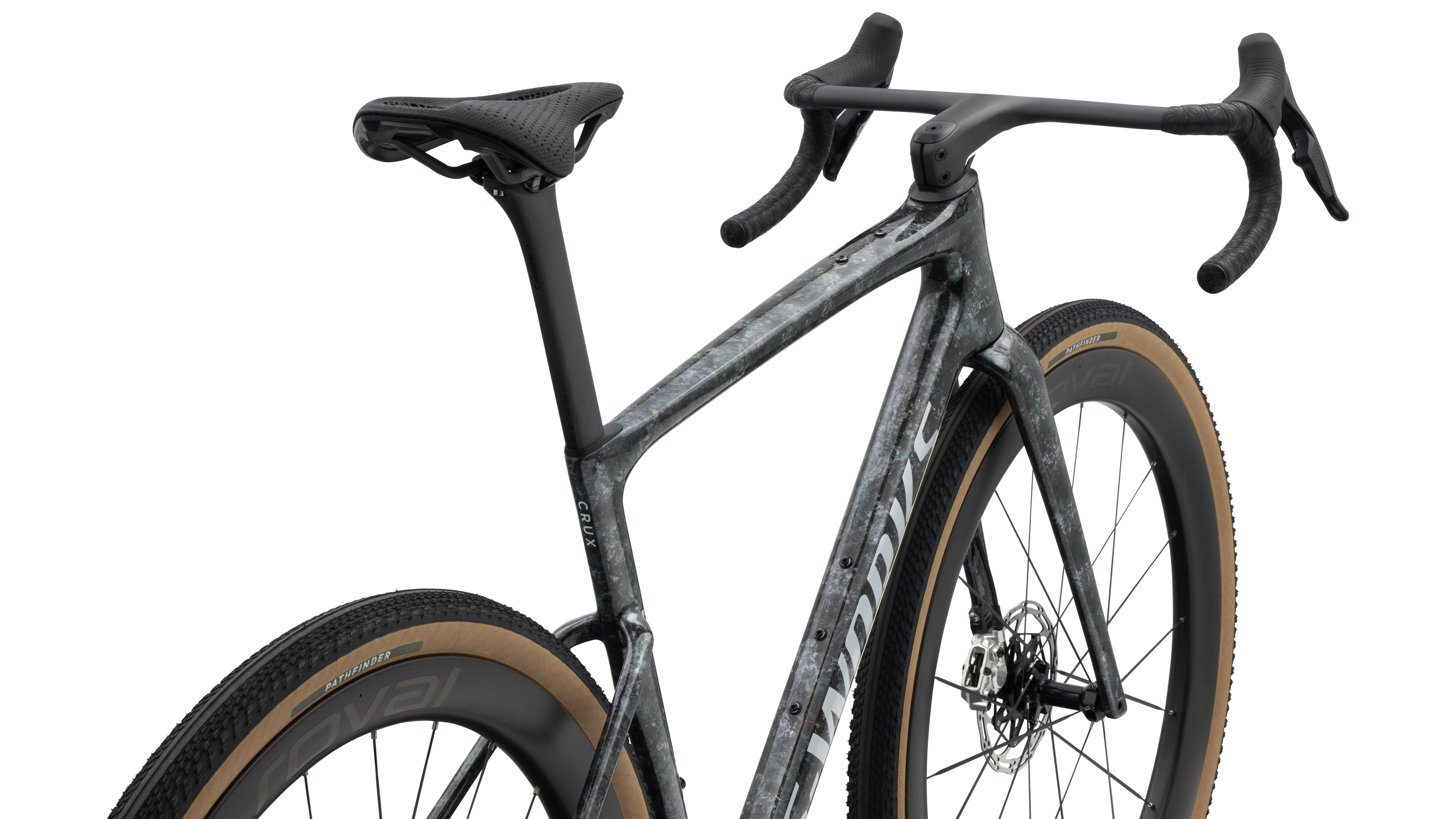

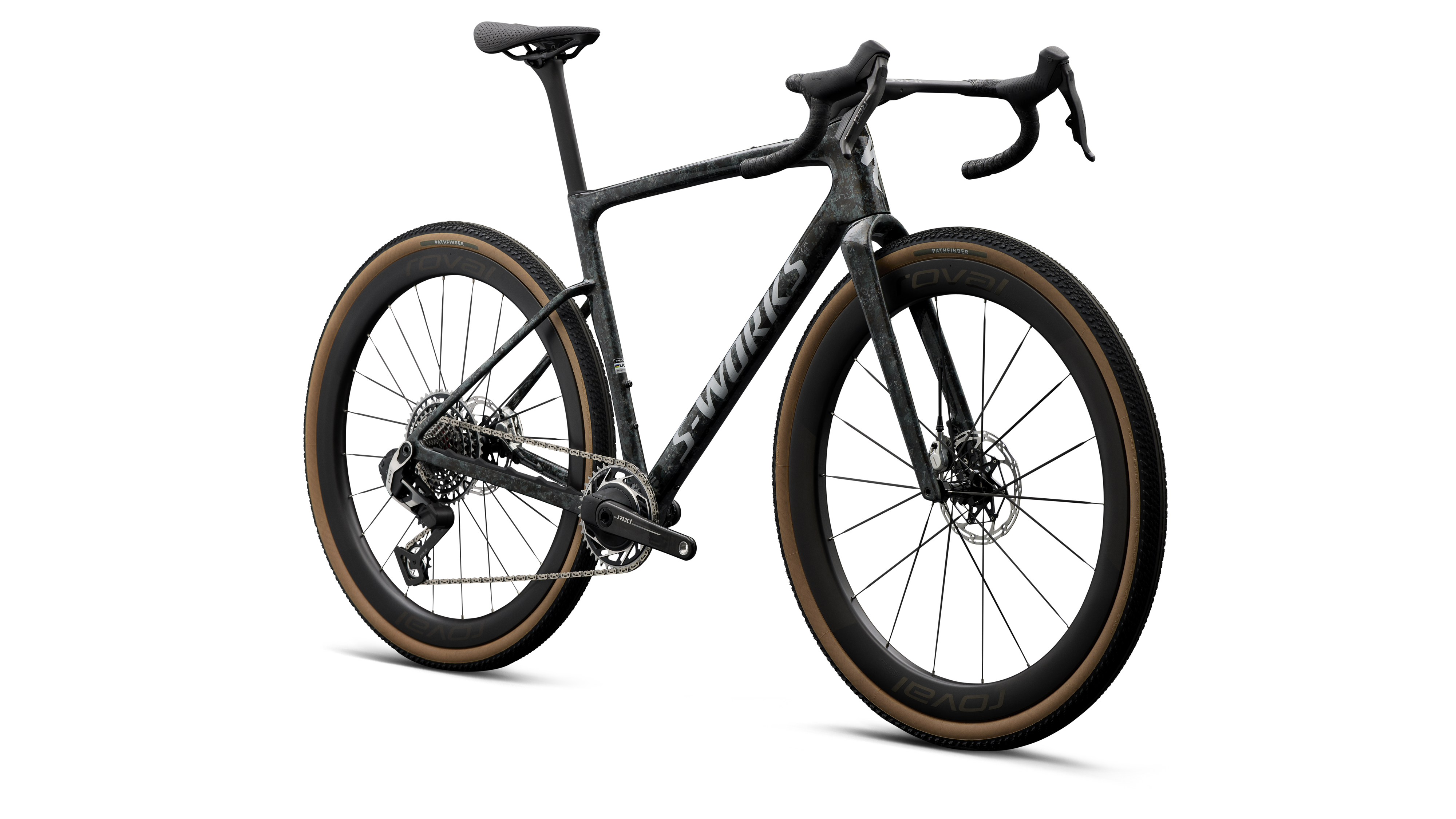

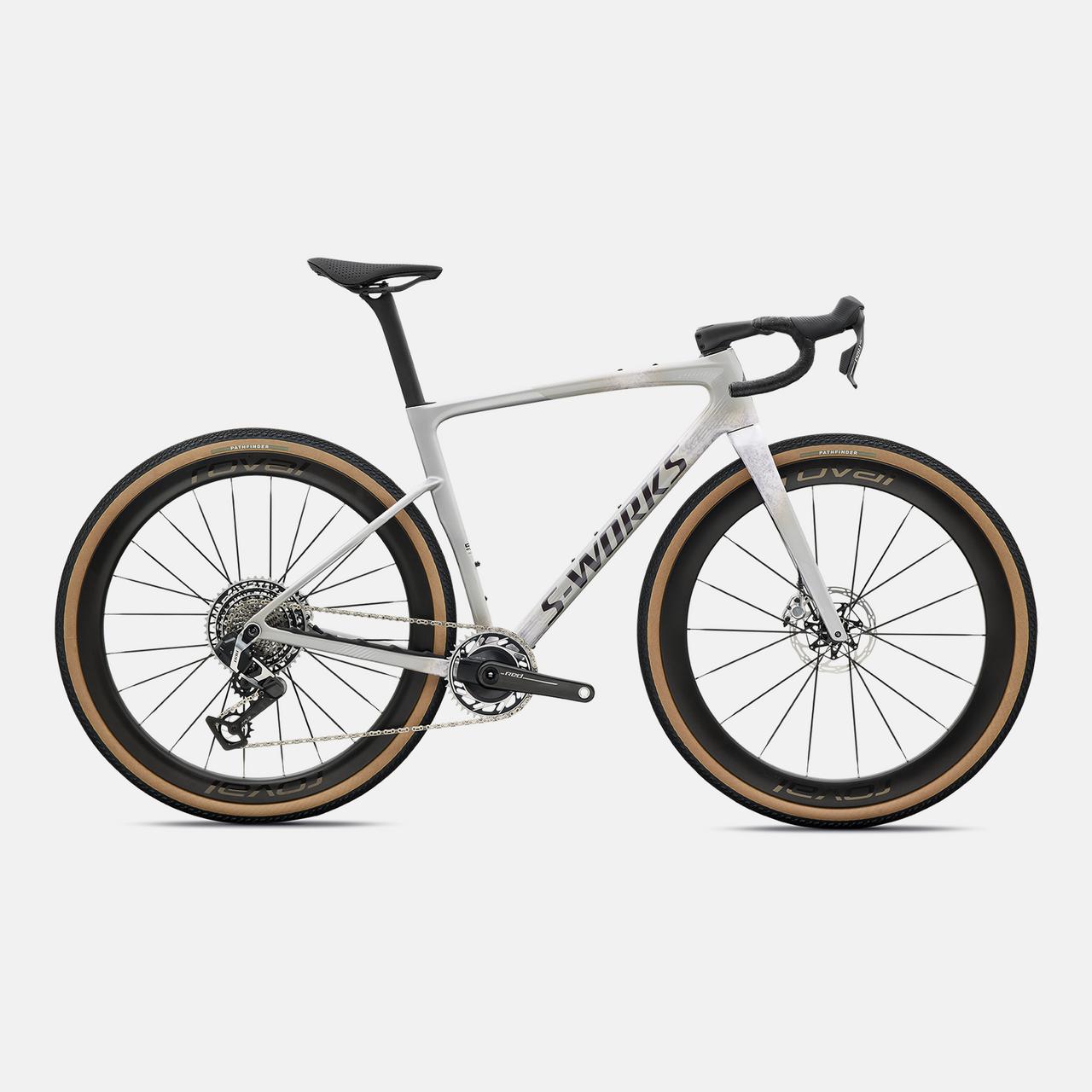

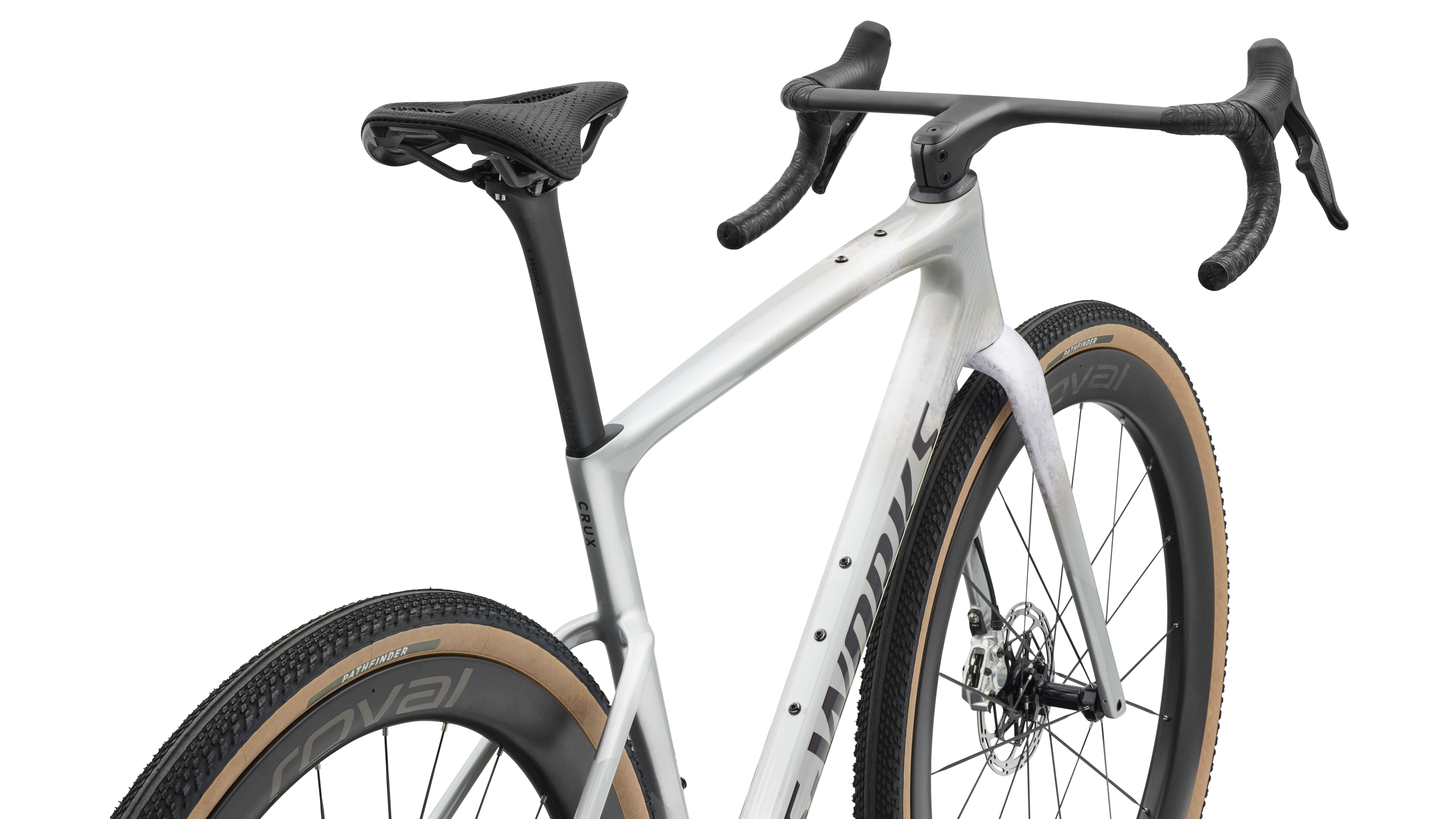

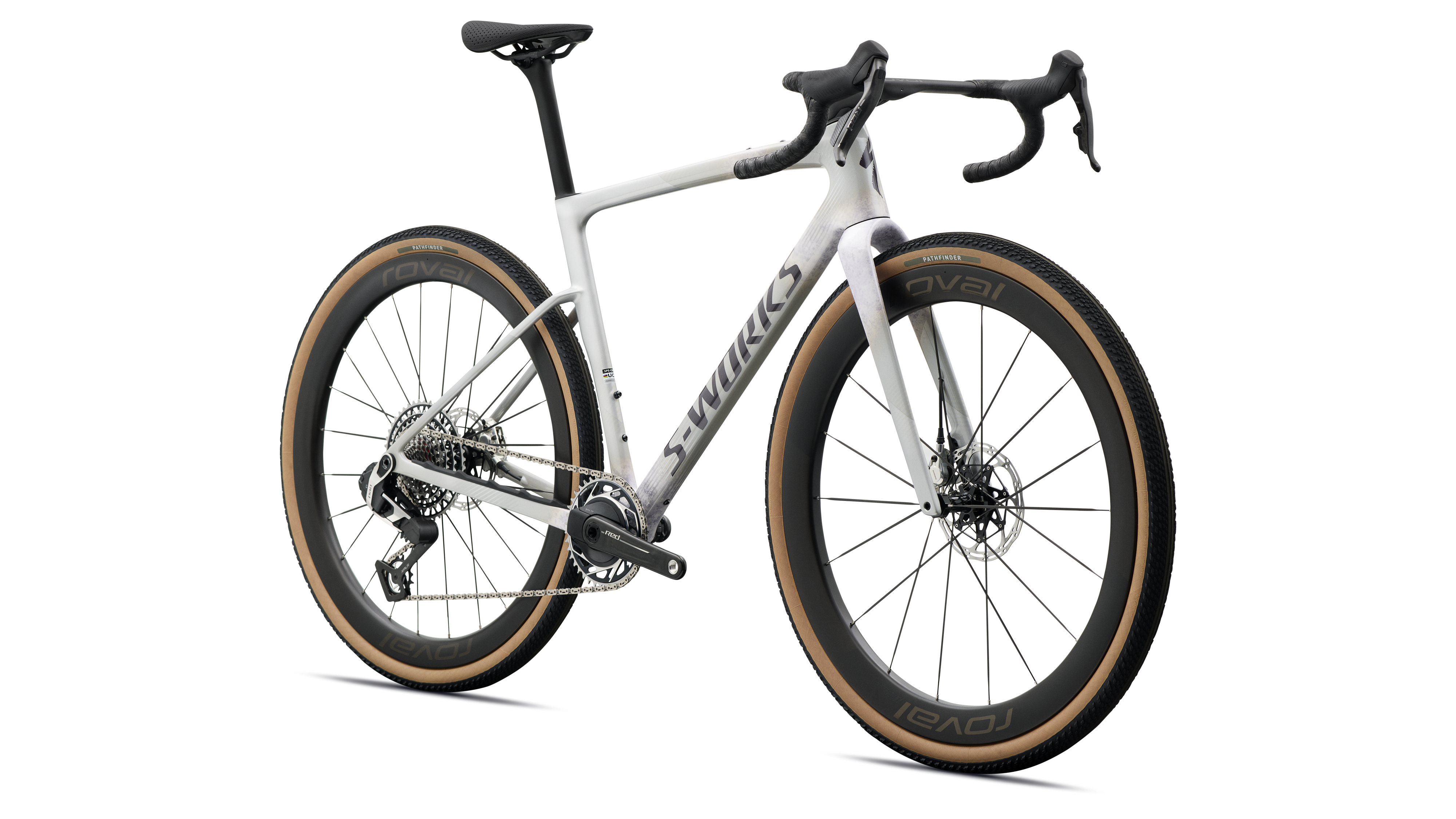

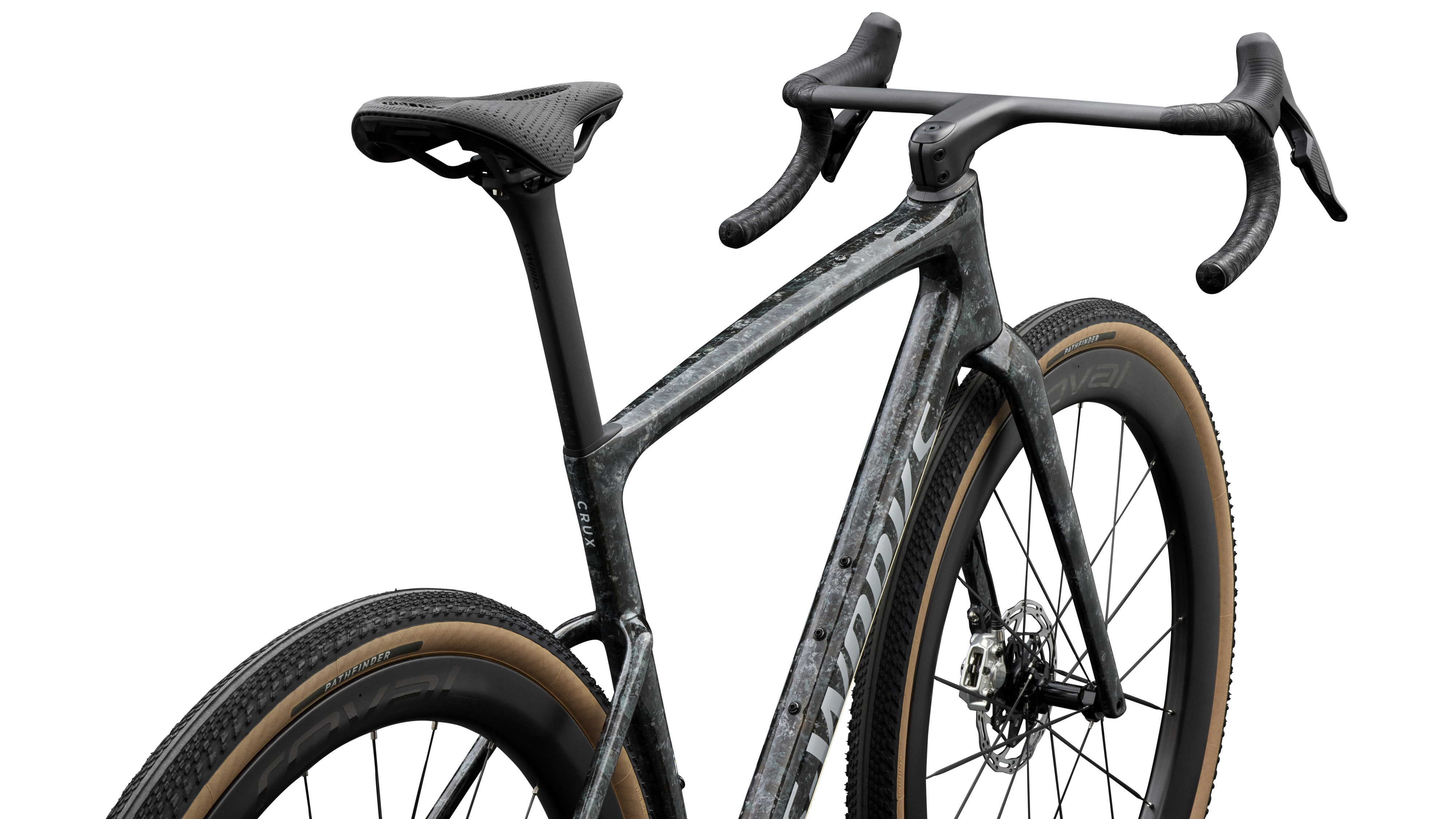

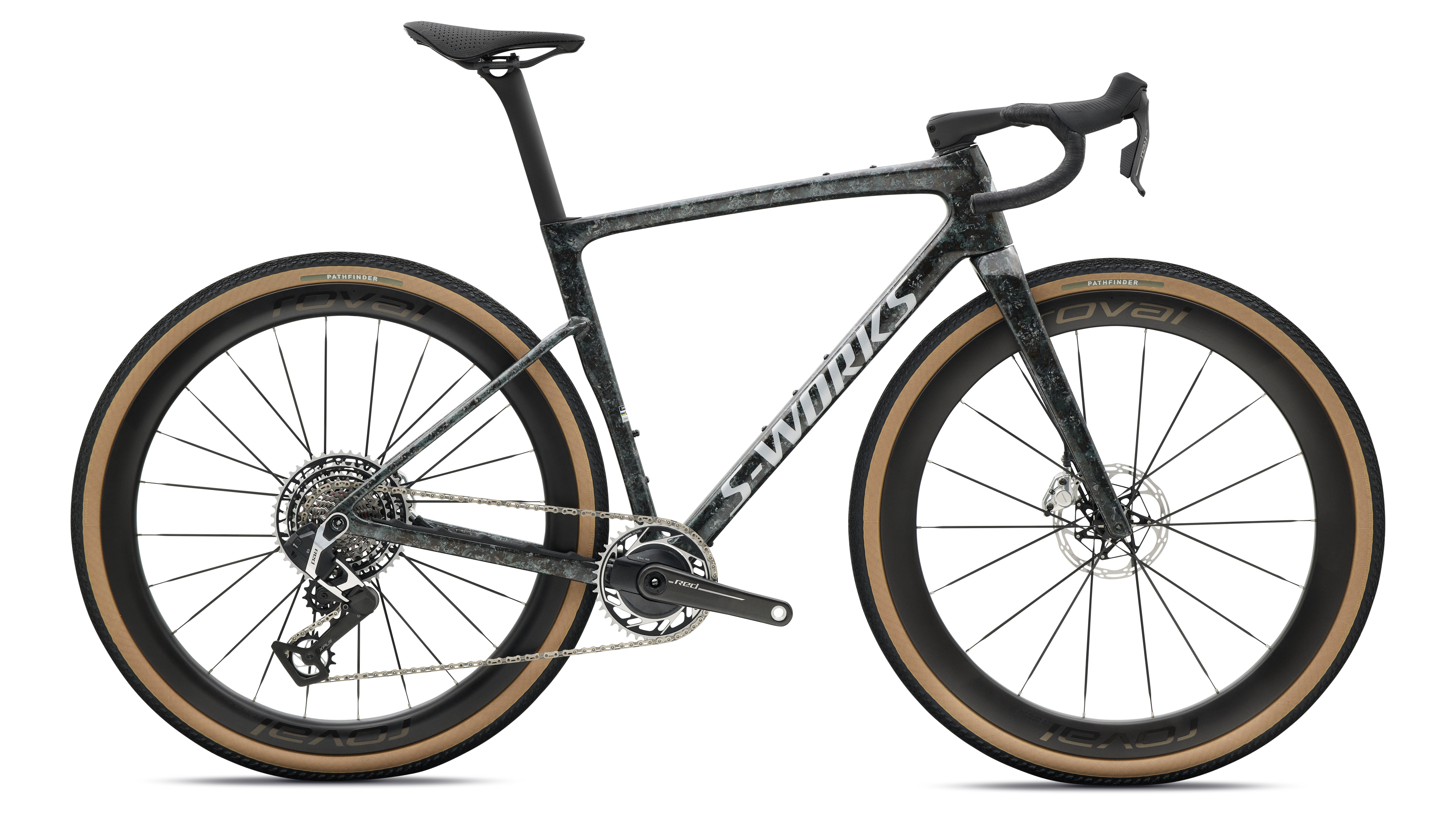

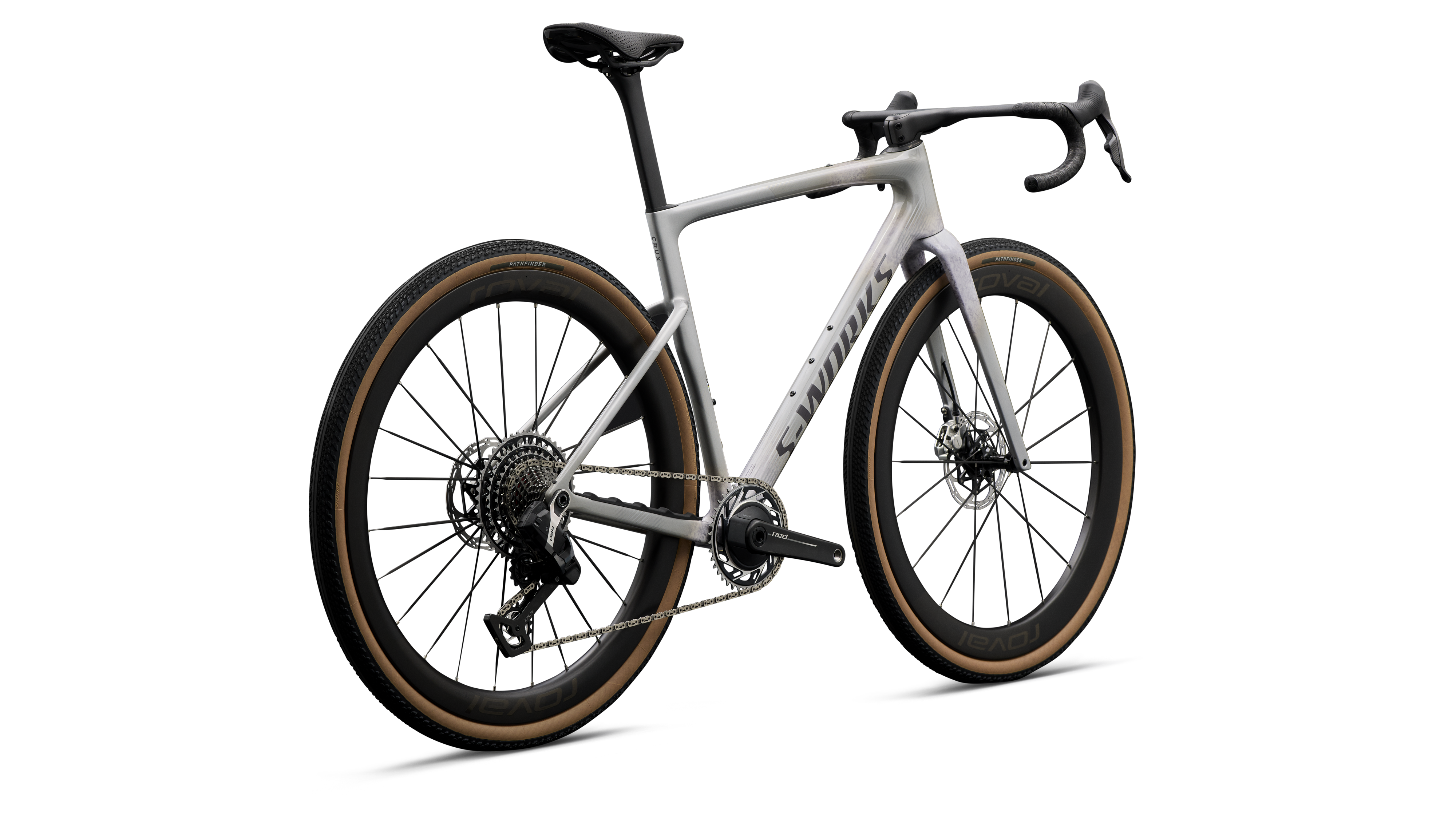

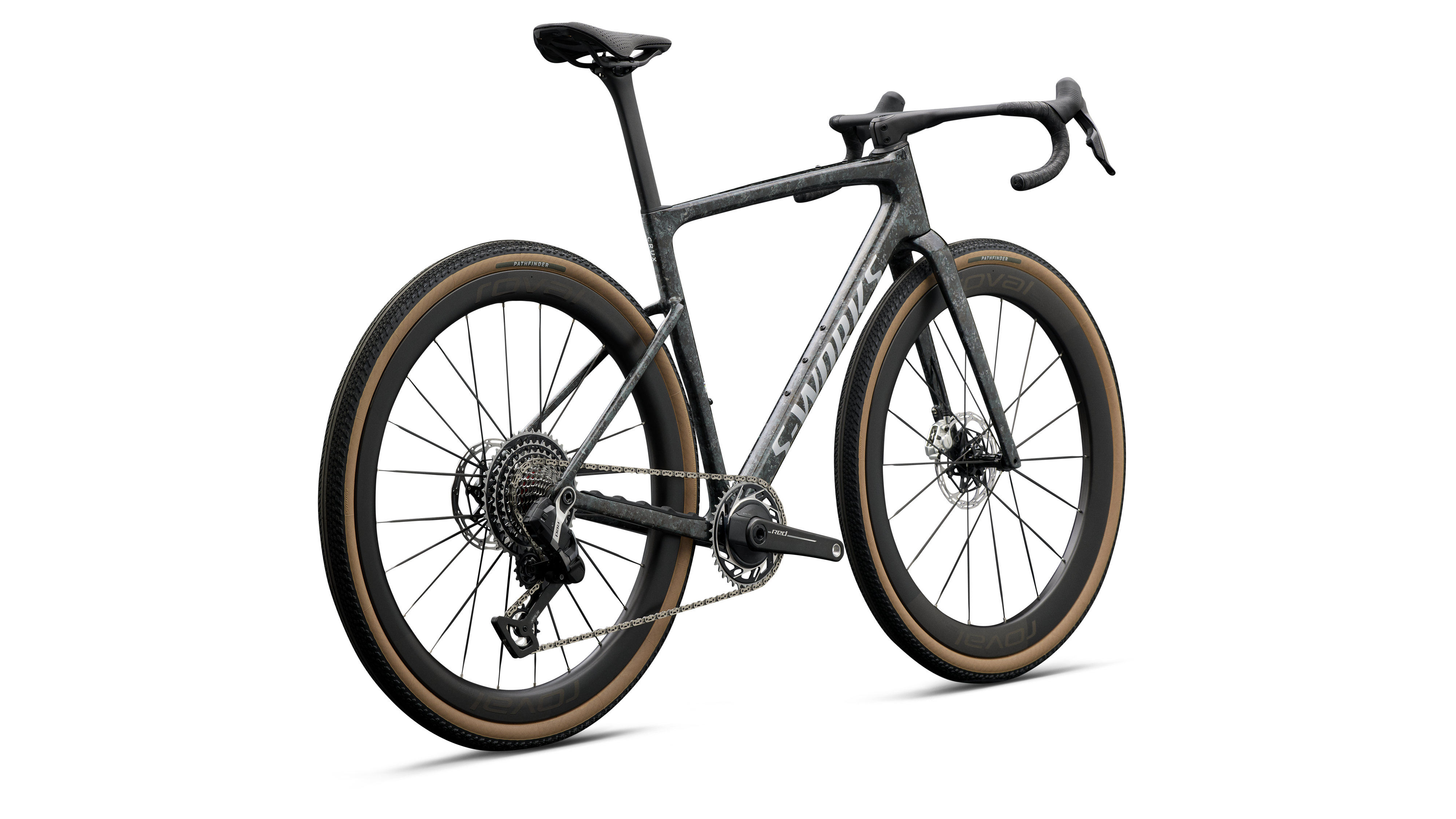

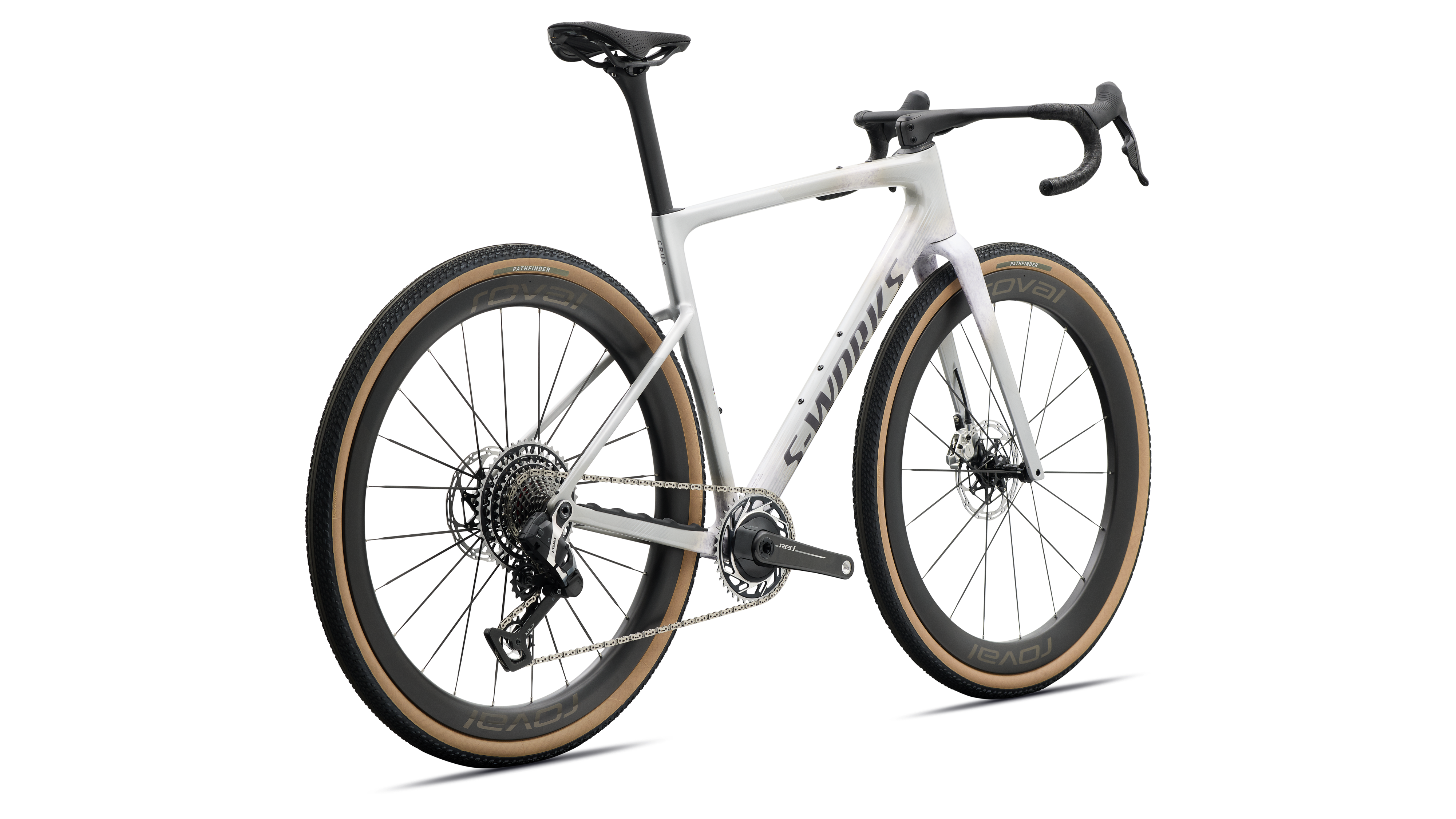

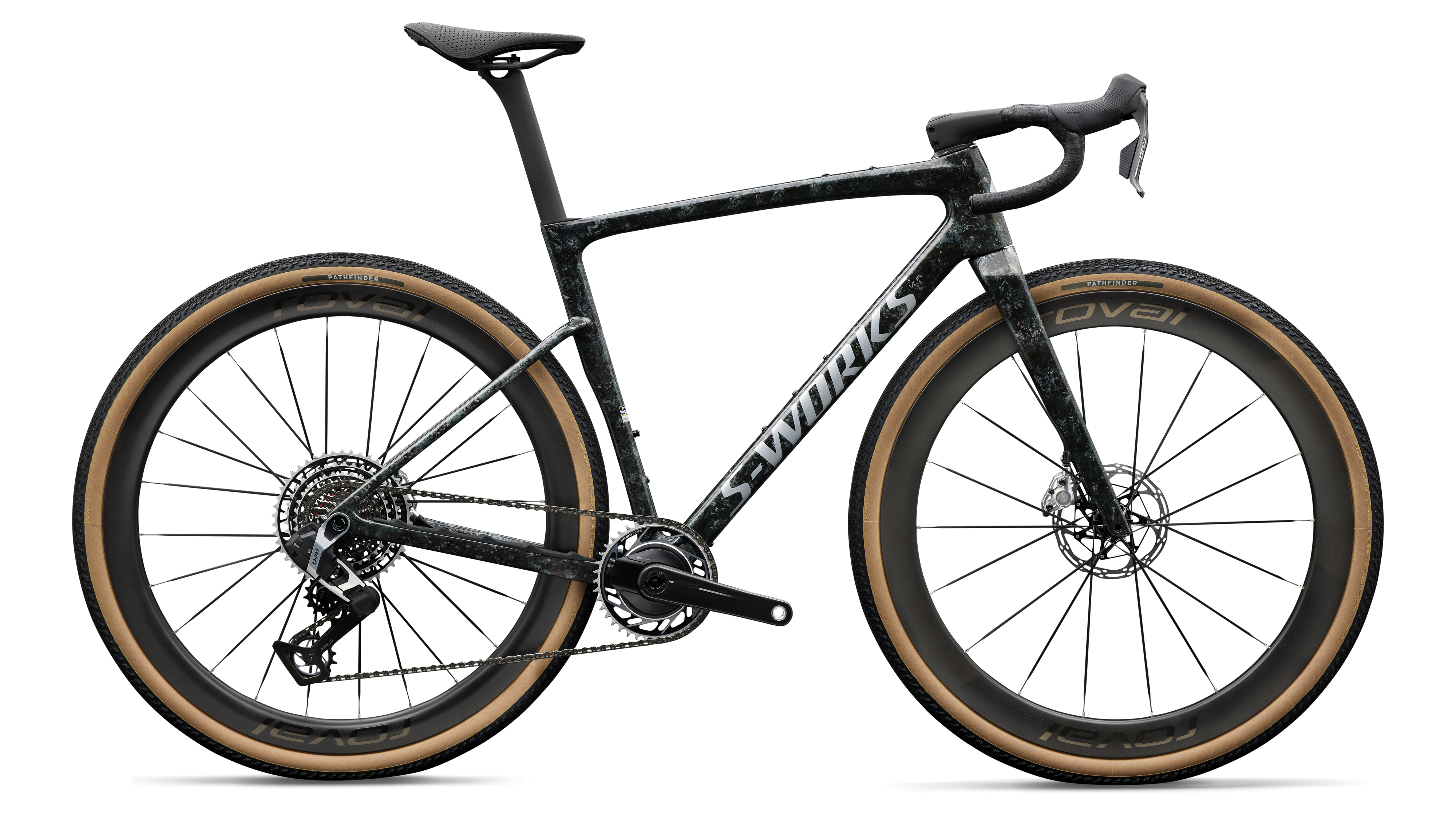

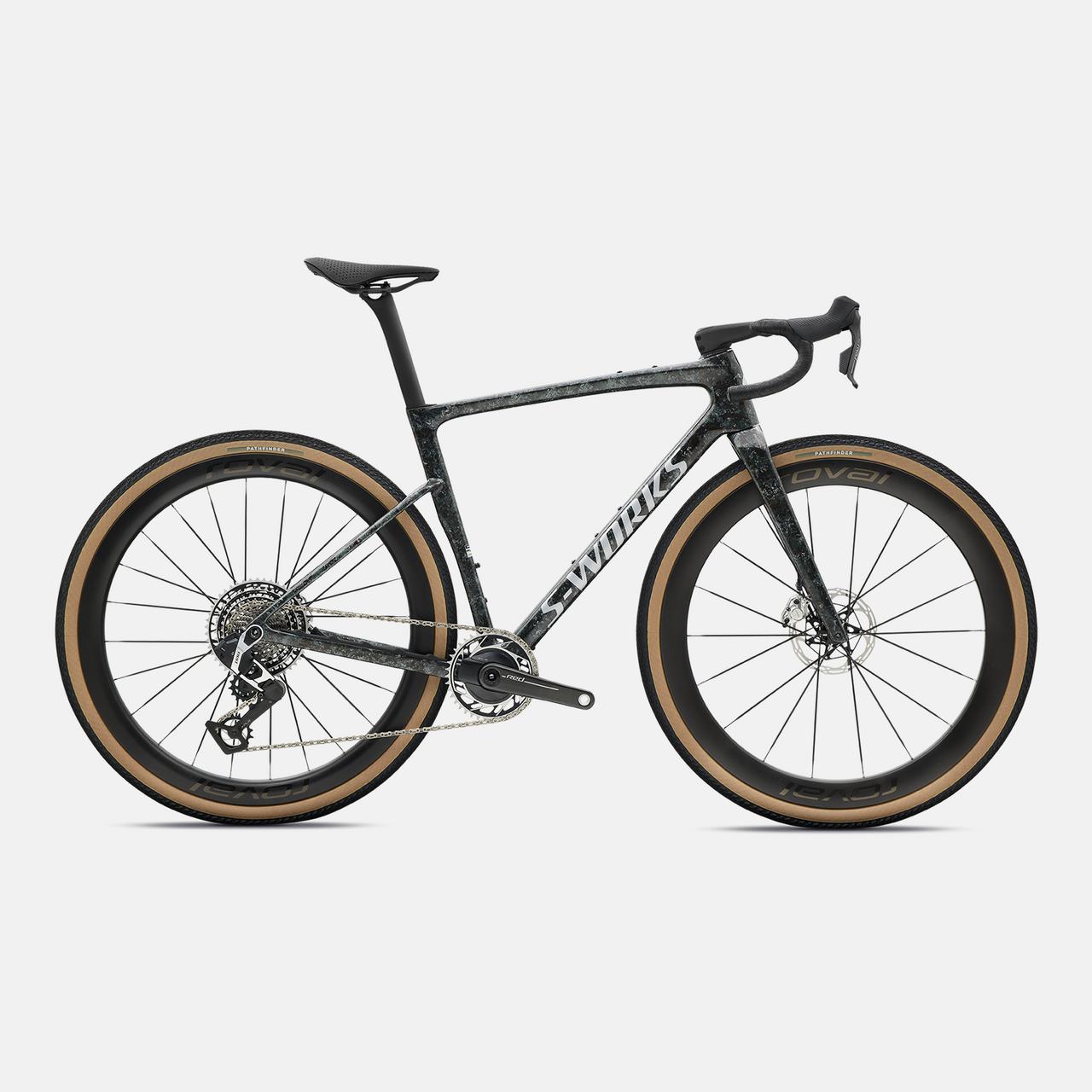

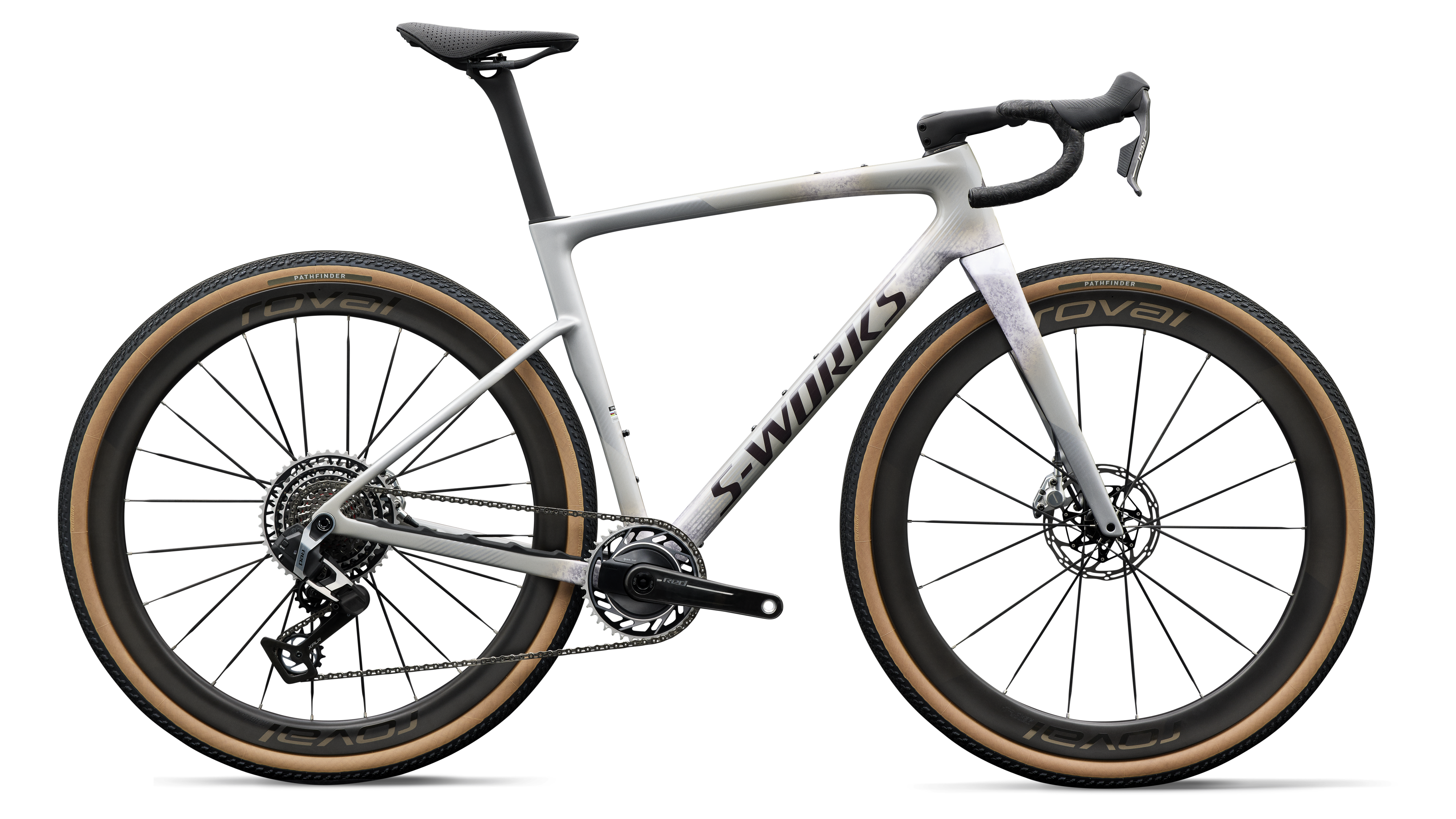

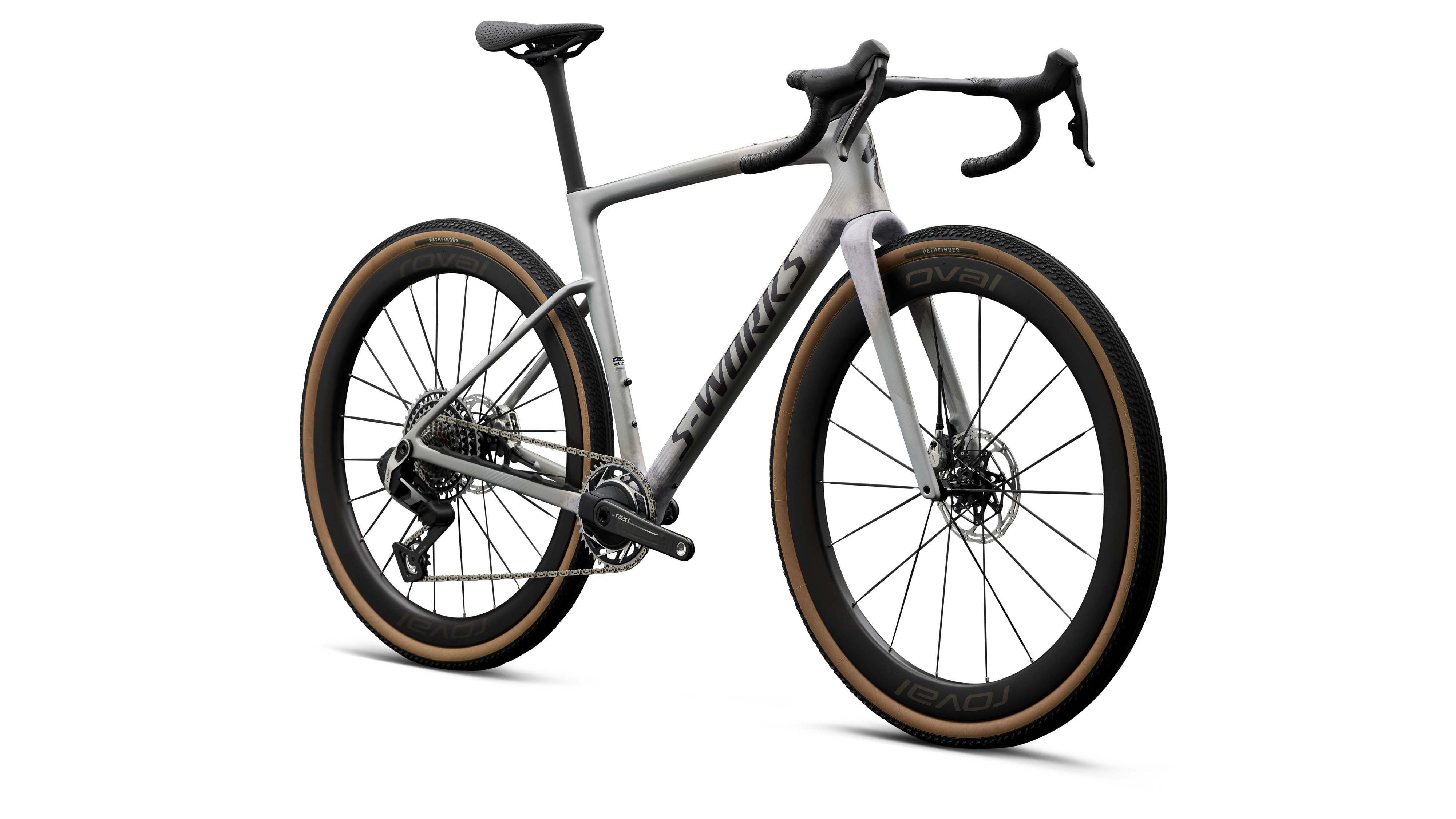

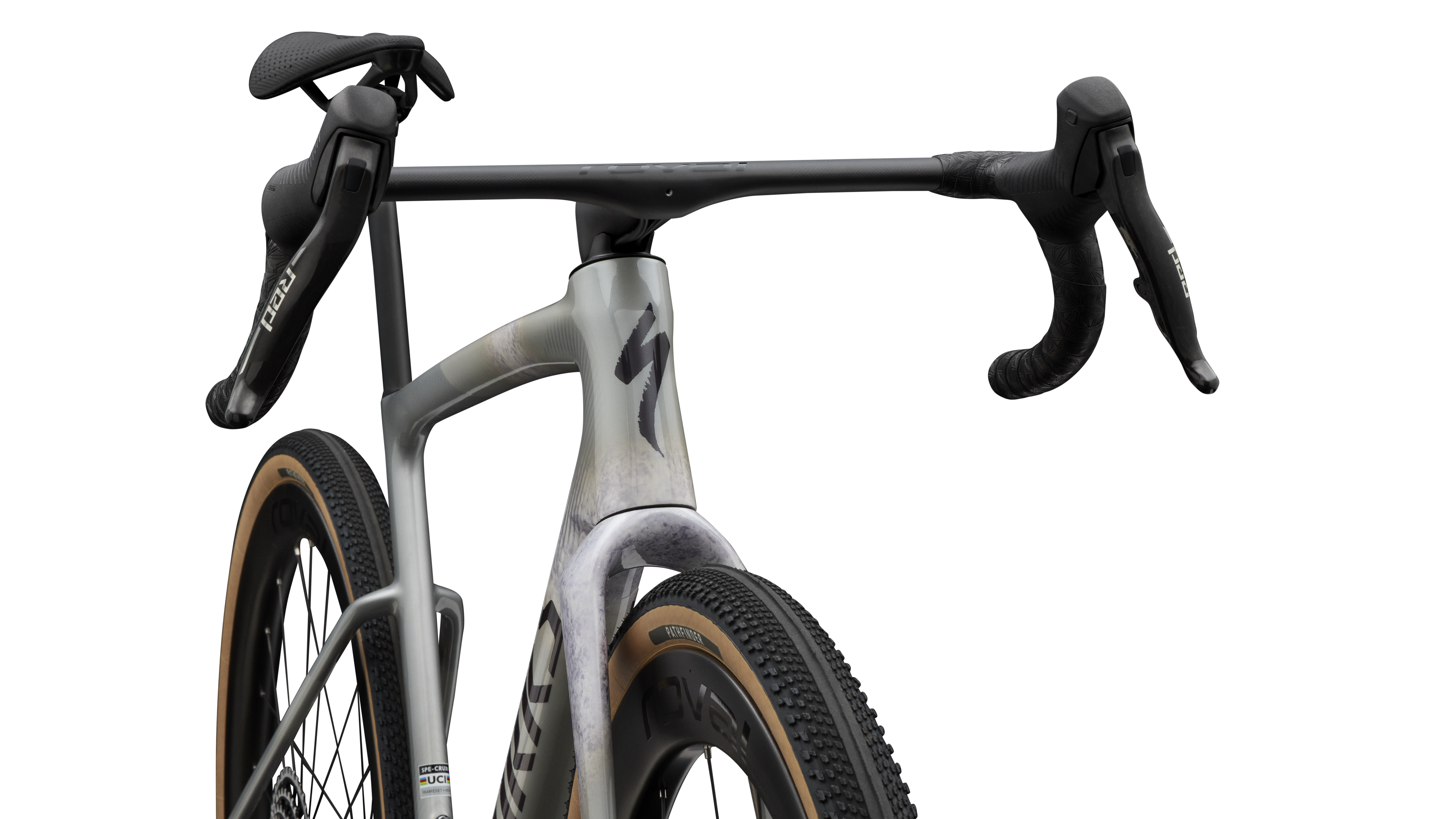

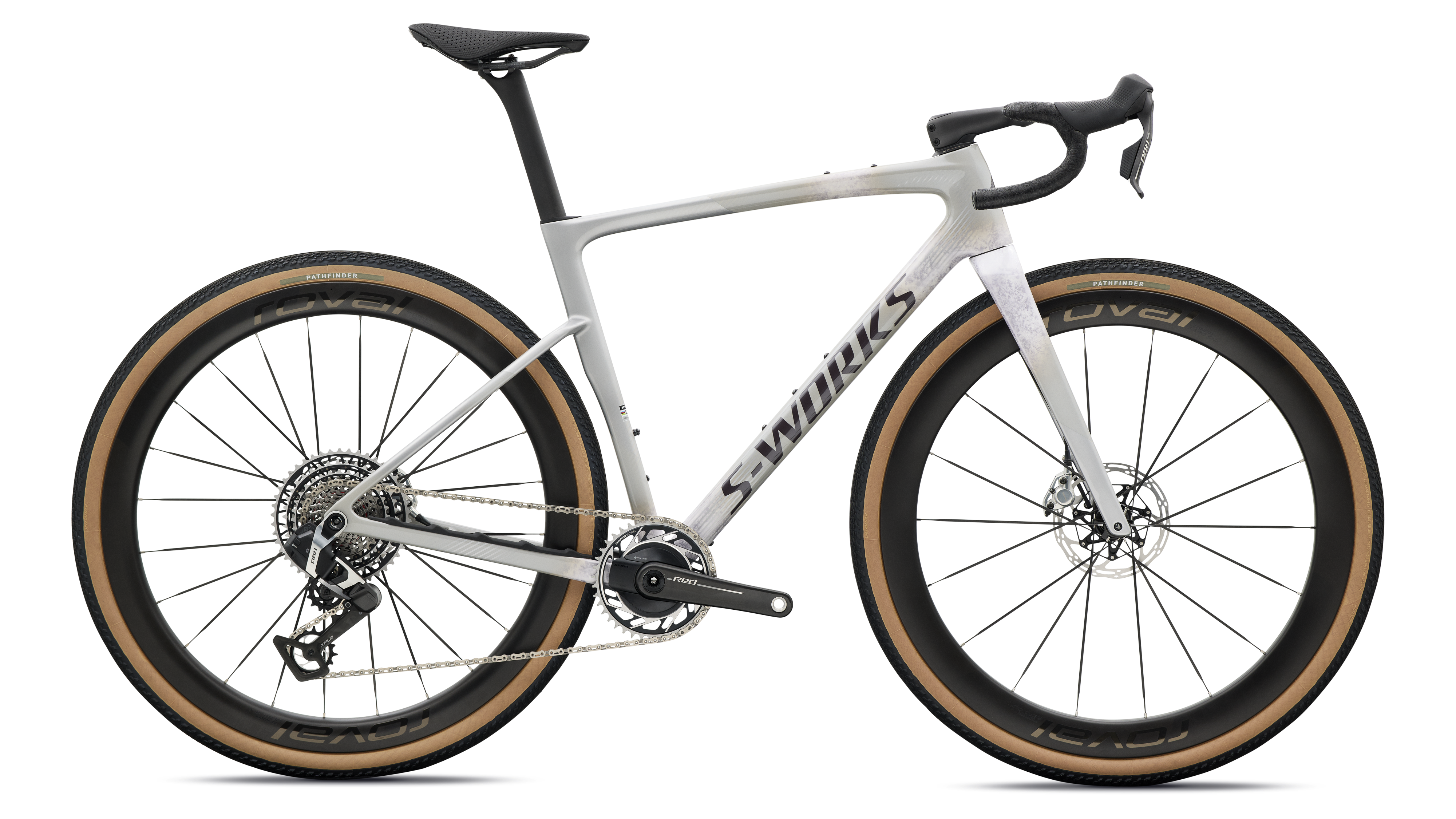

S-Works Crux 5 - SRAM RED XPLR
Light, fast and ready for gravel
The S-Works Crux 5 is the fastest gravel race bike ever made. Not just because it's the lightest. Not just because it's our most aero. Not just because it handles dirt like a Tarmac handles pavement.
Best for: Fast gravel riding, mixed-surface racing and lightweight all-road adventures.
At a glance
Frame

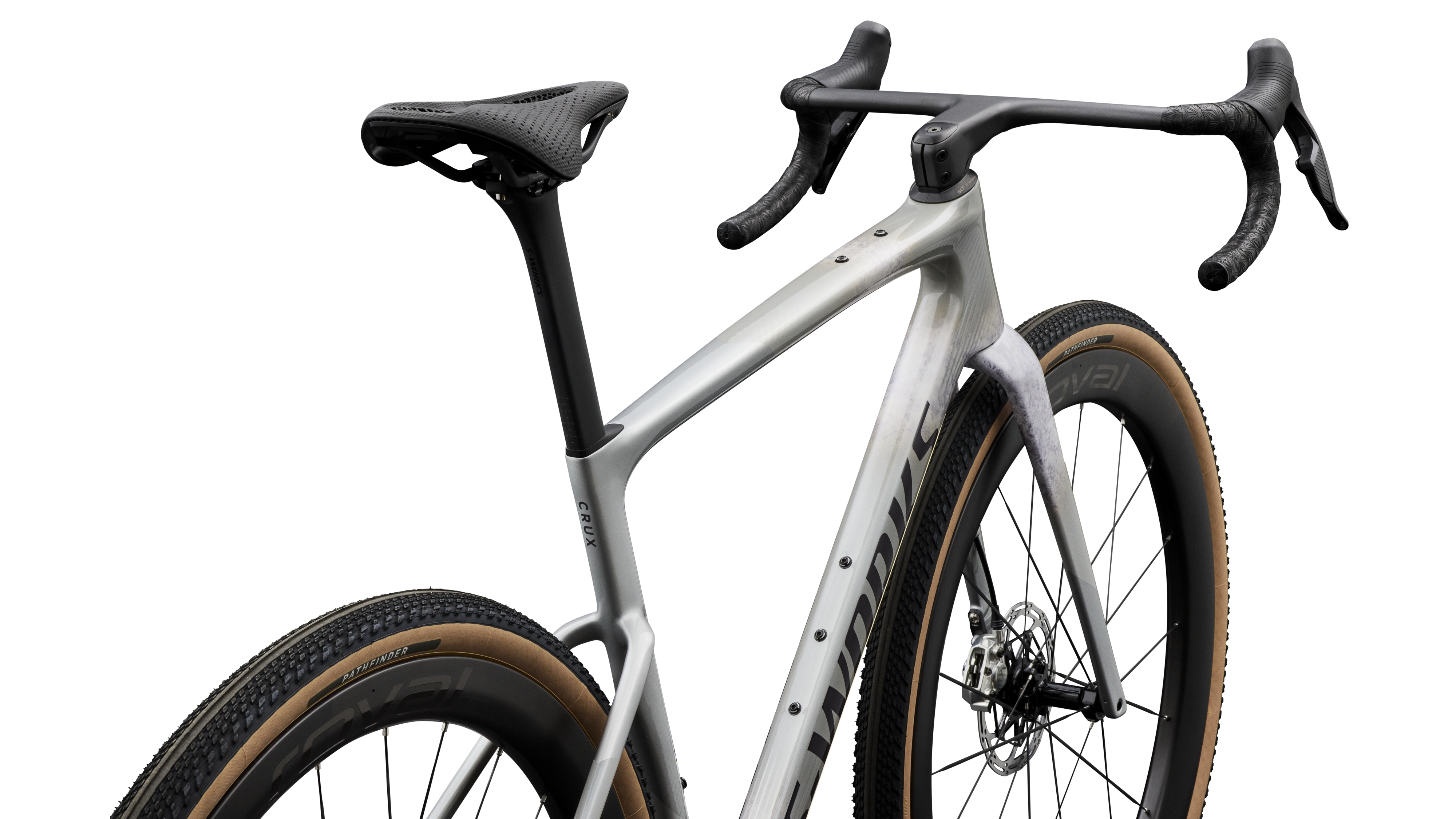

S-Works Crux 5 FACT 12r Carbon, Rider First Engineered, threaded BB…
Drivetrain
SRAM RED AXS XPLR E1, 13-speed
Wheels
Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth…
Cockpit
Roval Terra Integrated Cockpit
Brakes
SRAM RED E1, hydraulic disc
Weight
7.1 kg (15 lb 10.4 oz), size 56
Key highlights
A 789-gram Rider First Engineered™ frame — the lightest in the Crux 5 range — built to convert every watt into forward motion on race day.
SRAM's flagship wireless 13-speed gravel groupset with a built-in Quarq power meter, delivering race-precision shifting and braking.

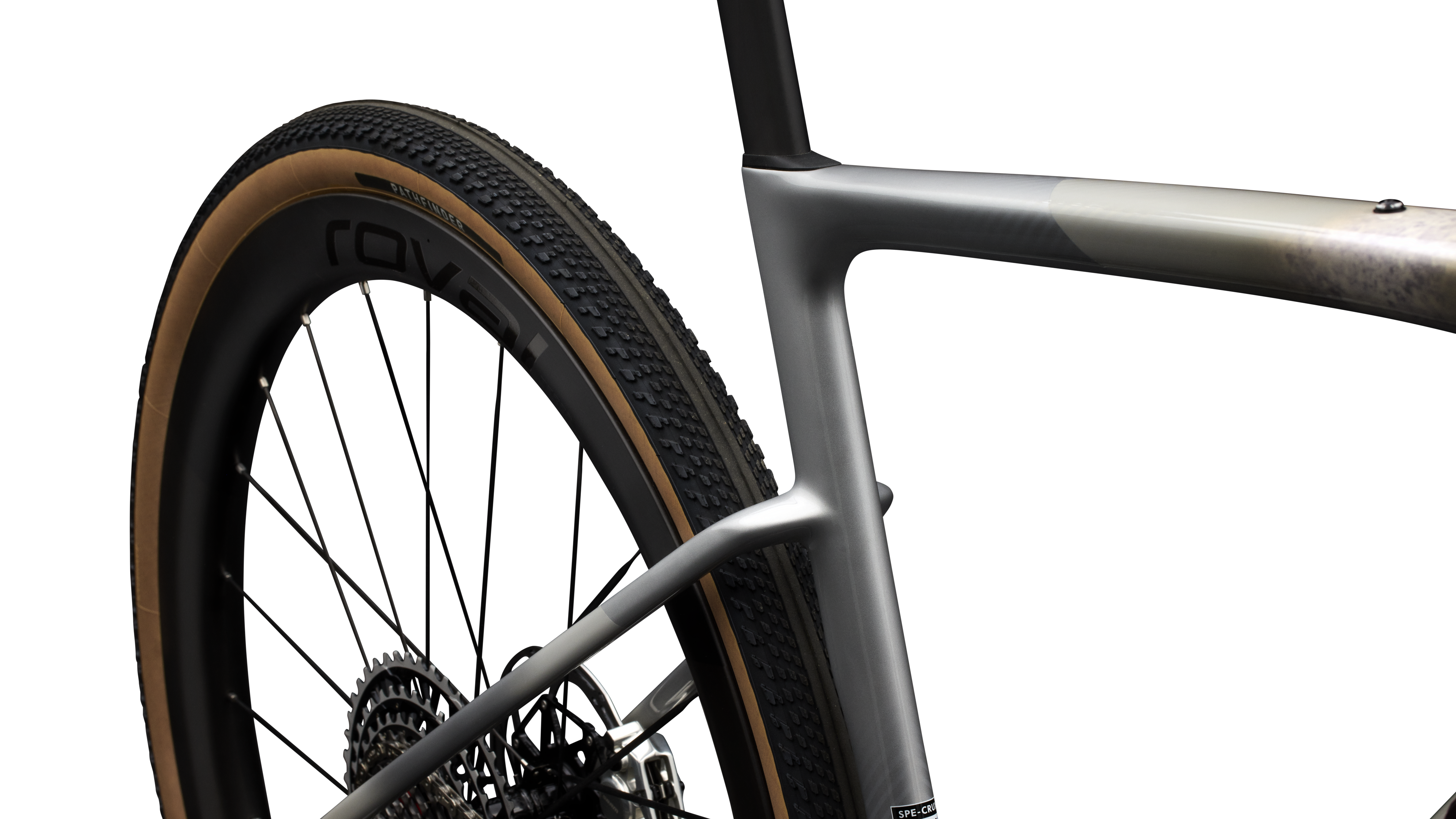

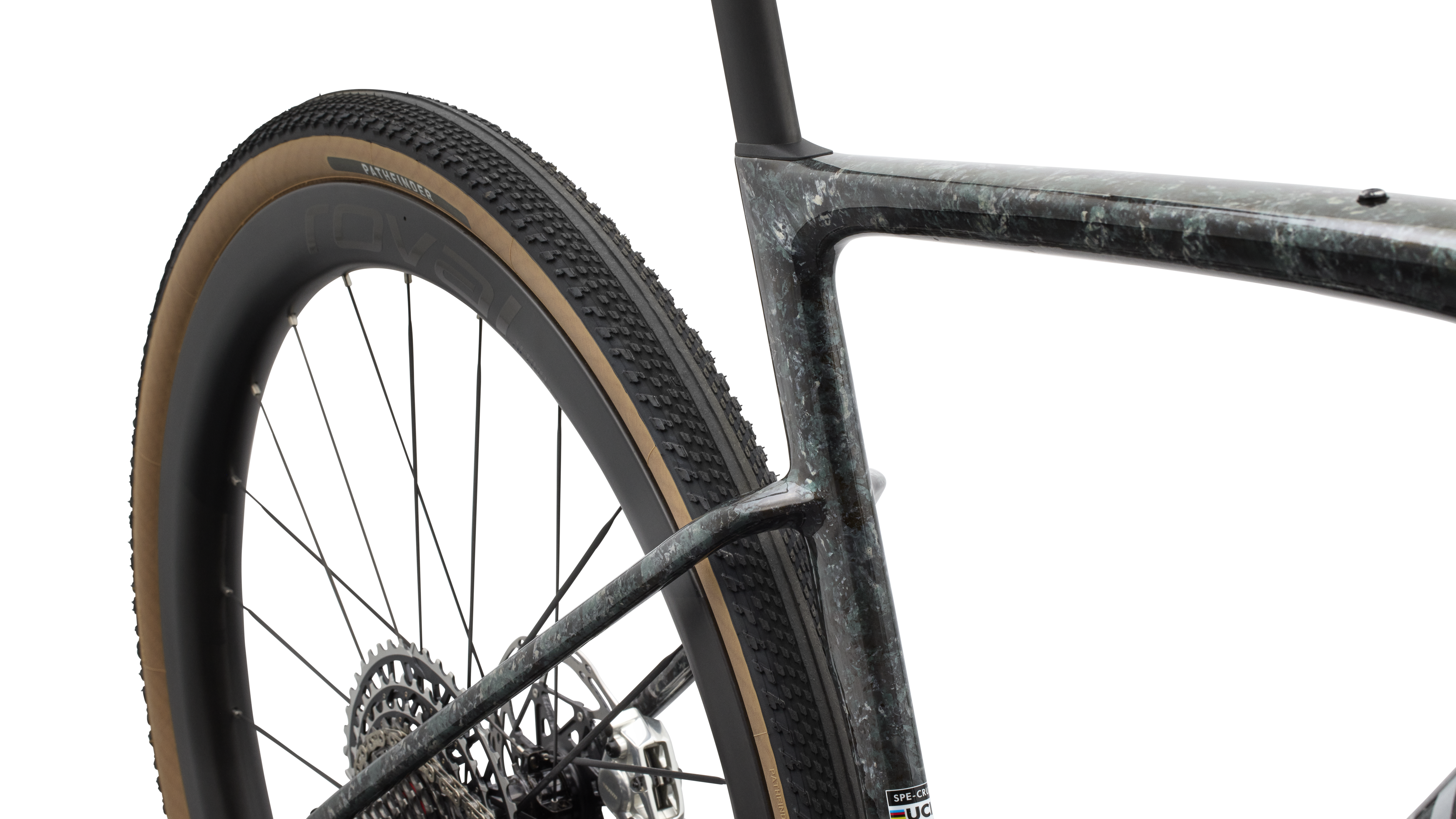

Deep-section, ceramic-bearing carbon wheels (50mm front / 45mm rear) purpose-built for aerodynamic speed on mixed terrain.

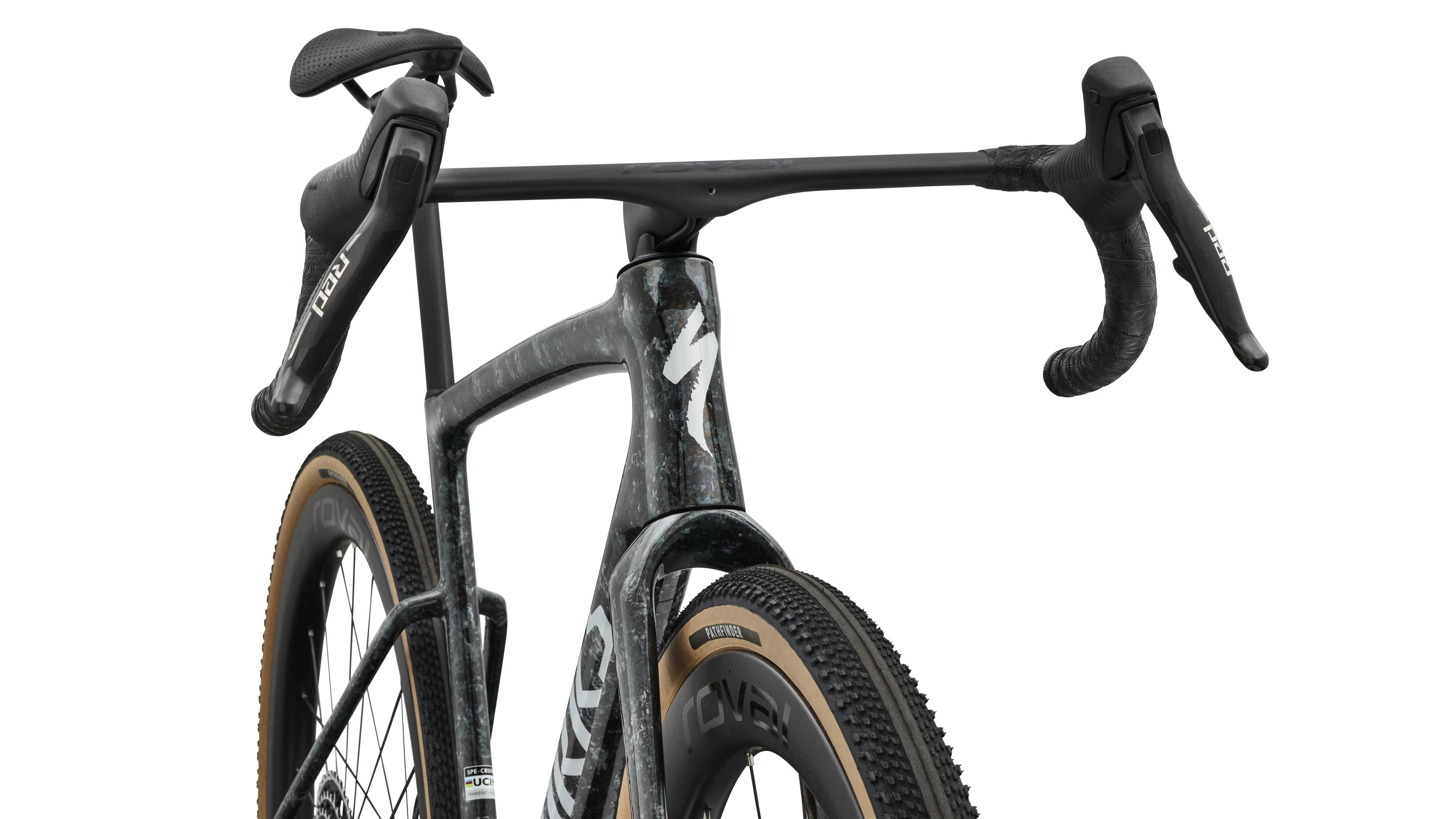

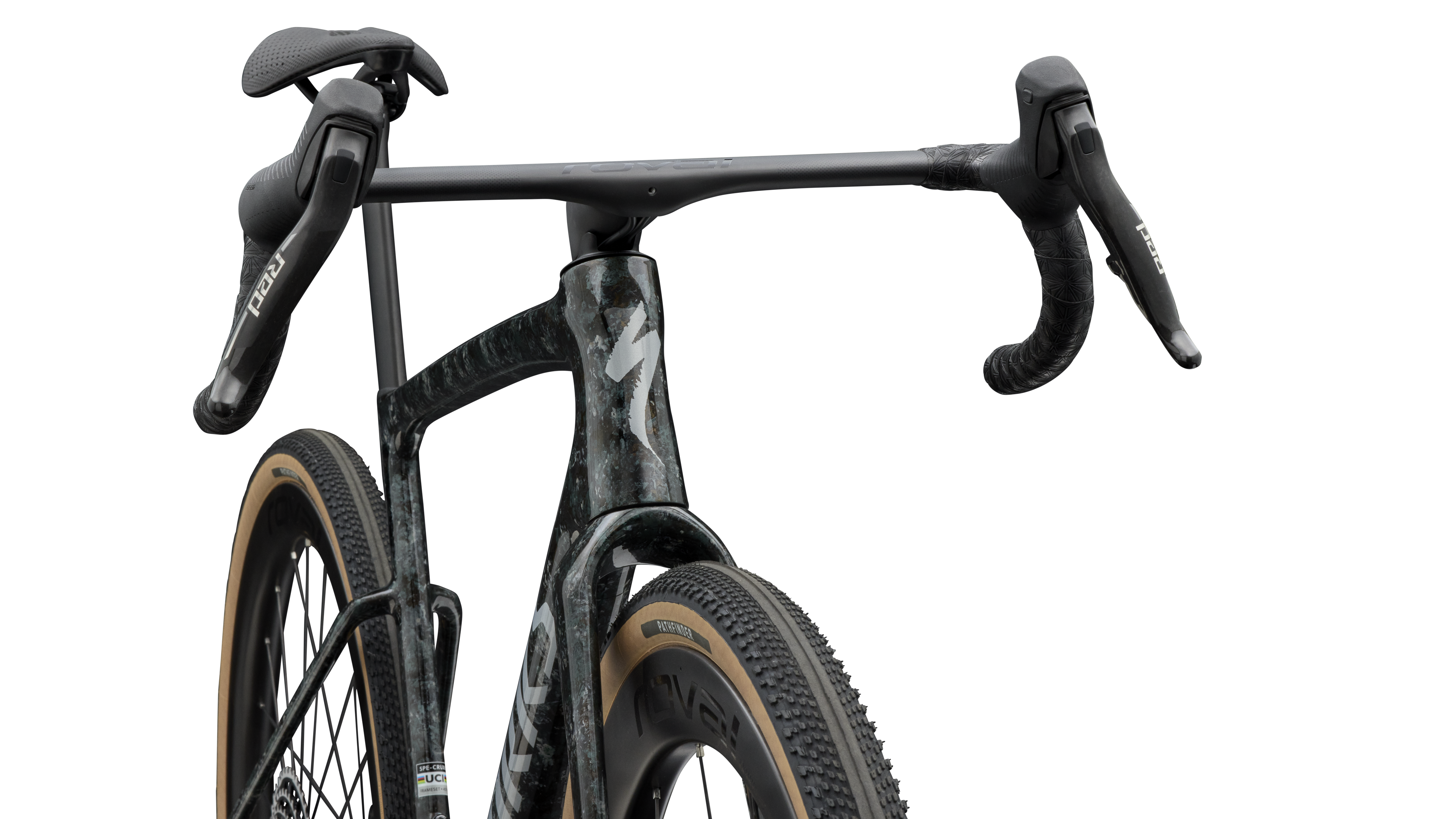

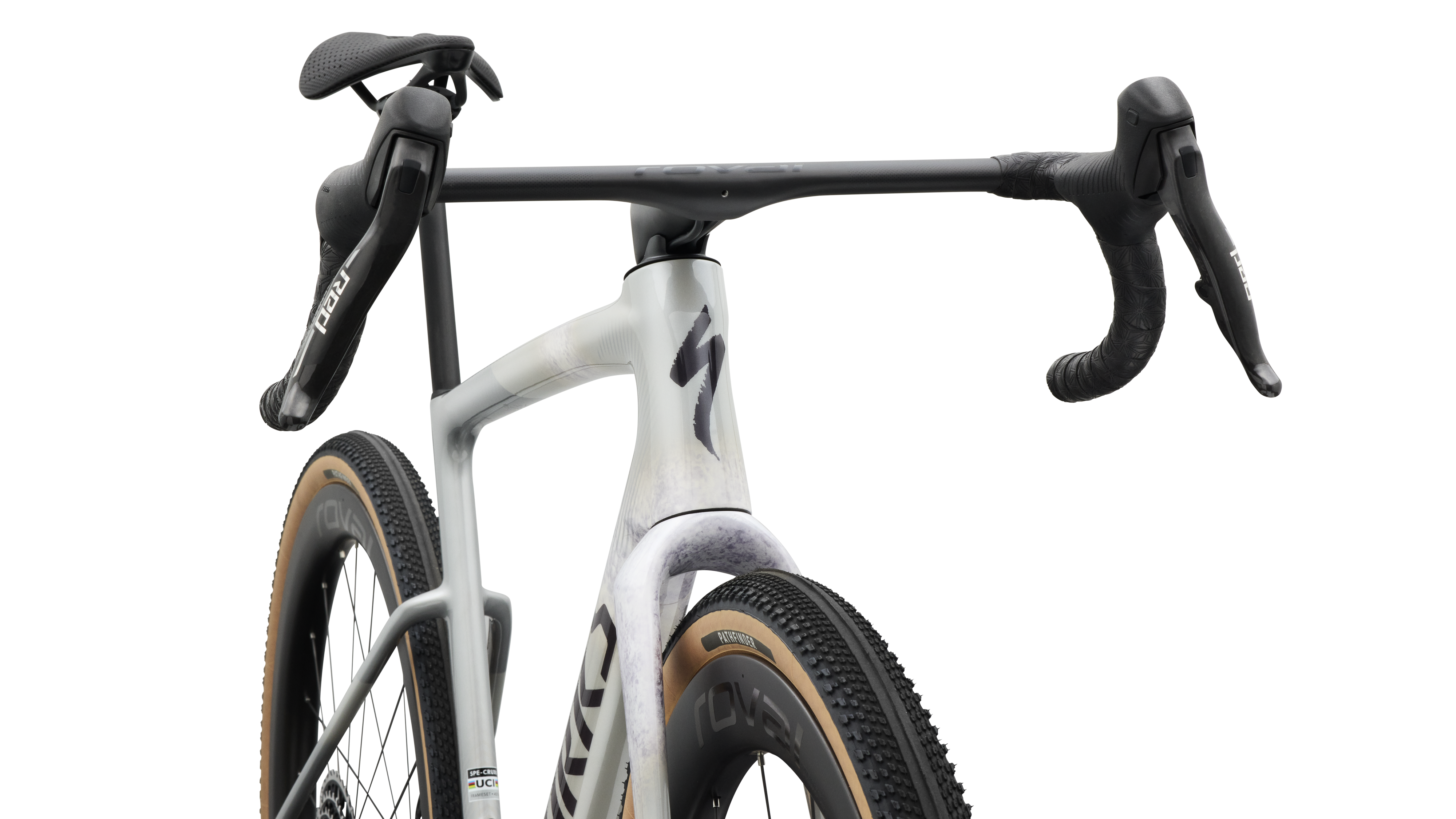

A one-piece aero bar/stem that cleans up airflow and cable routing without compromising control on rough gravel.
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
Frameset
Frame
S-Works Crux 5 FACT 12r Carbon, Rider First Engineered, threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout (789g, size 56)
Seat Binder
Integrated Wedge
Suspension
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
SRAM RED E1, hydraulic disc
Rear Brake
SRAM RED E1, hydraulic disc
Drivetrain
Shift Levers
SRAM RED AXS E1, hydraulic disc
Rear Derailleur
SRAM RED AXS XPLR E1, 13-speed
Cassette
SRAM RED XPLR E1, 13-speed, 10-46t
Chain
SRAM RED E1
Crankset
SRAM RED XPLR E1, Quarq power meter, 40t
Bottom Bracket
Ceramic Speed BB Alpha, BSA threaded, DUB
Wheels and tyres
Front Wheel

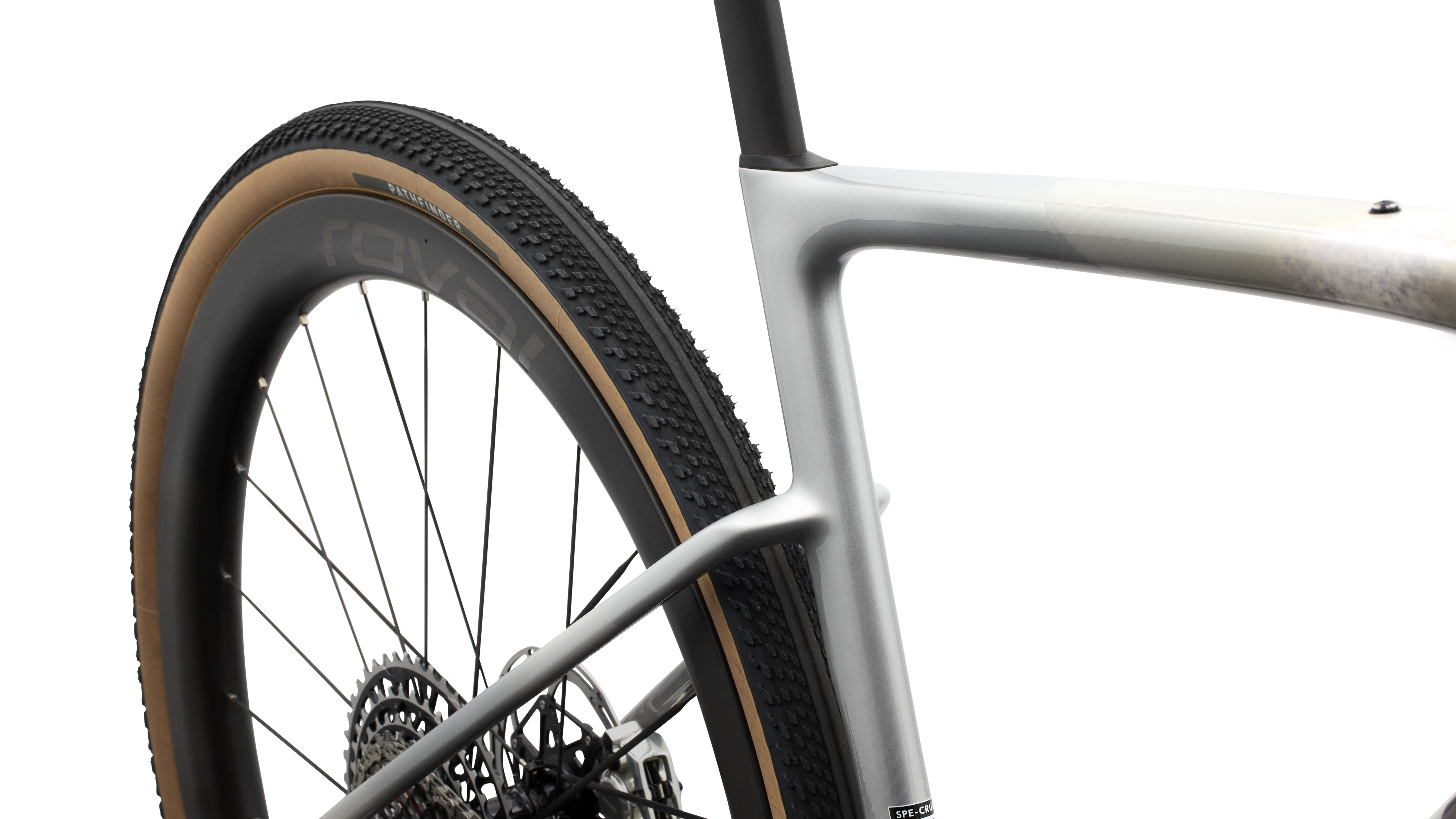

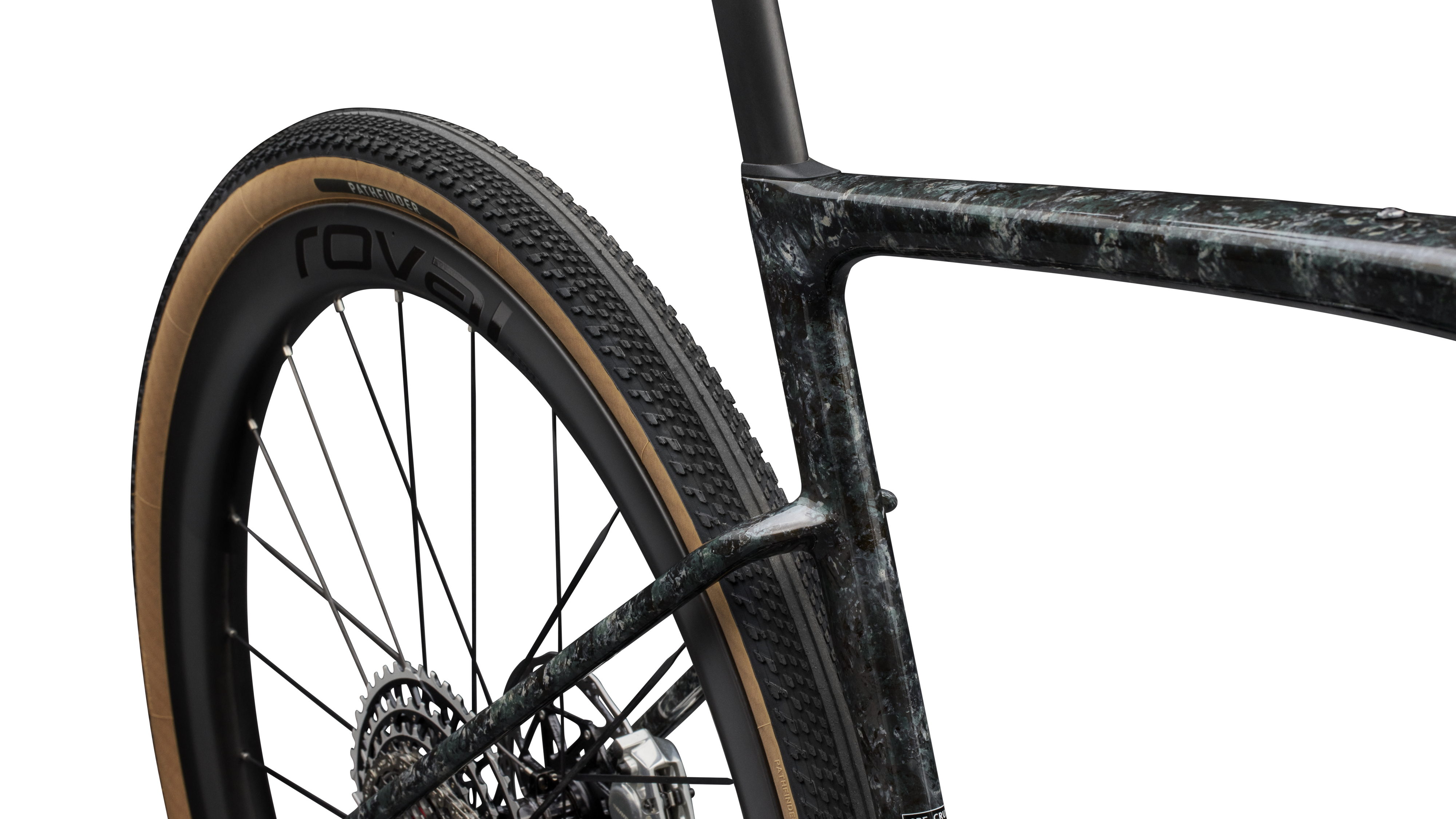

Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth, 18h, ceramic bearing hubs
Rear Wheel
Roval Terra Aero CLX, 27mm internal width, tubeless ready, 45mm depth, 24h, ceramic bearing hubs
Tyres
Pathfinder 700x45, Tubeless Ready
Cockpit and contact points
Handlebars
Roval Terra Integrated Cockpit
Stem
Roval Terra Integrated Cockpit (integrated bar/stem)
Bar Tape
Supacaz Super Sticky Kush
Seatpost
S-Works Tarmac SL8 Carbon, FACT Carbon, 15mm offset
Saddle
S-Works Power with Mirror, hollow Ti rails
Weight and sizing
Weight
7.1 kg (15 lb 10.4 oz), size 56
Weight is based on a production painted bike in the stated reference size. Actual weight can vary with colour, size and component variation. Specifications are subject to change without notice.
