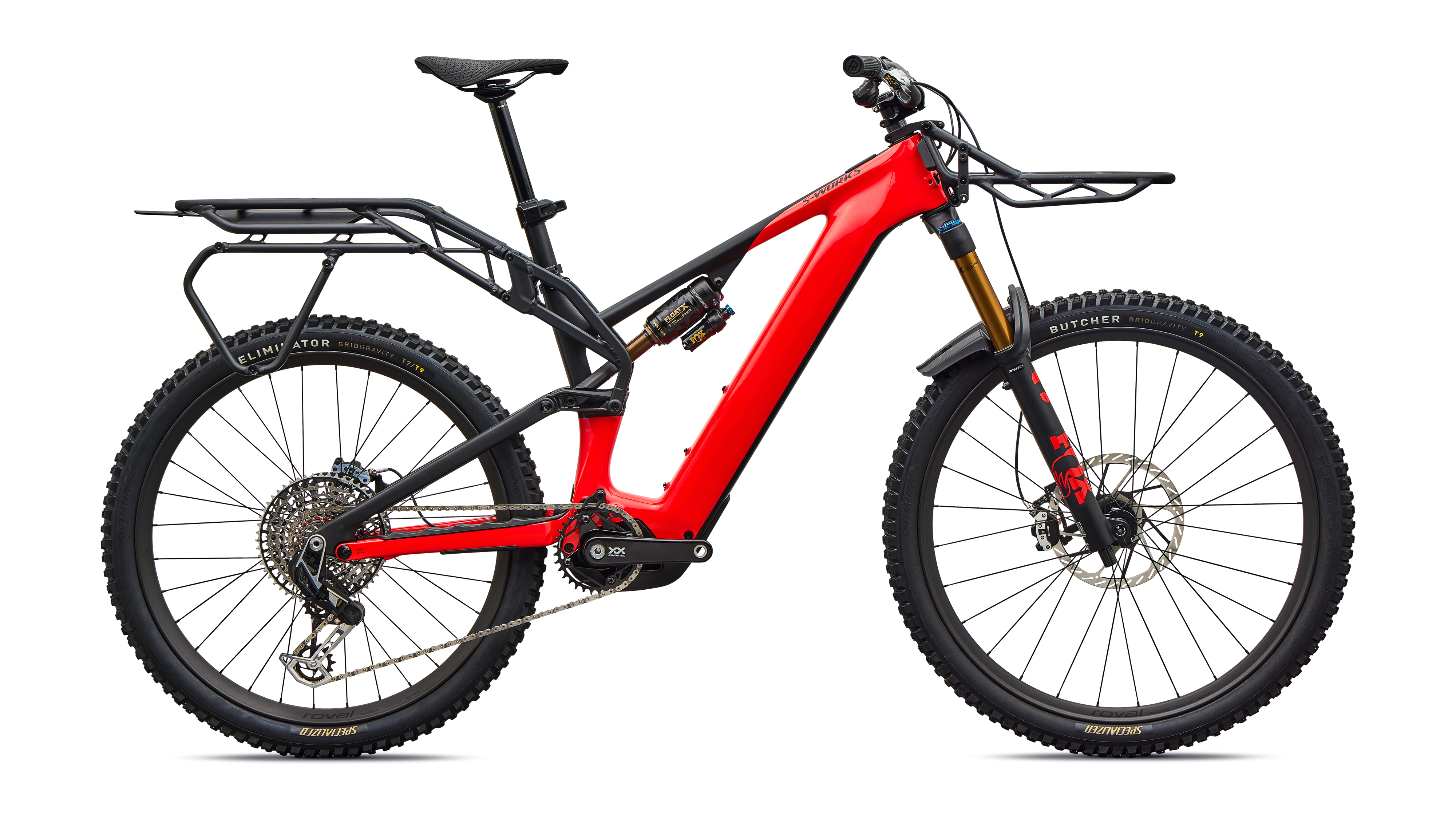

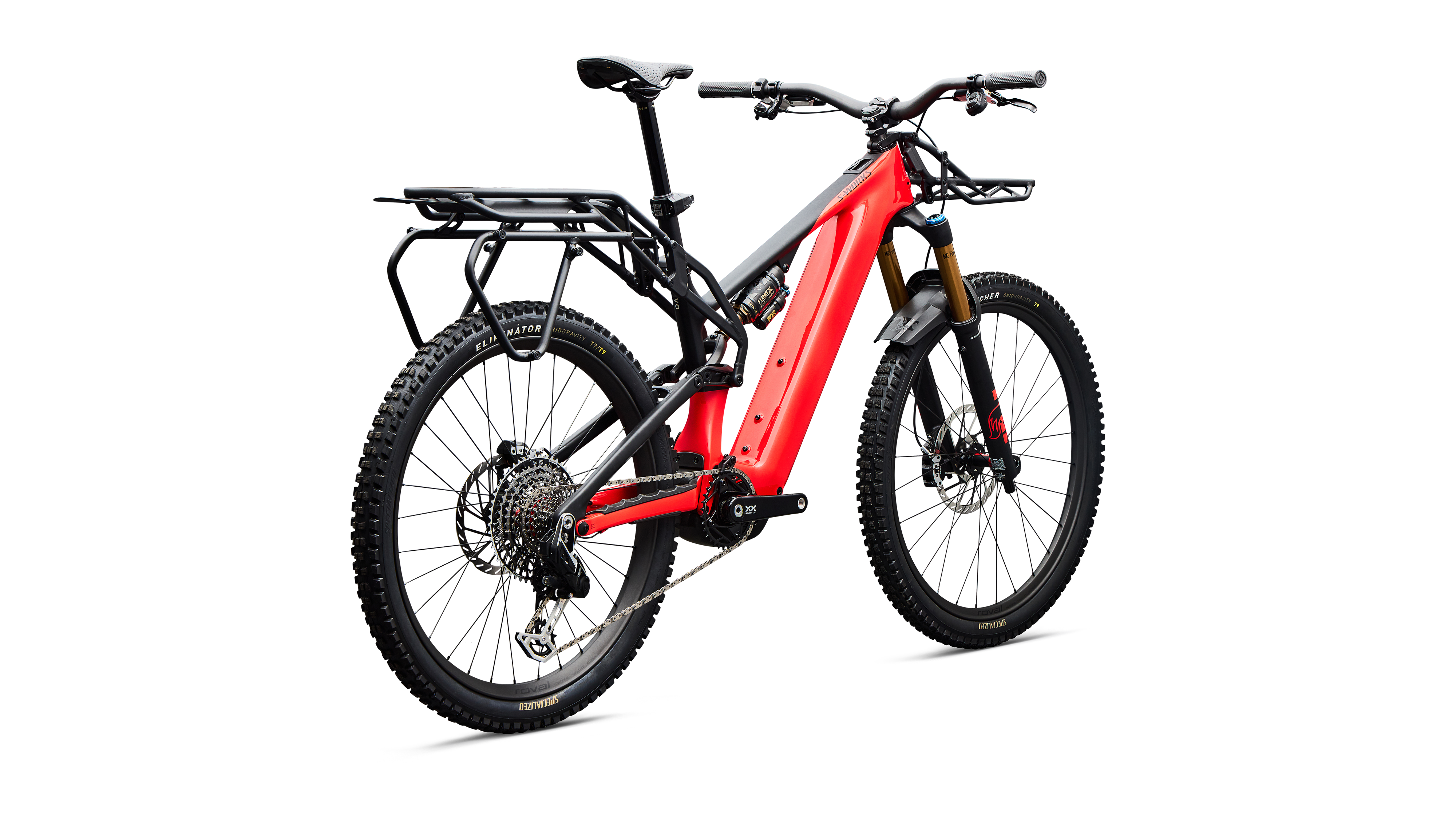

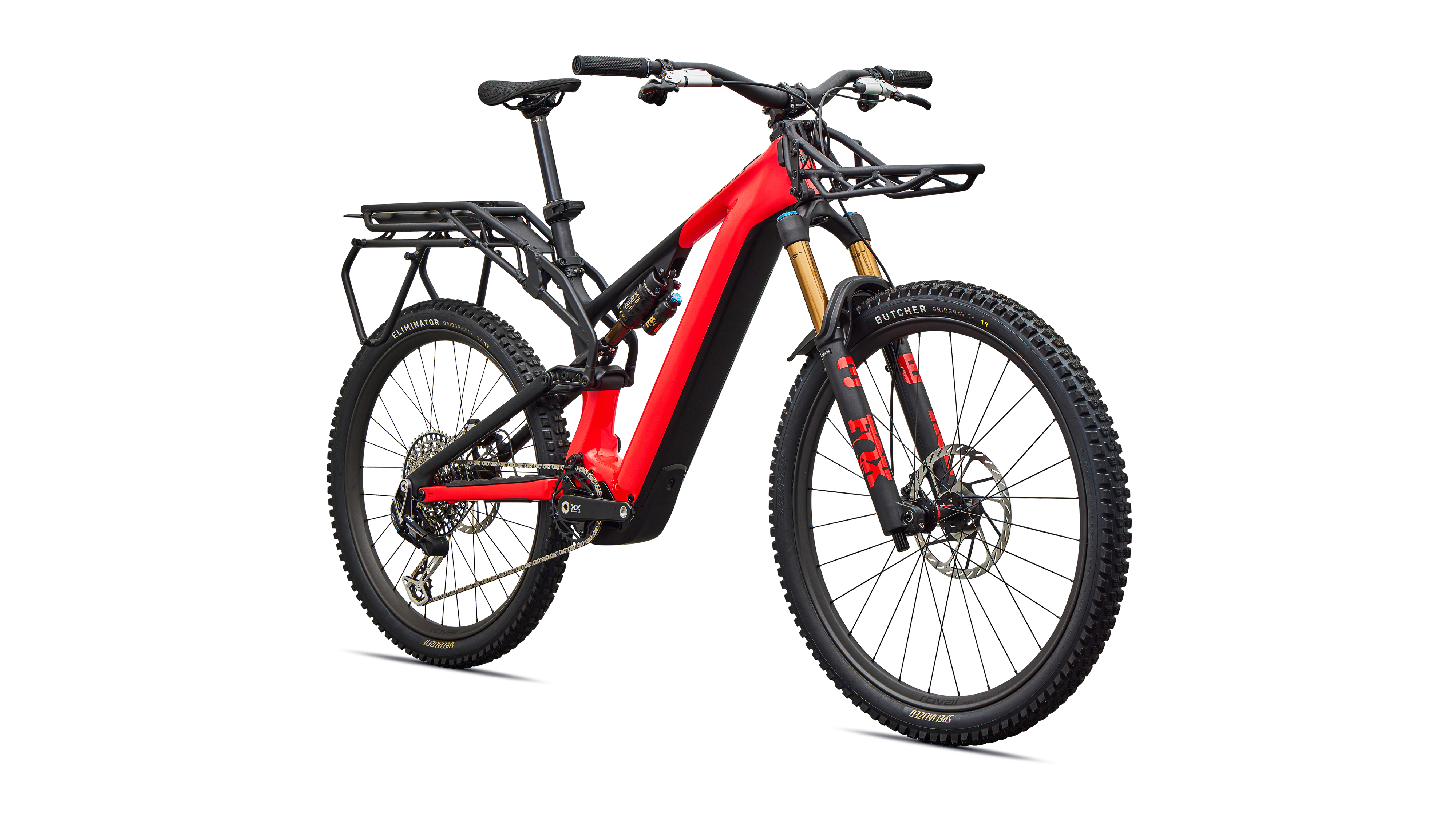

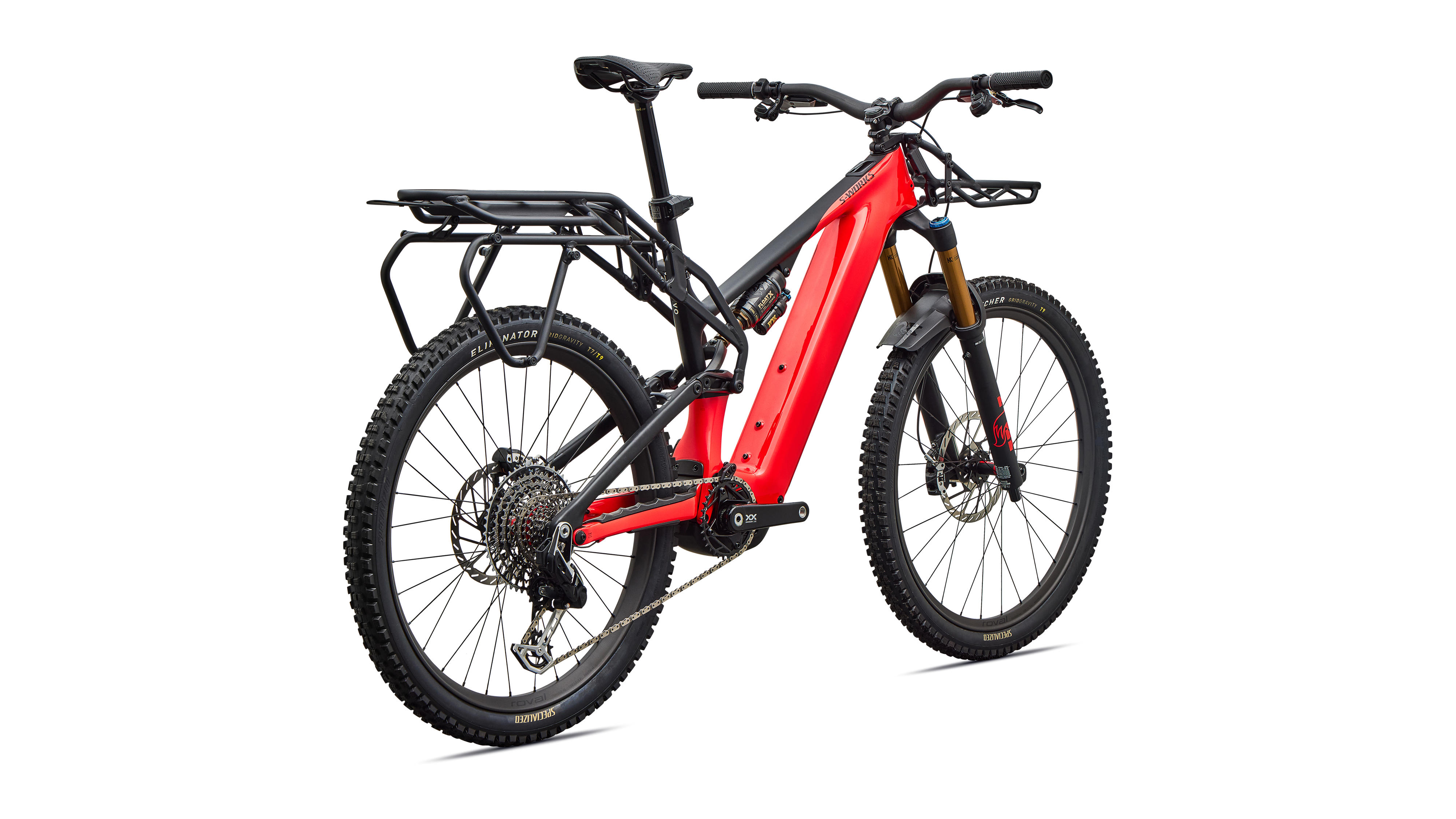

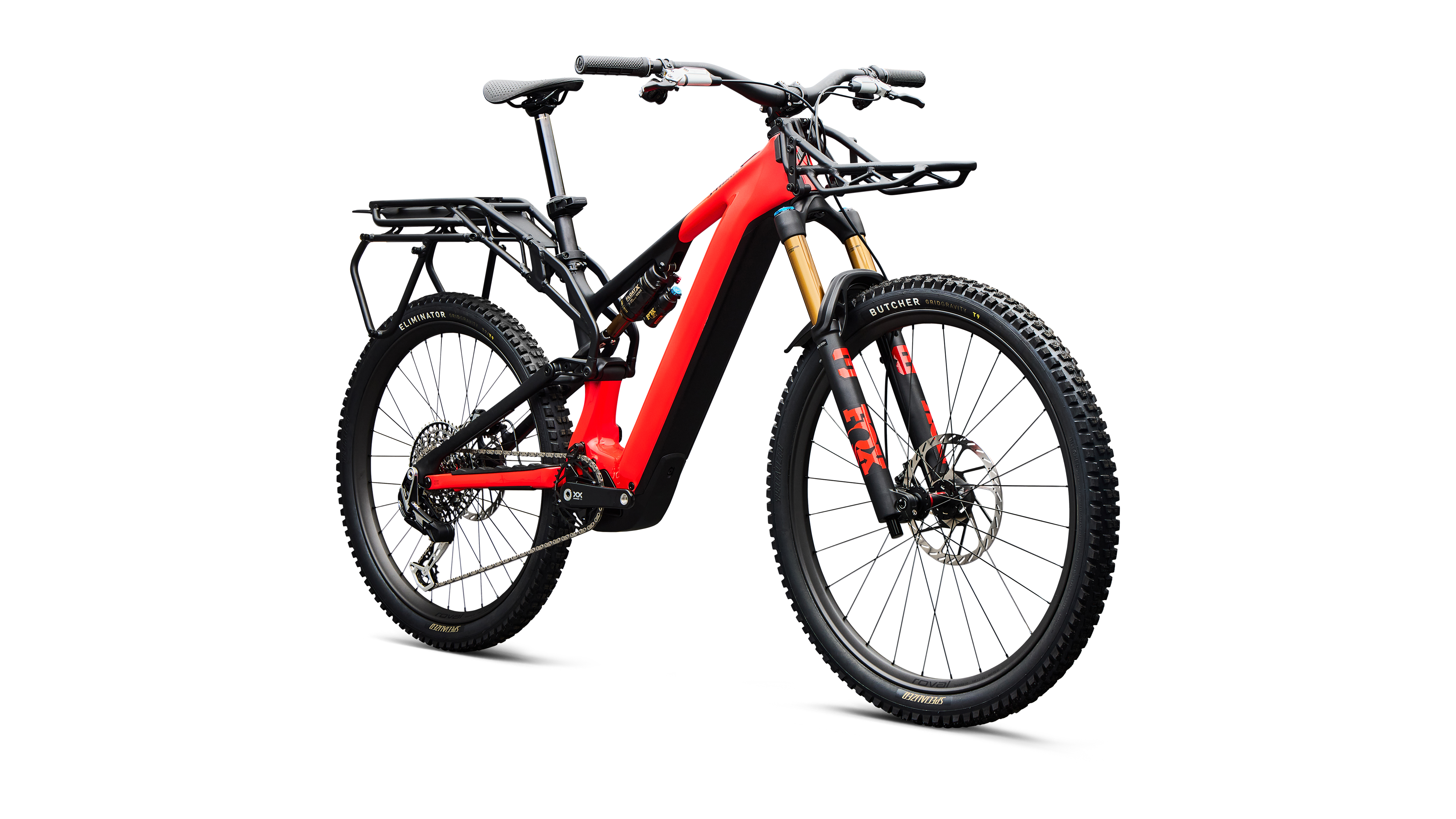

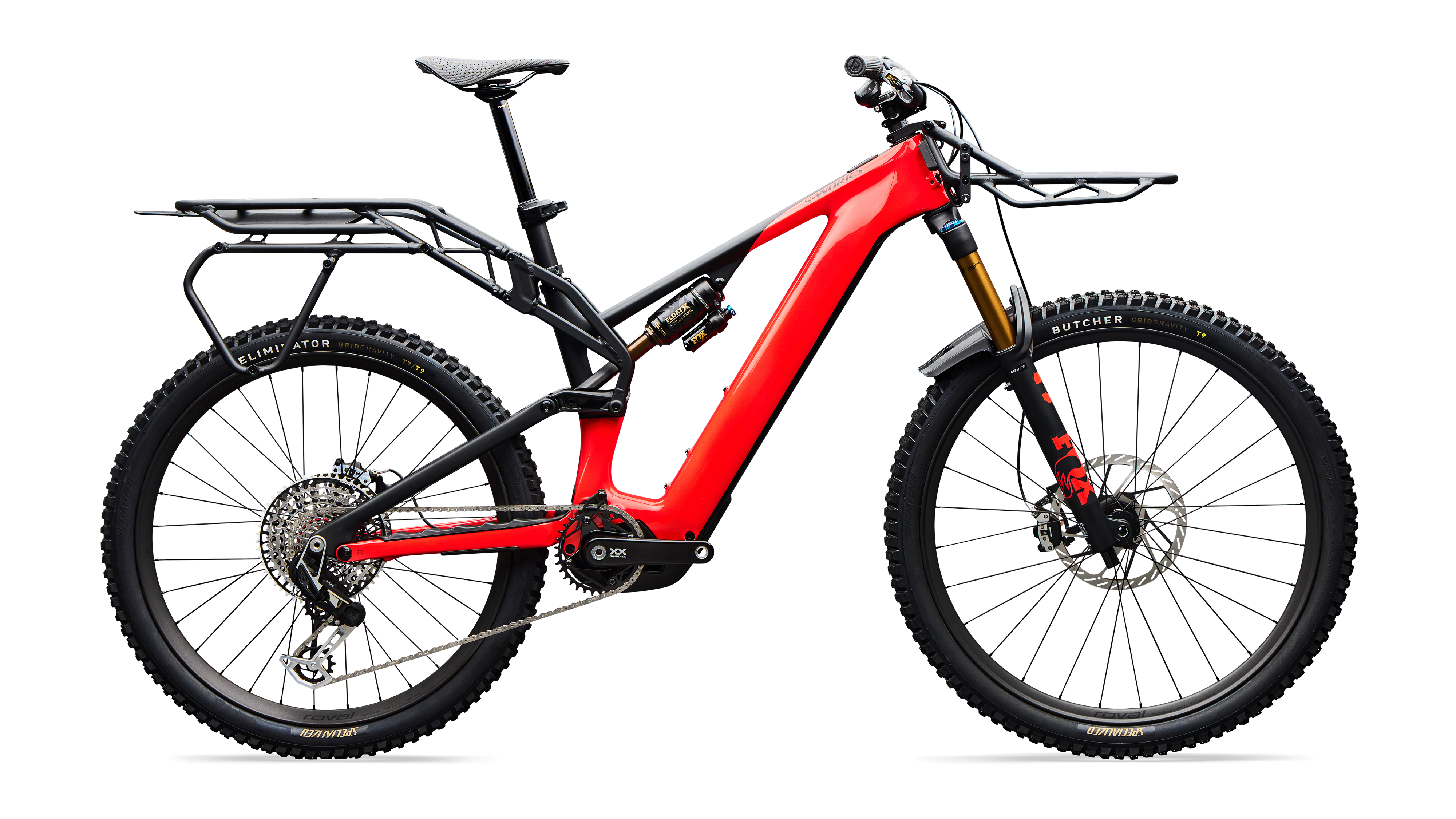

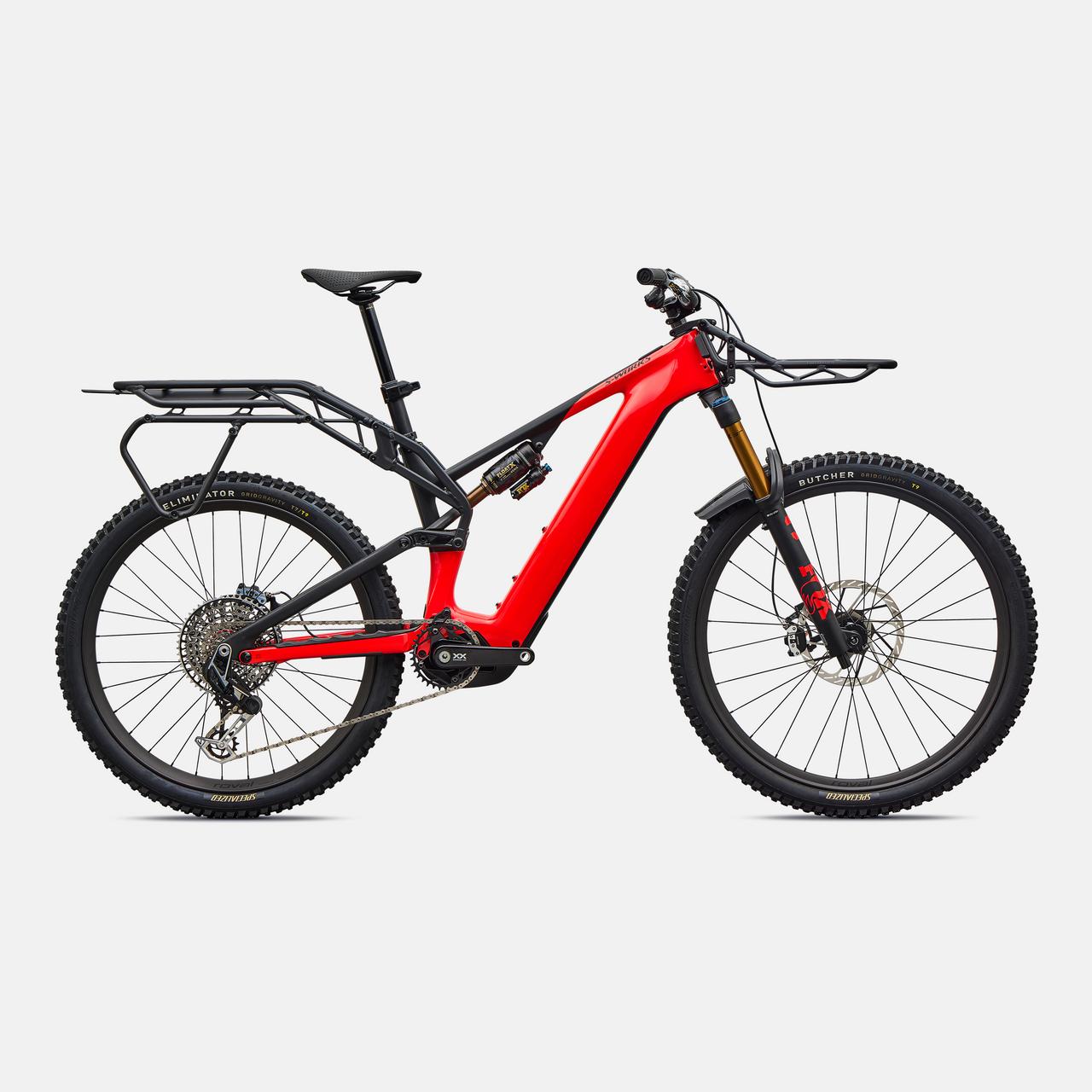

S-Works Turbo Levo 4 X
111Nm of torque, 850W of power, 840Wh of battery.
The S-Works Turbo Levo 4 X is the most capable bike in the Levo family - a mullet e-MTB built around the Specialized 3.1 S-Works motor and an 840Wh battery, on a 150mm-travel carbon frame with an adjustable head angle, bottom bracket height and chainstay length.
Best for: Big-mountain e-MTB riding where power, range and adjustability all matter.
At a glance
Motor
Specialized 3.1 S-Works, 111Nm, 850W
Battery
840Wh, side entry
Suspension
160mm FOX Factory 38 front, 150mm rear
Weight
27.25kg (size S4)
Key highlights
Specialized 3.1 S-Works motor - 111Nm of torque and 850W of peak power, with an 840Wh side-entry battery and a 12-amp smart charger offering Standard, Fast, Eco and charge-to-80% modes.
Levo 4 carbon frame with 150mm of travel, SWAT internal downtube storage, and adjustable head angle, BB height and chainstay length - the geometry is tuned to the trail, not fixed at the factory.
Mullet wheel set-up: Roval Traverse HD hookless carbon, 29" front and 27.5" rear, on DT Swiss 240 hubs.
SRAM XX Eagle Transmission with Maven Ultimate four-piston brakes on 220/200mm HS2 rotors.

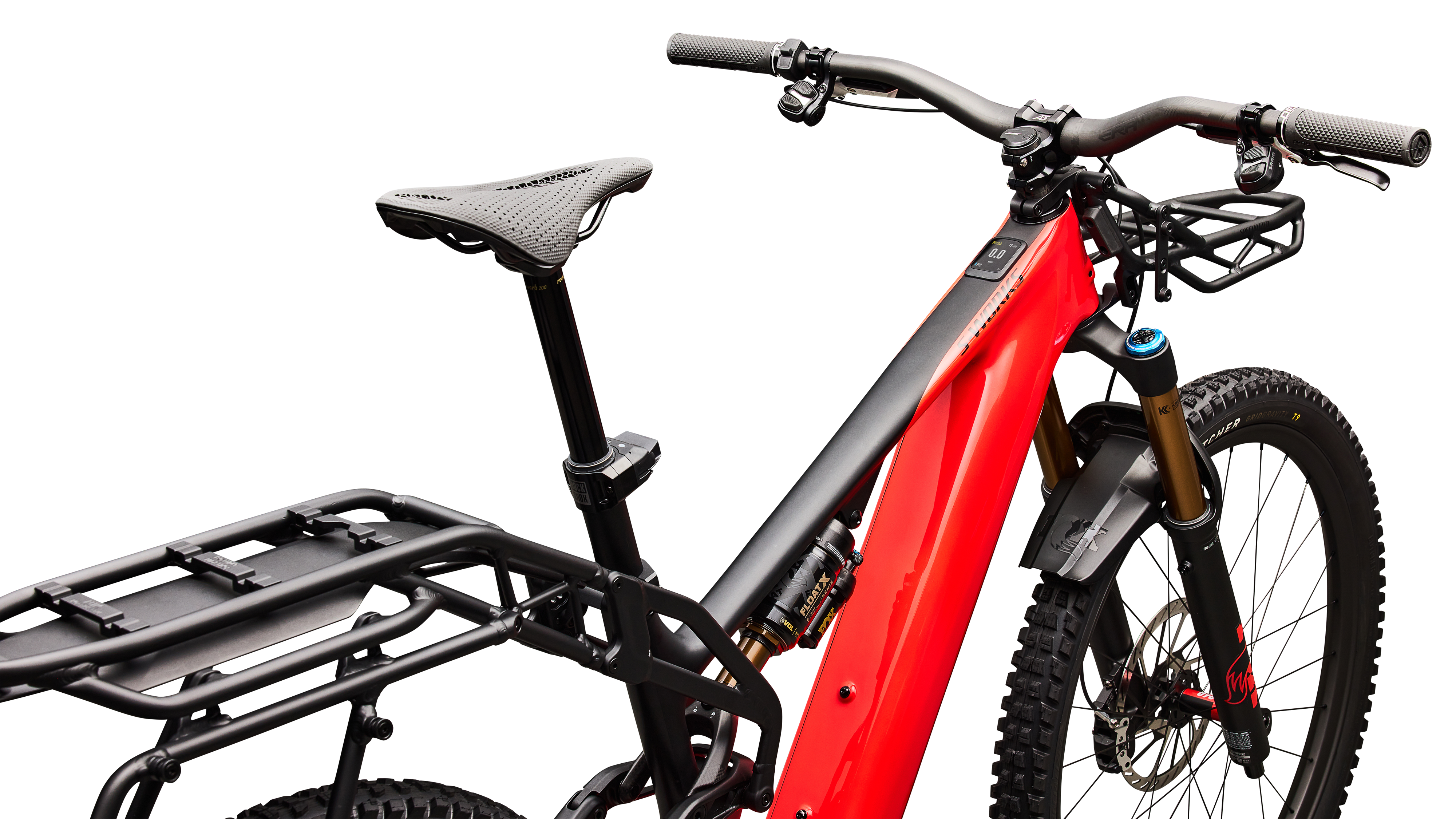

Mastermind TCU with a 2.2" high-resolution screen, fully customisable through the Specialized app, and Apple Find My support.
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
E-bike system
Motor
Specialized 3.1 S-Works motor, 111Nm, 850W
Battery
840Wh
UI/Remote
Mastermind TCU, 2.2" high-resolution screen, fully customisable with the Specialized app, works with Apple Find My
Charger
Specialized 12-amp smart charger, four charge functions - Standard, Fast, Eco and charge to 80%
Frameset
Frame

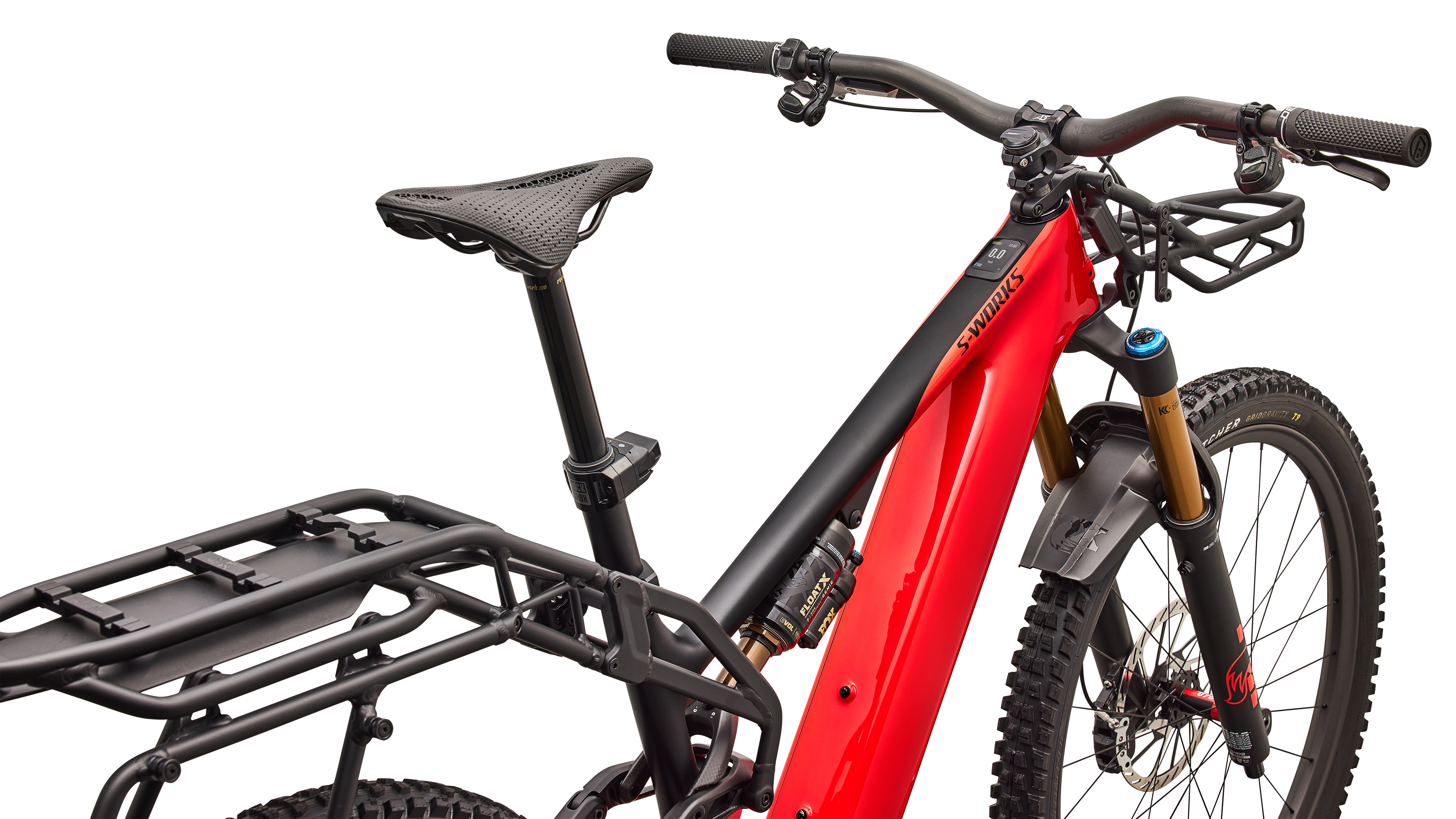

Levo 4 carbon frame, 150mm travel, SWAT storage, side-entry battery, fork travel up to 180mm, adjustable head angle, BB height and chainstay length
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
FOX Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Fork
FOX Factory 38, GRIP X2 damper, high/low speed compression and rebound adjust, 15x110mm axle, 44mm offset, 160mm travel
Brakes
Front Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 rotor
Rear Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 rotor
Drivetrain
Shift Levers
SRAM AXS Pod Ultimate with discrete clamp
Rear Derailleur
SRAM XX Eagle Transmission
Cassette
SRAM XX Transmission, XS 1297, 10-52t
Chain
SRAM XX, T-Type
Crankset
SRAM XX carbon, 160mm, ISIS interface
Chainrings
SRAM 34t T-Type, 104 BCD, steel
Wheels & Tyres
Front Wheel
Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 hub, 15x110mm, 28h
Rear Wheel
Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 hub, 12x148mm, 32h
Front Tyre
Butcher, GRID Gravity, T9, TLR, 29x2.4"
Rear Tyre
Eliminator, GRID Gravity casing, GRIPTON T7/T9, 27.5x2.4"
Inner Tubes
Standard, Presta valve
Cockpit
Stem
Industry Nine A35 Mountain, 35mm clamp, 40mm length

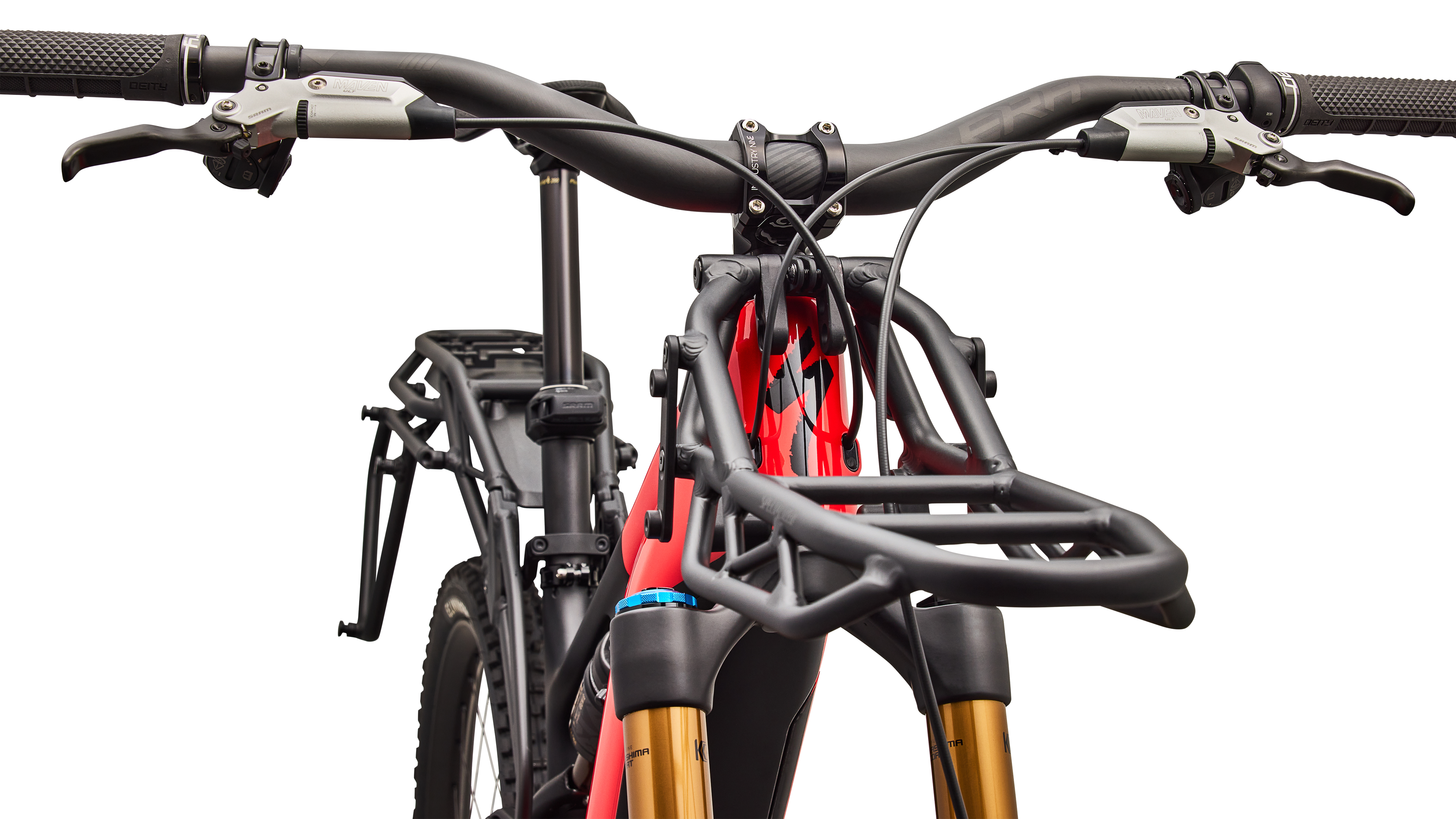

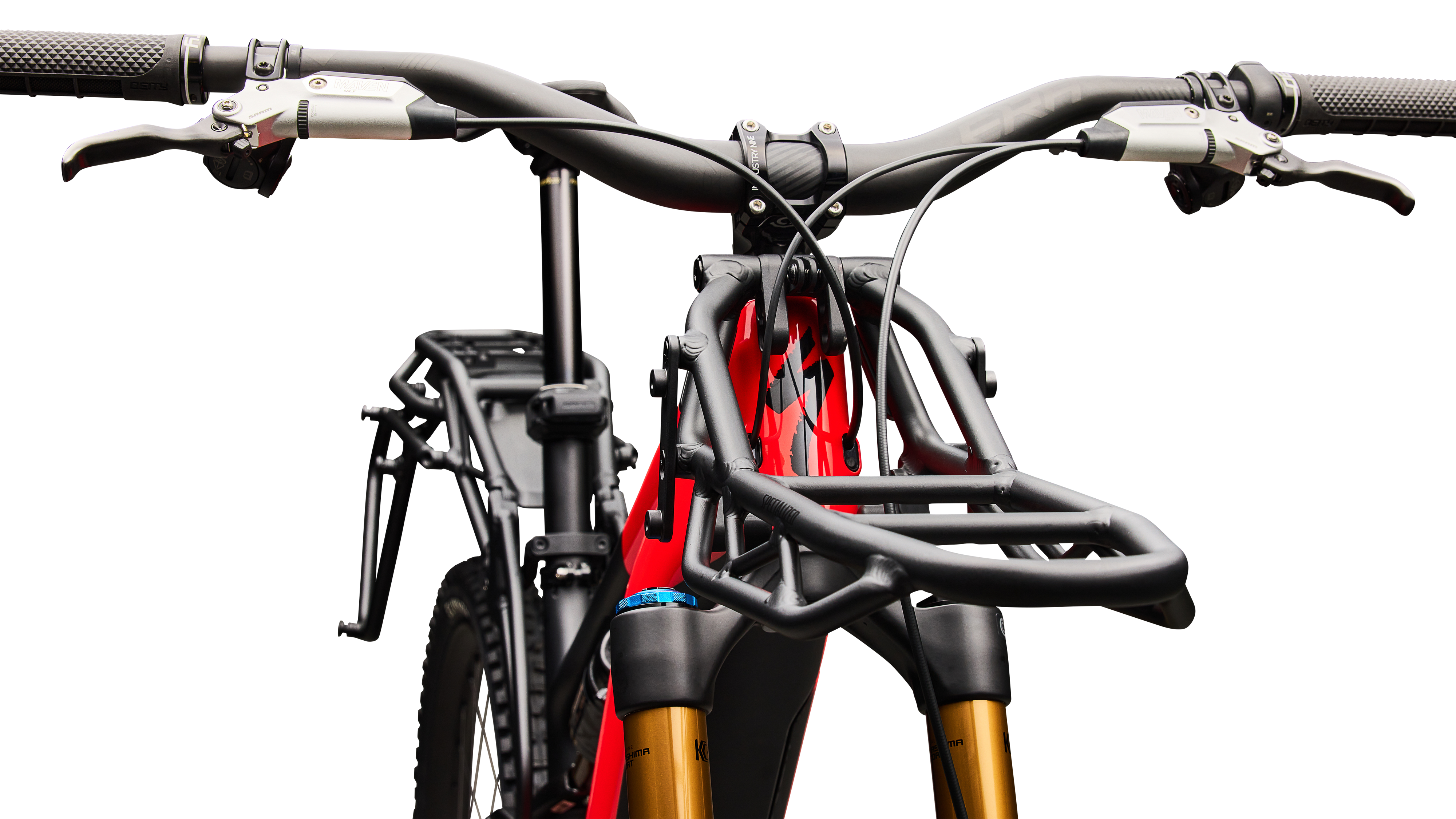

Handlebars
RaceFace Era carbon, 35mm clamp, 8-degree backsweep, 5-degree upsweep, 800mm width
Grips
Deity Lockjaw lock-on, 32mm OD, 133mm, black
Saddle
Specialized Power Pro Mirror w/ hollow Ti rails, 143/155mm
Seatpost
RockShox Reverb AXS, 34.9mm
Storage
SWAT
SWAT internal downtube storage
Weight
Weight
27.25kg (60 lb, 1.2 oz)
Weight Size
S4
Compliance and local laws. Certified as applicable to UL 2849 (e-system) and/or UL 2271 (battery). EN15194 compliant (250W continuous, 25 km/h). Check the local laws that apply to your intended use on roads and road-related areas before riding.
Weight is based on a production painted bike in the stated reference size. Actual weight can vary with colour, size and component variation. Specifications are subject to change without notice.
