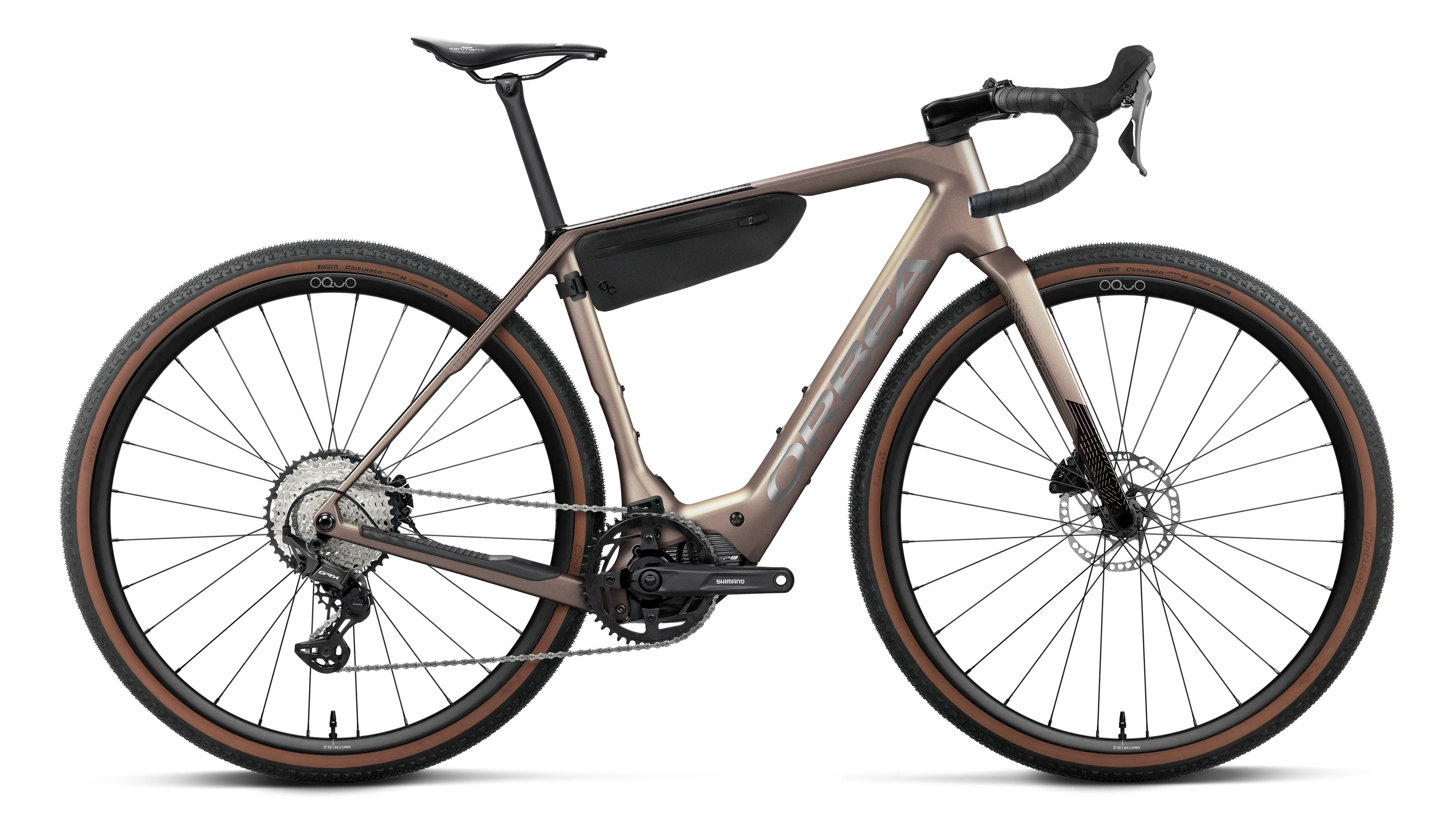

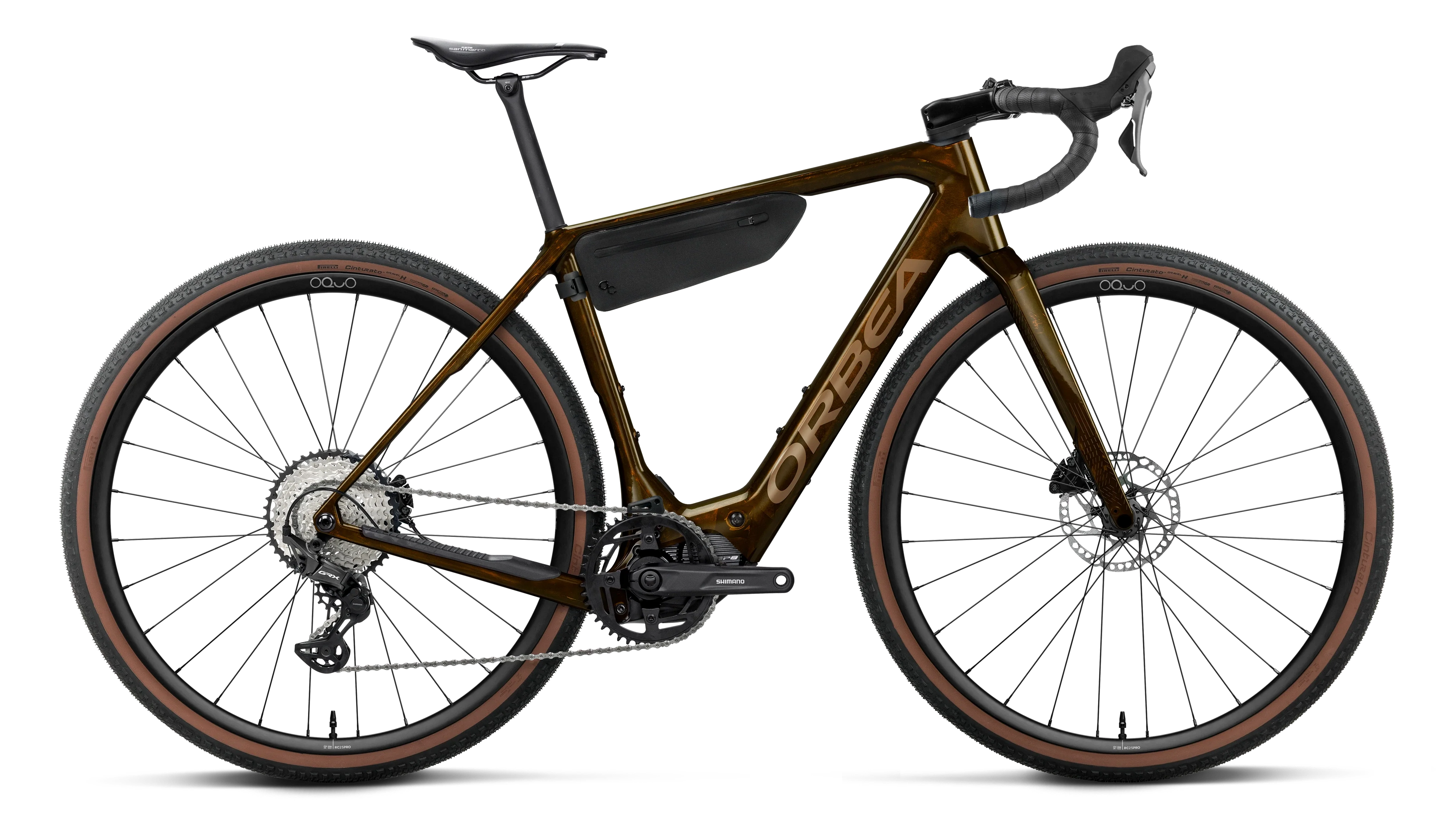

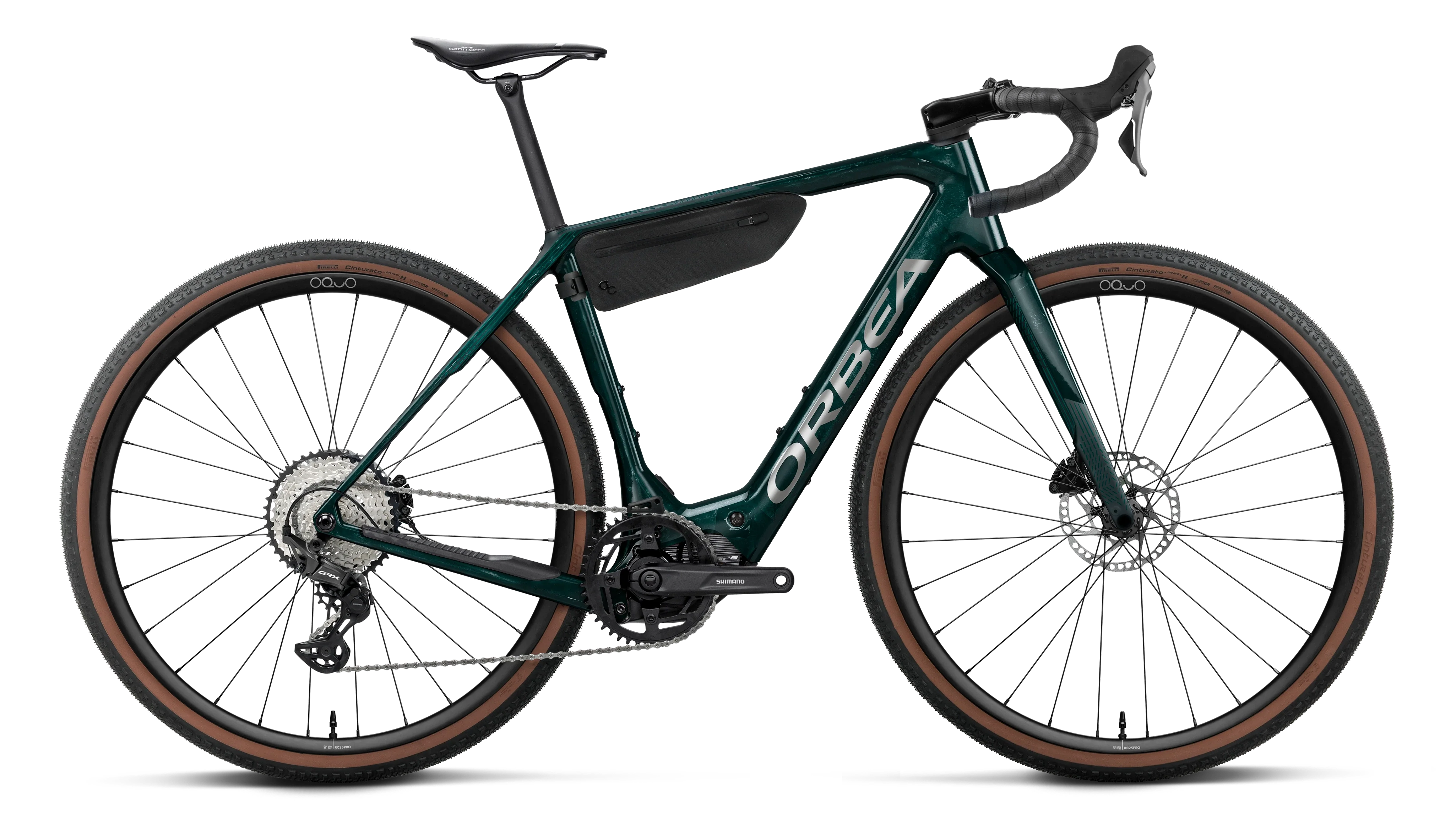

Denna M30
Electric gravel without limits
The Denna M30 combines Orbea engineering with a carefully selected build for its intended terrain and riding style.
Best for: Long gravel adventures, steep back-road climbs and mixed-surface exploration.
Available to order
$500 deposit. Australian warehouse stock usually arrives in 3–5 business days; Spain factory stock generally takes 7–14 days. We will confirm availability before finalising your order.
At a glance
Motor
Shimano EP801
Battery
Orbea internal 420 Wh
Frame
Orbea Denna, 12x142 mm thru-axle, internal cable routing
Fork
Orbea Denna OMR ICR full carbon, 12x100 mm thru-axle
Drivetrain
Shimano GRX RX822 GS
Wheels
Oquo Road Control RC25PRO
Key highlights
Frame: Orbea Denna, 12x142 mm thru-axle, internal cable routing
Motor: Shimano EP801
Battery: Orbea internal 420 Wh
Suspension: Orbea Denna OMR ICR full carbon, 12x100 mm thru-axle
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
E-bike system
Motor
Shimano EP801
Battery
Orbea internal 420 Wh
Charger
Orbea second-generation smart charger, 42V/2–4A
Remote
Shimano EN600-L
Frameset
Frame
Orbea Denna, 12x142 mm thru-axle, internal cable routing
Headset
FSA 1-1/2 integrated aluminium cup
Suspension
Fork
Orbea Denna OMR ICR full carbon, 12x100 mm thru-axle
Brakes
Brakes
Shimano RX400 hydraulic disc
Drivetrain
Chainring
Alloy EP8 44t
Crank
Shimano Steps EM600
Shifters
Shimano GRX RX610
Cassette
Shimano CS-M7100, 10–45t, 12-speed
Rear Derailleur
Shimano GRX RX822 GS
Chain
Shimano M6100
Chainguide
Orbea e-bike chainguide
Wheels and tyres
Wheels
Oquo Road Control RC25PRO
Tyres
Vittoria Terreno Dry Gravel G2.0 TLR, 700x45c
Cockpit and contact points
Handlebar
OC Gravel GR31
Stem
OC Road Performance RP23, -5°
Seatpost
OC Performance XP10 Carbon, 27.2 mm, zero setback
Saddle
Selle San Marco Shortfit 2.0 Start Up Off Road
Handlebar Tape
Orbea anti-slip, shock-absorbing tape
Product details
Use
E-gravel
Specifications are supplied by Orbea and may change without notice. Contact us if you would like us to confirm the current build before ordering.
