Product Info
Details + Specs

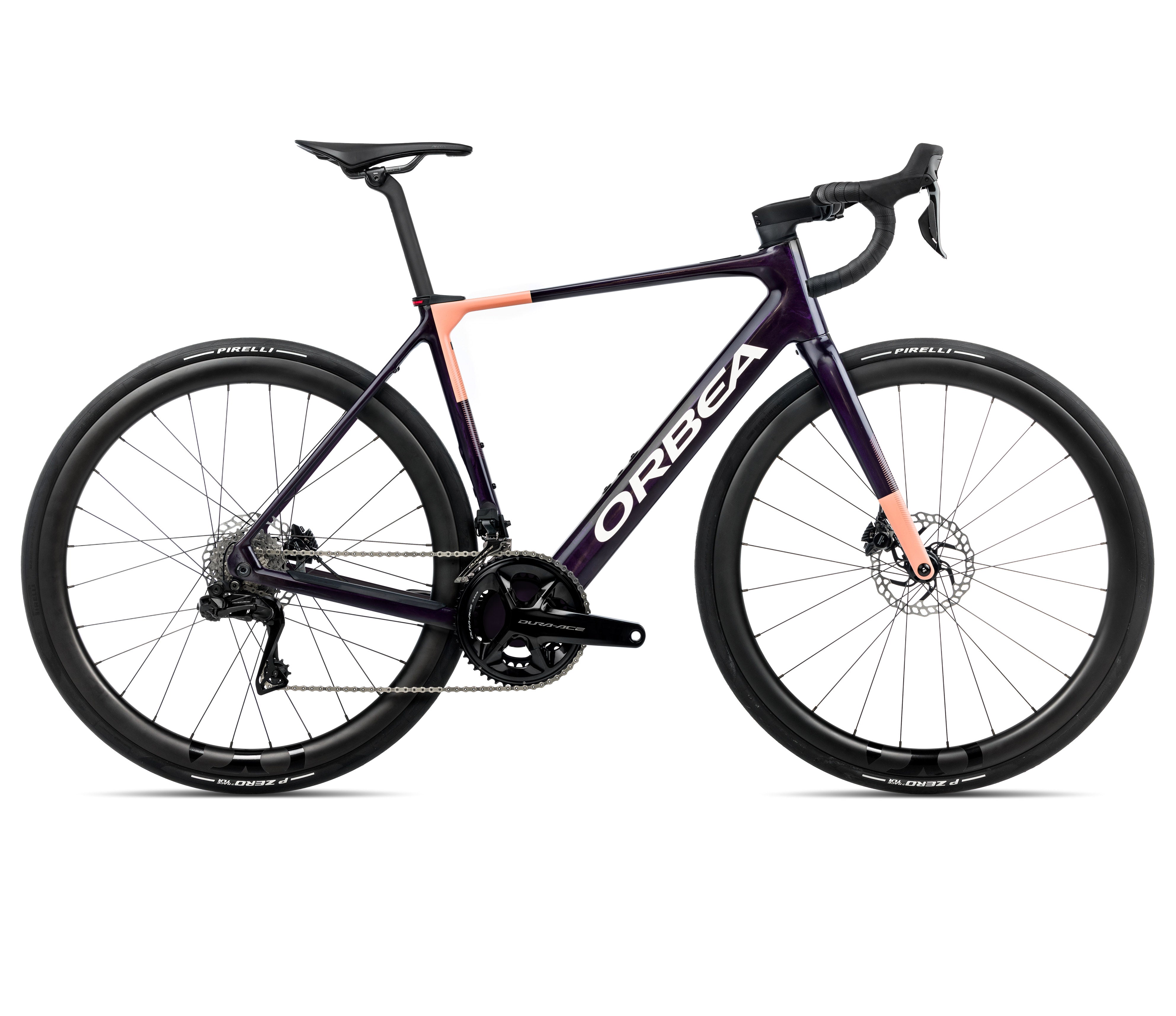

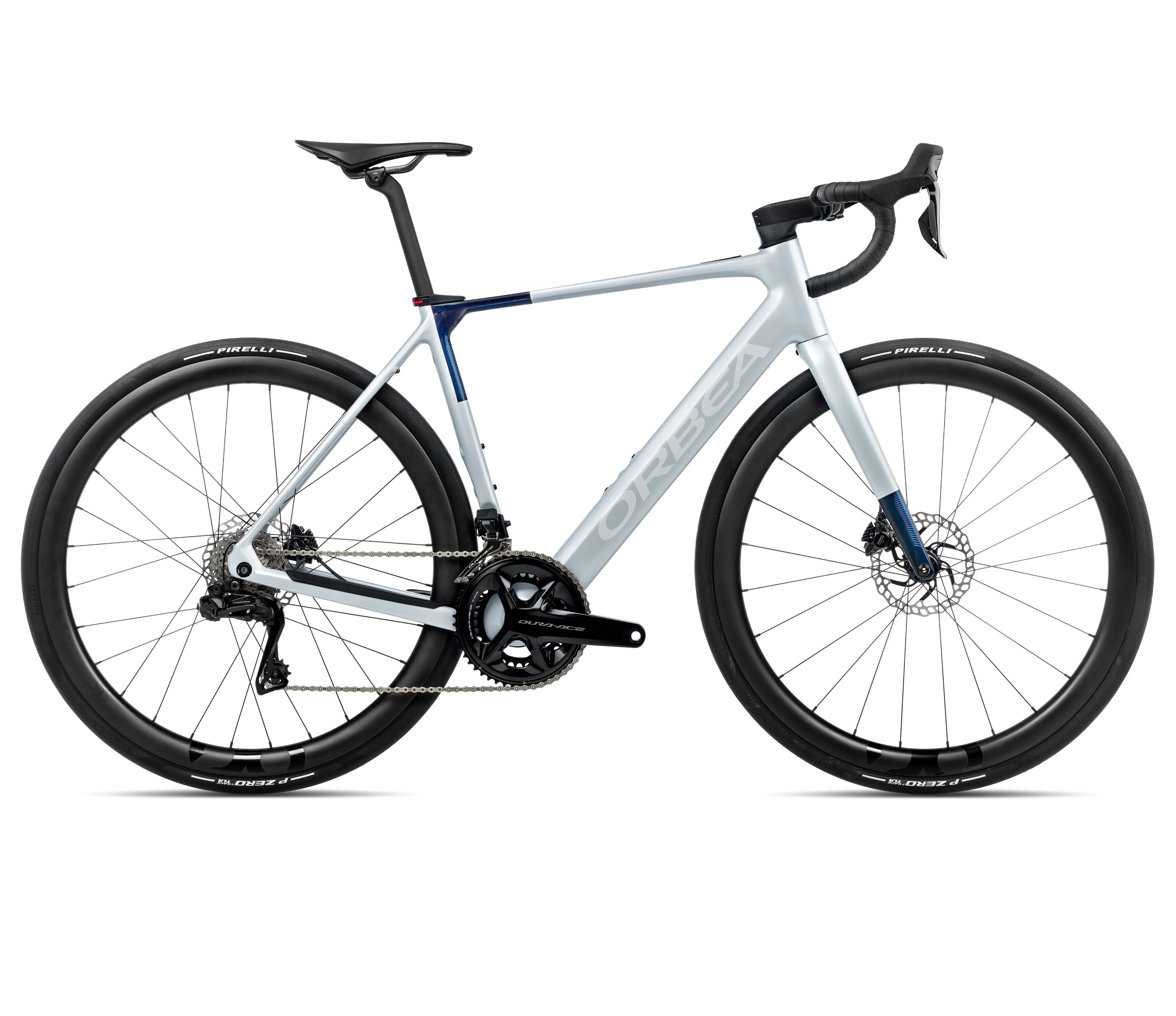

Gain M10I
Designed around the ride
The Gain M10I combines Orbea engineering with a carefully selected build for its intended terrain and riding style.
Best for: Riders wanting a refined Orbea build matched to its intended terrain.
Available to order
$500 deposit. Australian warehouse stock usually arrives in 3–5 business days; Spain factory stock generally takes 7–14 days. We will confirm availability before finalising your order.
At a glance
Motor
Mahle motor hub X20, ALC
Battery
Mahle iX350 36V 353Wh
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR…
Fork
Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread…
Drivetrain
Shimano Dura-Ace Di2 R9250
Wheels
Carbon 42, Tubeless, 21c
Key highlights
Electric assistance to help extend range and reduce climbing effort
Carbon frame platform for lower weight and a sharper ride feel
Road-focused geometry for efficient and confident riding
Integrated battery: Mahle iX350 36V 353Wh
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
E-bike system
Battery
Mahle iX350 36V 353Wh
Motor
Mahle motor hub X20, ALC
Display
Mahle Pulsar One monochrome ANT+ LEV
Charger
Mahle Active Charger up to 4A
Frameset
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Headset
FSA 1-1/2" Integrated Aluminium Cup
Suspension
Fork
Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Brakes
Brakes
Shimano R9270 Hydraulic Disc
Drivetrain
Front Derailleur
Shimano Dura-Ace Di2 R9250
Rear Derailleur
Shimano Dura-Ace Di2 R9250
Shifters
Shimano R9270
Cassette
Shimano Dura-Ace R9200 11-30t 12-Speed
Chain
Shimano CN-9100
Crankset
Shimano Dura-Ace R9200 34x50t
Wheels and tyres
Wheels
Carbon 42, Tubeless, 21c
Rear Hub
Orbea Thru Axle 12x142mm M12x2 P1 Lite
Front Hub
Orbea Thru Axle 12x100mm M12x2 P1 Lite
Tyres
Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
Cockpit and contact points
Stem
OC Road Performance RP10, -8º
Handlebar
OC Road Performance RP11-R Carbon, Rise 15, Reach 75, Drop 125, w/Di2 hole
Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle
Fizik Vento Antares R1 Carbon Rail 140mm
Accessories and storage
Front light
Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.
Rear light
Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
MyO custom orders
Selected colours and components may be personalised through Orbea MyO. Custom production has a longer lead time; contact us to confirm options and timing.
Specifications are supplied by Orbea and may change without notice. Contact us if you would like us to confirm the current build before ordering.
