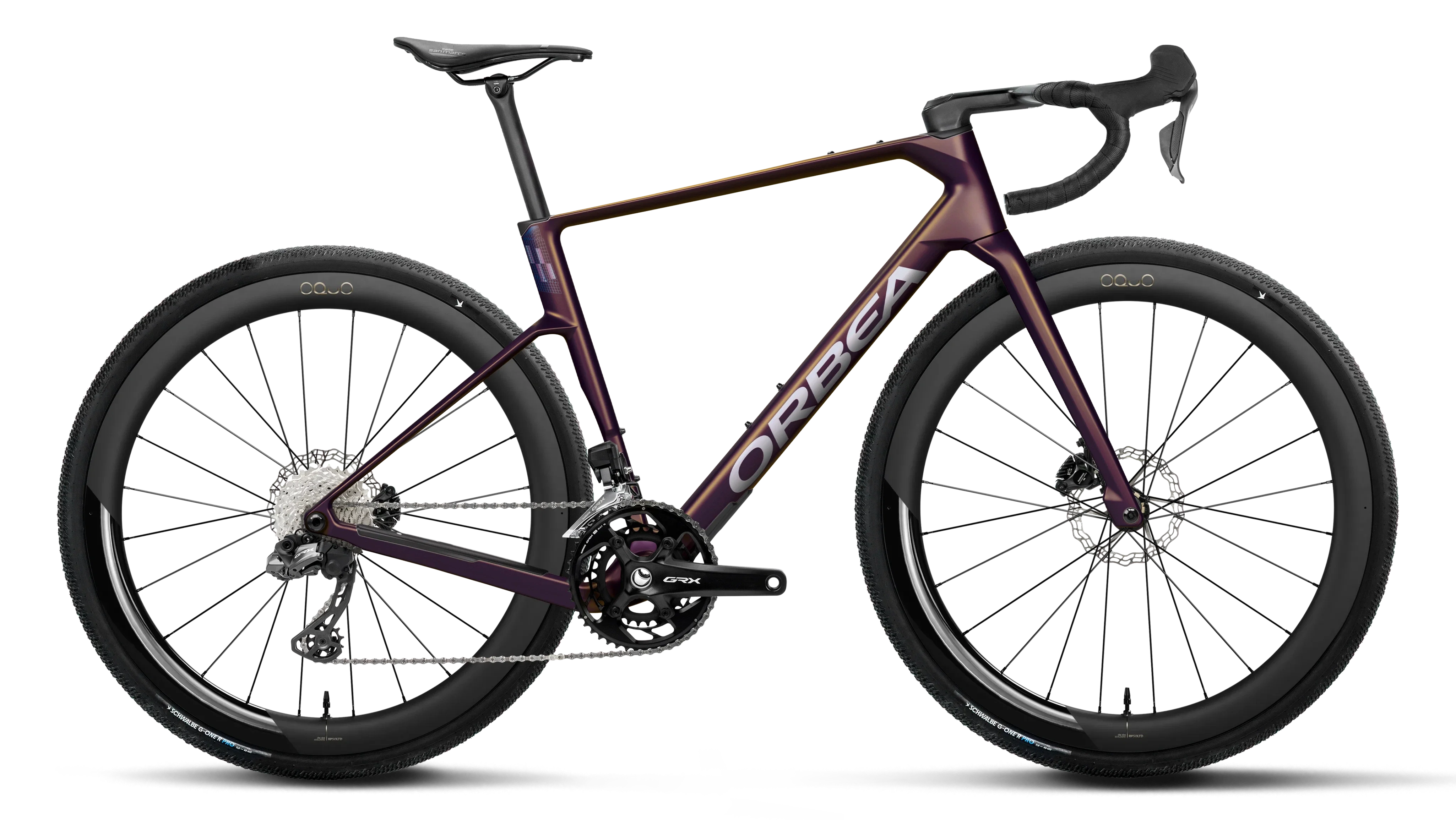

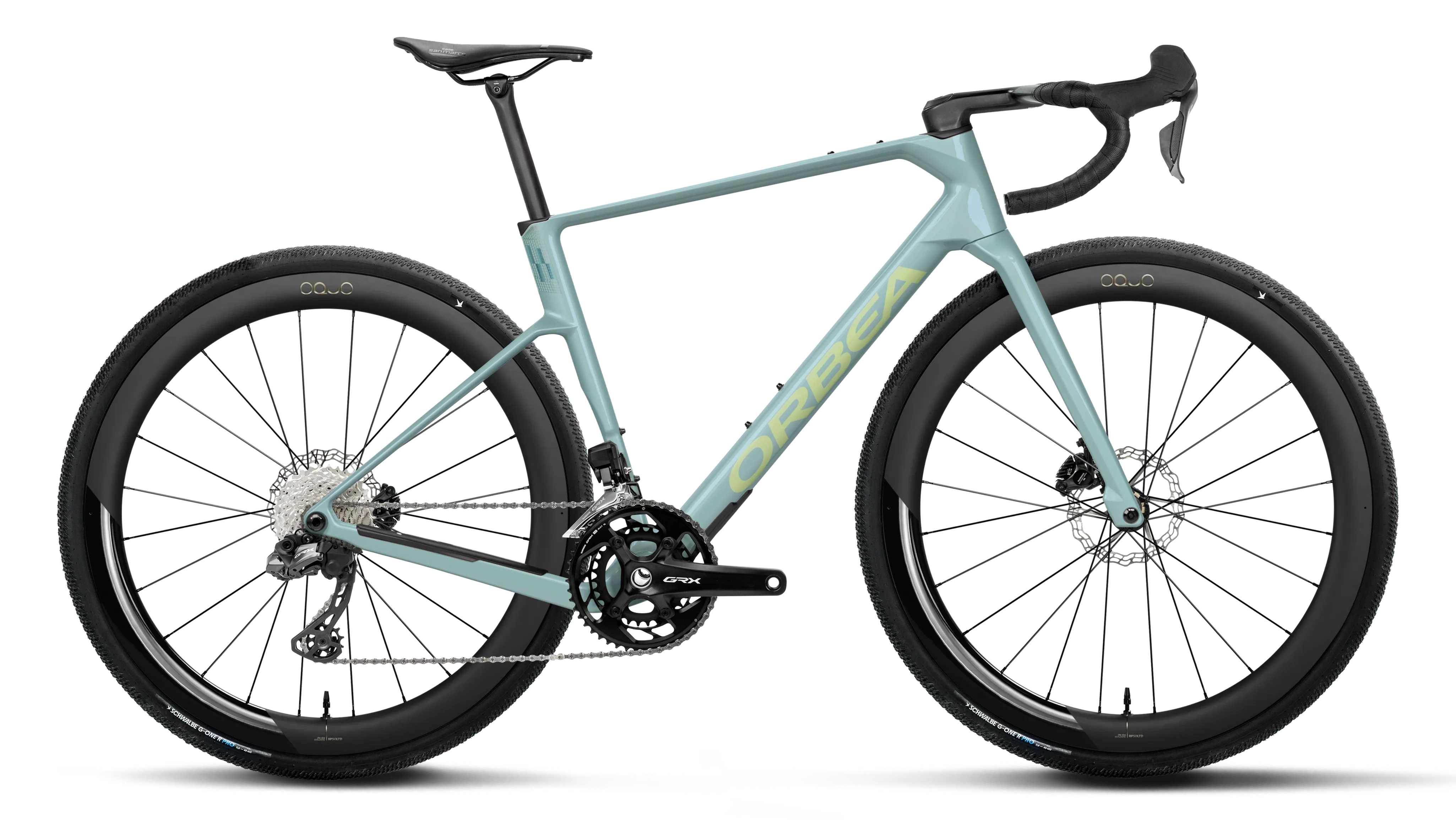

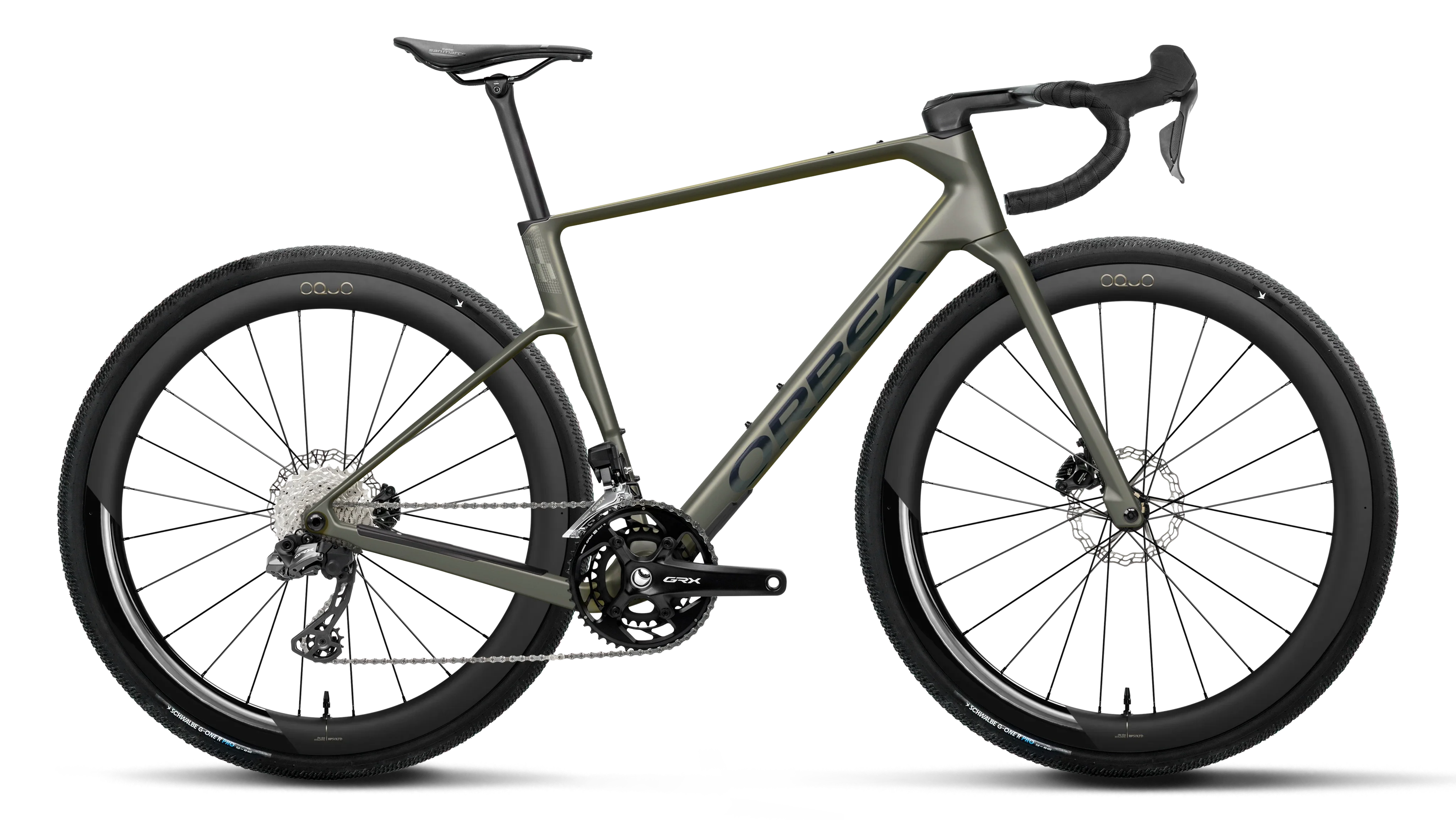

Terra Race M20i LTD
Go further beyond the tarmac
The Terra Race M20i LTD combines Orbea engineering with a carefully selected build for its intended terrain and riding style.
Best for: Gravel riding, mixed-surface adventures and long days beyond sealed roads.
Available to order
$500 deposit. Australian warehouse stock usually arrives in 3–5 business days; Spain factory stock generally takes 7–14 days. We will confirm availability before finalising your order.
At a glance
Frame
Orbea Terra carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide,…
Fork
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle…
Drivetrain
Shimano GRX Di2 RX825
Wheels
Oquo Road Performance RP50LTD
Tyres
Schwalbe G-ONE RS PRO Evo TLR, 45-622, Addix Race
Brakes
Shimano RX820 Hydraulic Disc
Key highlights
Carbon frame platform for lower weight and a sharper ride feel
Gravel-ready design for mixed surfaces and adventure riding
Multiple colour options available within this product
Available in a range of sizes to suit different riders
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
Frameset
Frame
Orbea Terra carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout.
Headset
FSA 1-1/2" Integrated Aluminium Cup
Suspension
Fork
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
Brakes
Brakes
Shimano RX820 Hydraulic Disc
Drivetrain
Front Derailleur
Shimano GRX Di2 RX825
Rear Derailleur
Shimano GRX Di2 RX825
Shifters
Shimano GRX Di2 RX825
Cassette
Shimano Ultegra R8100 11-34t 12-Speed
Chain
Shimano M7100
Crankset
Shimano GRX RX820 31x48t
Wheels and tyres
Wheels
Oquo Road Performance RP50LTD
Rear Hub
Orbea Thru Axle 12x142mm M12xP1 Lite
Front Hub
Orbea Thru Axle 12x100mm M12xP1 Lite
Tyres
Schwalbe G-ONE RS PRO Evo TLR, 45-622, Addix Race
Cockpit and contact points
Seatpost
OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle
Selle San Marco Shortfit 2.0 Start Up Off Road Xilite
Handlebar Plugs
OC Components
MyO custom orders
Selected colours and components may be personalised through Orbea MyO. Custom production has a longer lead time; contact us to confirm options and timing.
Specifications are supplied by Orbea and may change without notice. Contact us if you would like us to confirm the current build before ordering.
