Orbea Wild TR H10
Shipping Bikes & Equipment
For the full Spoke N Trail experience we recommend choosing local pickup from our store in Noosaville.
1 - Ship to home - (Freight Cost TBC) - Contact us with your address for a quote.
Bikes are delivered partially assembled in a box. We highly recommend taking to your local bike shop for professional final assembly and setup by a qualified mechanic. If you decide to take your bike to a 3rd party for assembly or to check over of your own work, additional fees may apply. If any damage is evident to the box when it arrives please take photos and contact us prior to attempting assembly.
2 - Local Delivery $150 (within 50km of Noosaville store)
Bikes are professionally assembled, Delivery includes our standard bike setup and handover. During delivery we offer practical tips on setup, general care, and maintenance of your new bike.
3 - Pickup in-store (free)
All bikes are professionally assembled, setup and tuned for you.
Some of our in-stock bikes are not yet built and may take 48hrs to build for collection.
During in-store collection we offer practical tips on setup, general care, and maintenance of your new bike.
Please get in touch with our team if you have any questions about bikes or shipping.
Product Info
Details + Specs

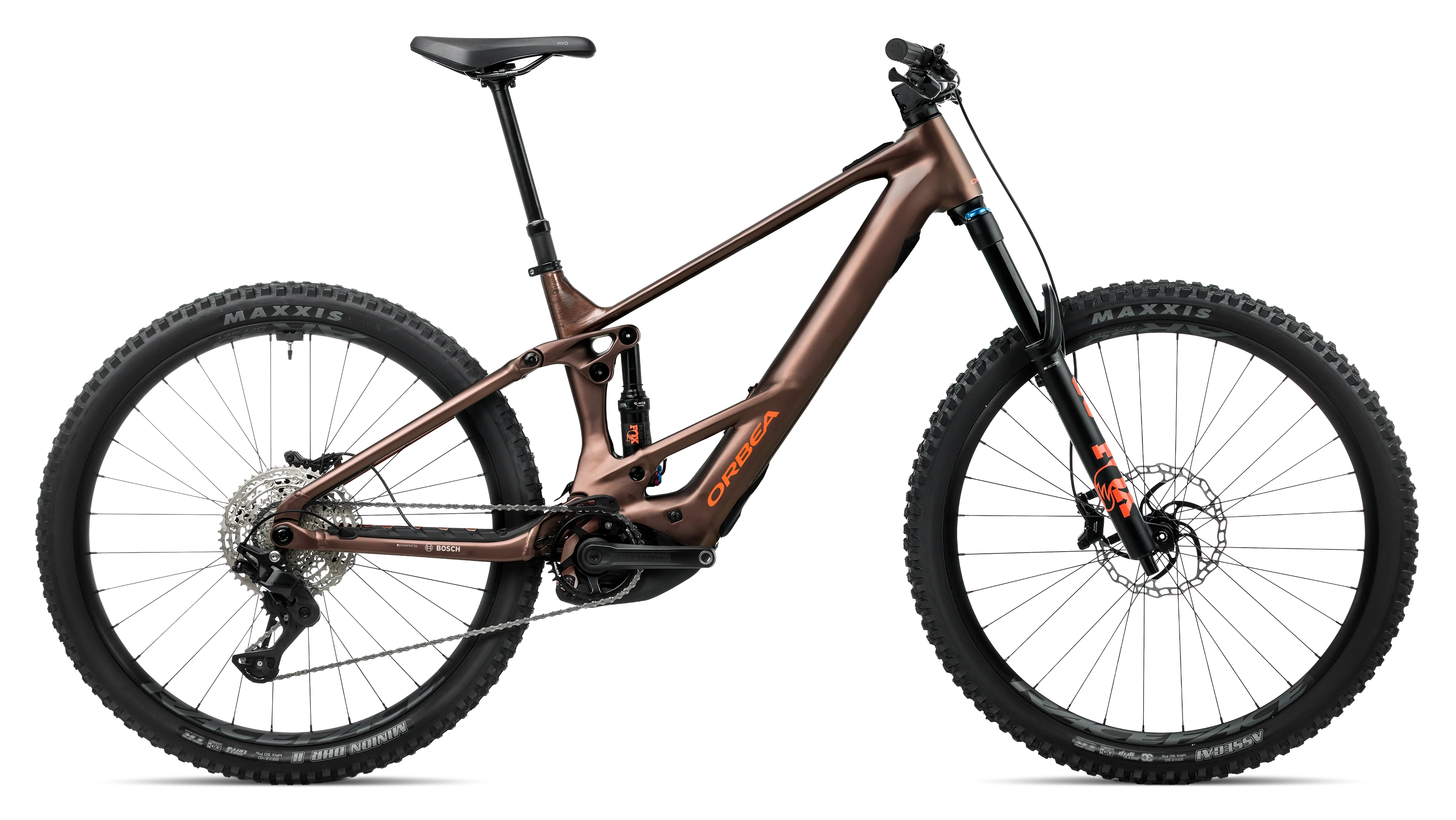

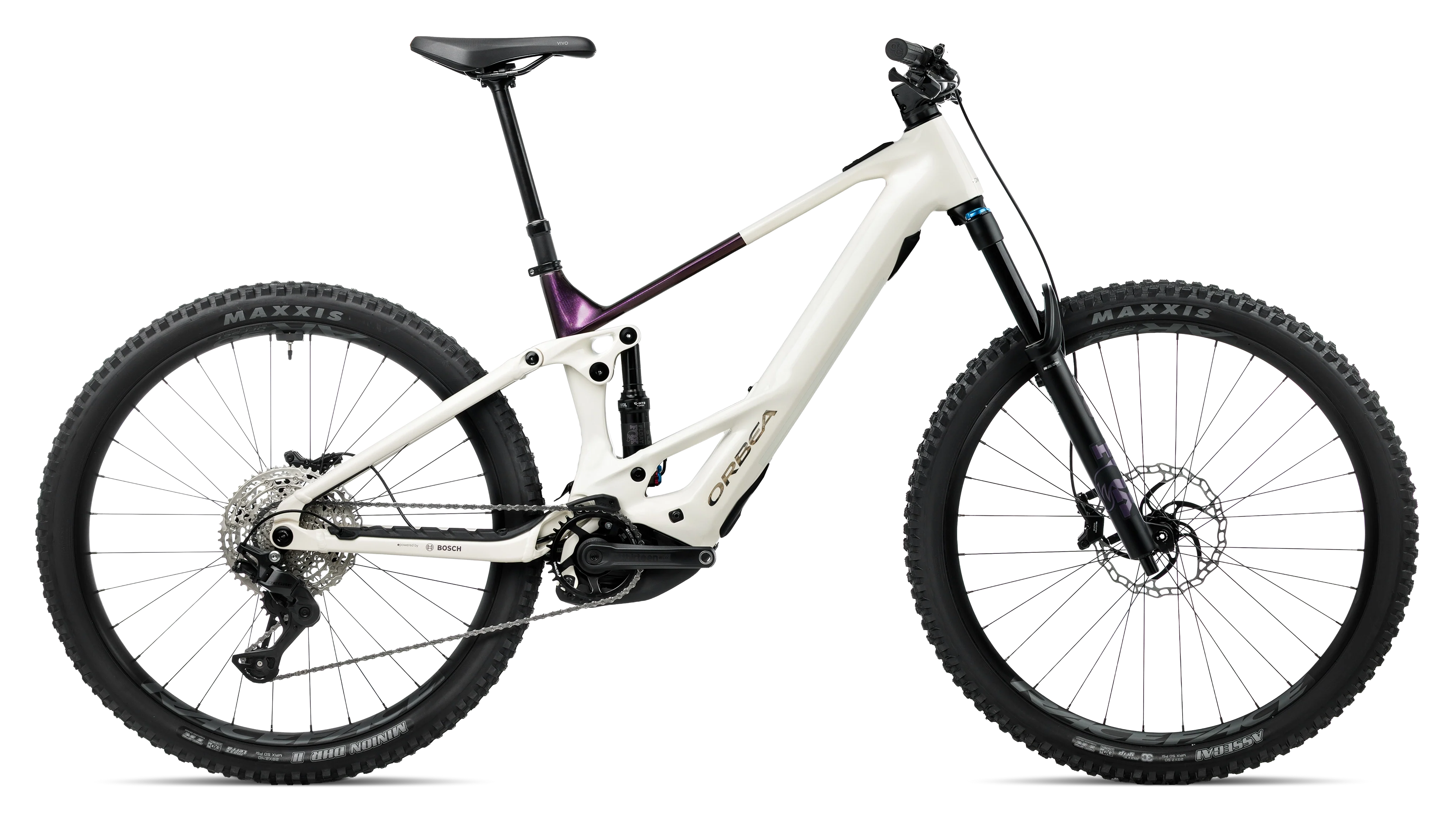

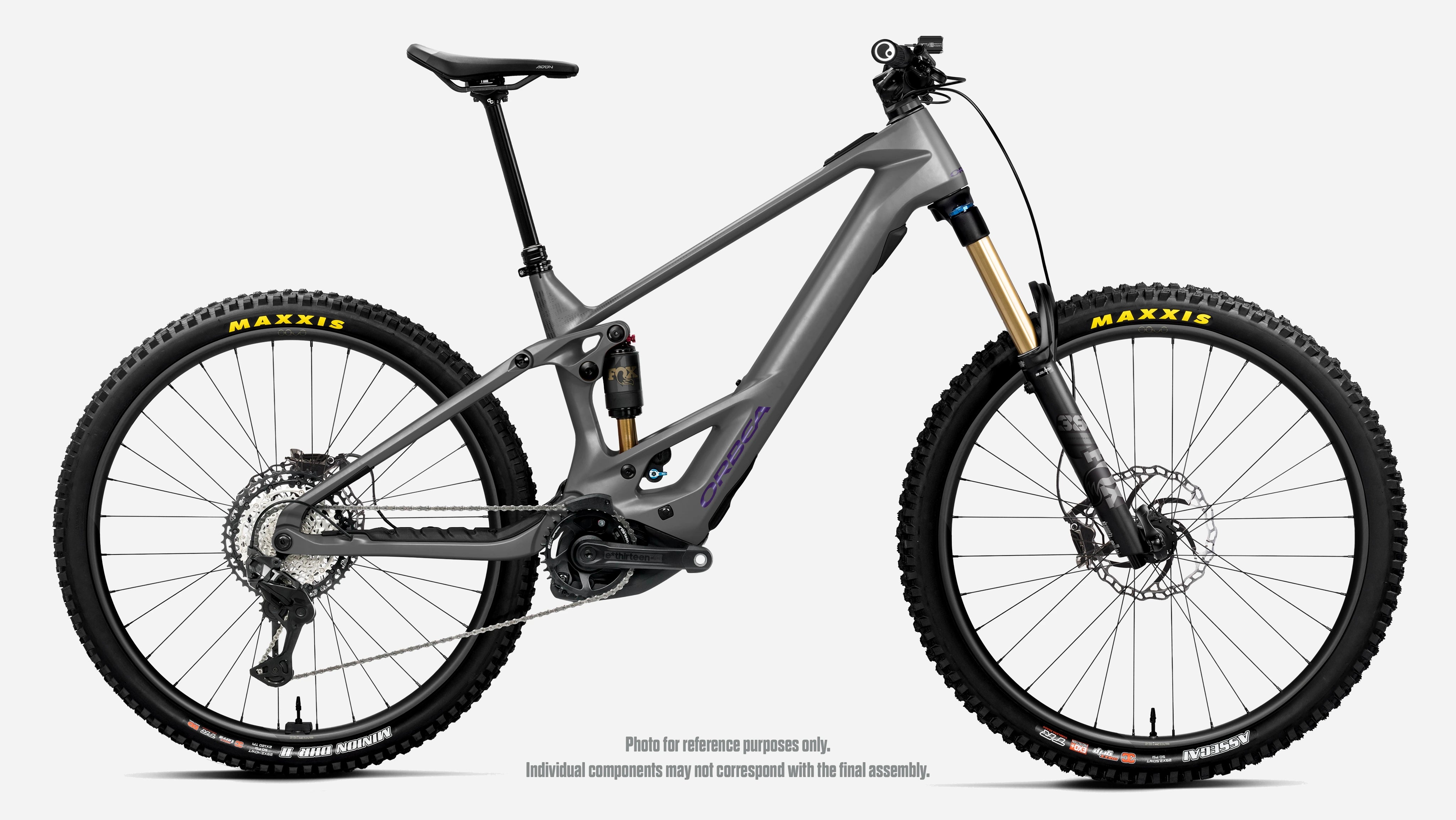

Wild TR H10
Power for the biggest terrain
The Orbea Wild TR H10 is a MY27 Orbea Wild TR e-MTB built for riders who want Bosch-powered trail capability in a slightly sharper, trail-focused Wild platform. Wild TR uses 29” wheels, a 448mm chainstay, 64.
Best for: Technical e-MTB riding, steep climbs and confident enduro descents.
Available to order
$500 deposit. Australian warehouse stock usually arrives in 3–5 business days; Spain factory stock generally takes 7–14 days. We will confirm availability before finalising your order.
At a glance
Motor
Bosch Performance Line CX BDU3843
Battery
Bosch Powertube 750Wh Horizontal BBP3770
Frame
Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148
Fork
Fox 36 Float Performance 150, Grip 3-Pos, 15x110
Drivetrain
Shimano Deore M7200 SGS Shadow Plus
Wheels
Race Face AR 30c Tubeless Ready
Key highlights
Hydro alloy Wild TR frame: 29” wheels, Concentric Boost 12x148 and a trail-focused 448mm chainstay across all sizes.
Bosch CX power: Bosch Performance Line CX motor with Powertube 750Wh battery for long trail days.
Optional range extender: compatible with Bosch PowerMore 250Wh range extender where available.
Trail geometry: 64.5° head angle, 78.4° seat angle and size-specific reach from 440mm to 509.47mm.
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
E-bike system
Seatpost Remote
Shimano SL-MT500 I-Spec EV
Battery
Bosch Powertube 750Wh Horizontal BBP3770
Motor
Bosch Performance Line CX BDU3843
Display
Bosch System Controller BRC3100
Charger
Bosch Charger 4A (230V) BPC3400
Remote
Bosch Mini Remote BRC3300
Frameset
Frame
Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148
Headset
Alloy 1-1/2", Black Oxidated Bearing
Suspension
Fork
Fox 36 Float Performance 150, Grip 3-Pos, 15x110
Shock
Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm
Brakes
Brakes
Shimano MT620 Hydraulic Disc
Drivetrain
Rear Derailleur
Shimano Deore M7200 SGS Shadow Plus
Shifters
Shimano Deore M6200 I-Spec EV
Cassette
Shimano CS-M6200 10-51t 12-Speed
Chain
Shimano M6100
Chainguide
e*thirteen Bosch CX Gen5 CL55 32-36t
Crank
e*thirteen Helix Core
Wheels and tyres
Wheels
Race Face AR 30c Tubeless Ready
Tyres
Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
Cockpit and contact points
Stem
OC Mountain Control MC21, 0º
Handlebar
OC Mountain Control MC30, Rise20, Width 800
Saddle
Selle Royal Vivo Sport Men 145 x 269mm
Product details
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Specifications are supplied by Orbea and may change without notice. Contact us if you would like us to confirm the current build before ordering.
