Product Info
Details + Specs

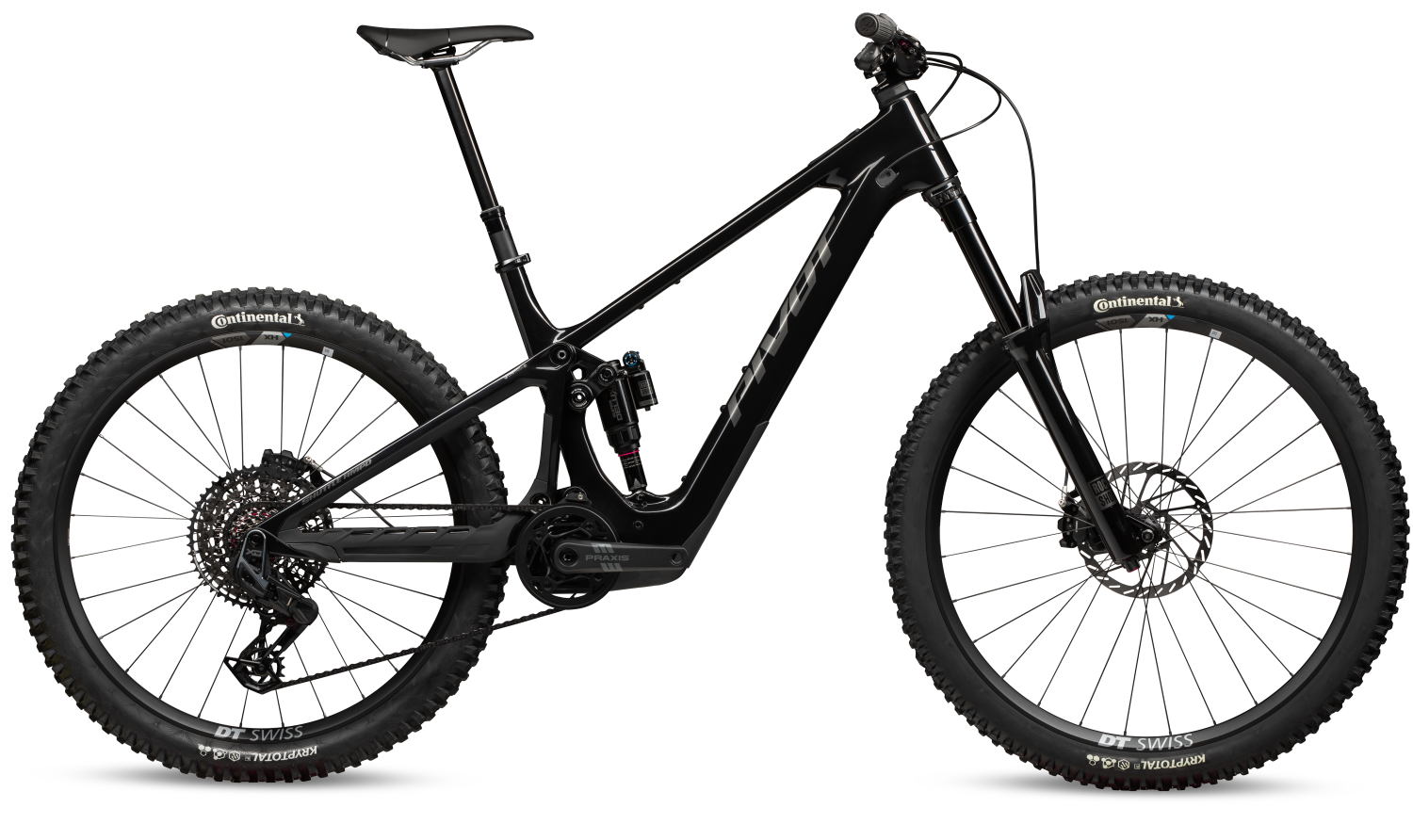

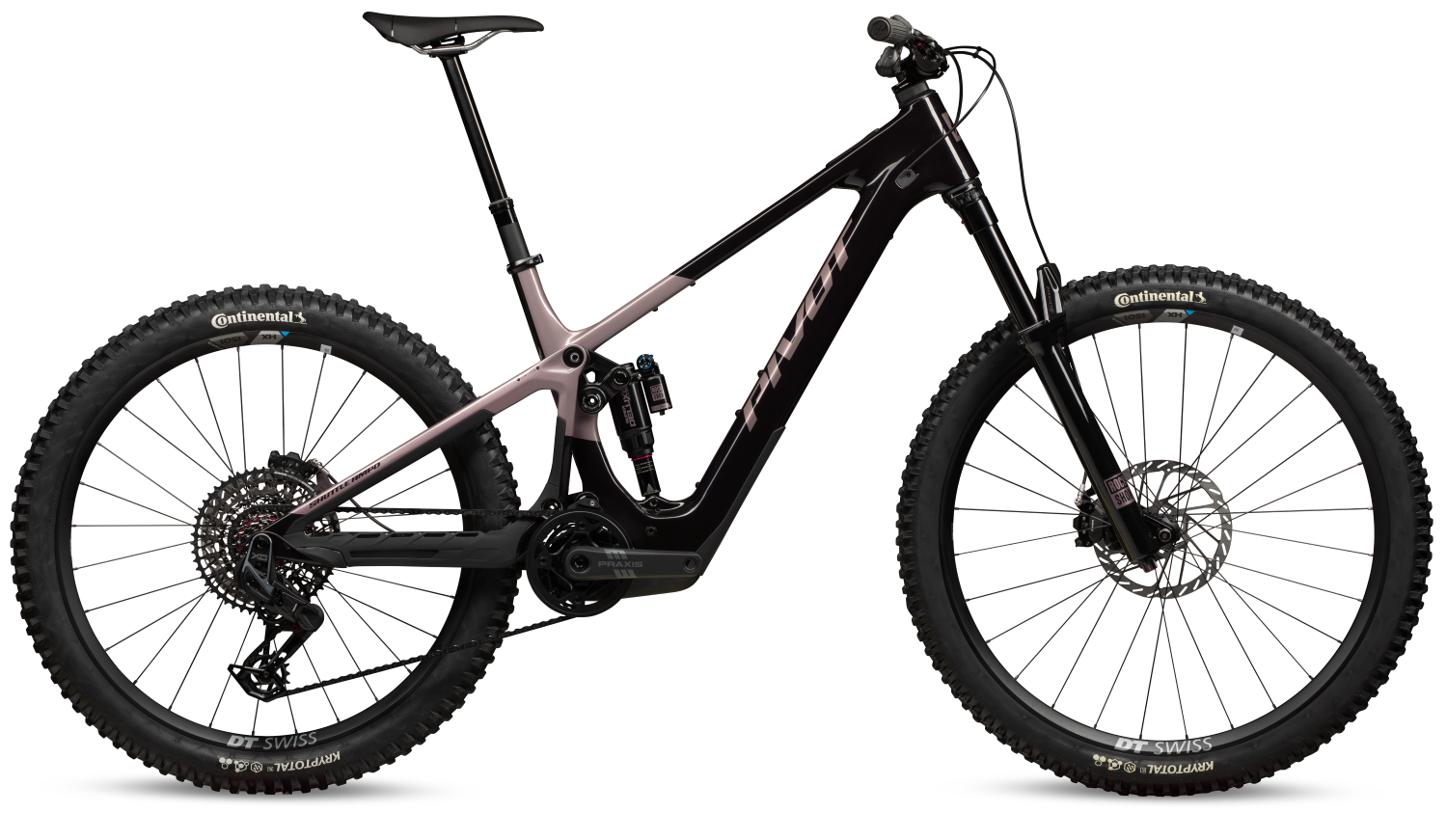

Shuttle AMP'd Pro X0
Full-volume carbon enduro e-MTB
The Shuttle AMP'd Pro X0 pairs Pivot's hollow-core carbon frame with an Avinox M2S motor and 800Wh battery, then adds RockShox ZEB Ultimate and Super Deluxe Ultimate suspension and SRAM X0 Eagle Transmission. It is the sweet spot of the range for riders who want a serious enduro-capable e-MTB without stepping up to the XX build.
Best for: Aggressive trail and enduro e-MTB riding with top-shelf suspension and wireless Transmission shifting.
Order information
This model is available to order. Order in store, or secure yours online with a $500 deposit. We will confirm the delivery ETA when your order is placed, and the final payment amount and timing are confirmed once the bike is allocated. Call or email us and we will get it started.
At a glance
Motor
Avinox M2S, 800Wh battery
Frame
Carbon, 150mm rear travel
Fork
RockShox ZEB Ultimate, 160mm
Shock
RockShox Super Deluxe Ultimate
Drivetrain
SRAM X0 Eagle Transmission
Wheels
DT Swiss Hybrid HX1501, mixed wheel
Key highlights
Avinox M2S drive unit with 800Wh battery
RockShox ZEB Ultimate fork and Super Deluxe Ultimate shock
SRAM X0 Eagle Transmission with AXS Pod controller
Carbon wheel upgrade available on request (Pro level kits)
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
E-bike system
Drive unit
Avinox M2S drive unit
Battery
Avinox 800Wh long-range battery
Display
Full-colour OLED touchscreen display
Controls
Wireless Avinox remotes
Frameset
Frame
Shuttle AMP'd ultra-light Hollow Core carbon frame
Rear travel
150mm progressive rear suspension
Wheel setup
Mixed wheel: 29" front, 27.5" rear
Geometry
Geo flip chip via upper link mount
Sizes
XS, S, M, L, XL
Routing
Full internal routing with Pivot Cable Port System
Frame protection
Injection-moulded rubberised frame protection
Tool system
Pivot Dock tool system compatible; water bottle clearance on all sizes
Geometry (XS / S / M / L / XL)
Seat tube length
343 / 378 / 399 / 432 / 470 mm
Top tube length
576 / 606 / 633 / 650 / 673 mm
Head tube length
95 / 110 / 120 / 130 / 140 mm
Head tube angle
63.3° (XS–L), 63.4° (XL)
Seat tube angle
76.1°
Chainstay length
443 mm
Bottom bracket height
335 mm (drop 23 mm)
Standover
640 / 658 / 666 / 666 / 667 mm
Wheelbase
1189 / 1219 / 1248 / 1267 / 1292 mm
Stack
616 / 636 / 645 / 655 / 664 mm
Reach
416 / 431 / 456 / 471 / 491 mm
Suspension
Rear shock
RockShox Super Deluxe Ultimate
Fork
RockShox ZEB Ultimate, 29", 44mm offset, 160mm travel
Brakes
Brakes
SRAM Maven Silver 4-piston
Rotors
SRAM HS2 6-bolt, 200mm front and rear
Drivetrain
Rear derailleur
SRAM X0 Eagle Transmission 12-speed
Shifter
SRAM AXS Pod Controller
Crankset
Praxis Alloy eCranks E-MTB, 34t, 155mm
Cassette
SRAM Eagle Transmission 10-52t
Chain
SRAM X0 Eagle Flattop 12-speed
Wheels and tyres
Wheelset
DT Swiss Hybrid HX1501, 30mm, mixed wheel size
Hub spacing
Front 15x110mm, rear 12x157mm
Tyres
Continental Kryptotal, Super Soft compound, Enduro casing (29" x 2.4" front)
Cockpit and contact points
Handlebar
Phoenix Team Carbon: 20mm rise 760mm (XS), 20mm rise 780mm (S), 35mm rise 780mm (M-XL)
Grips
Phoenix Factory Lock-On
Stem
Phoenix Team Enduro V2: 32mm (XS), 40mm (S-L), 50mm (XL)
Seatpost
OneUp Dropper V3: 150mm (XS-S), 180mm (M), 210mm (L), 240mm (XL)
Saddle
Pivot Team E-Bike
Headset
Pivot Precision sealed cartridge
Specifications are supplied by Pivot Cycles Australia and may change without notice. Contact us if you would like us to confirm the current build before ordering.
