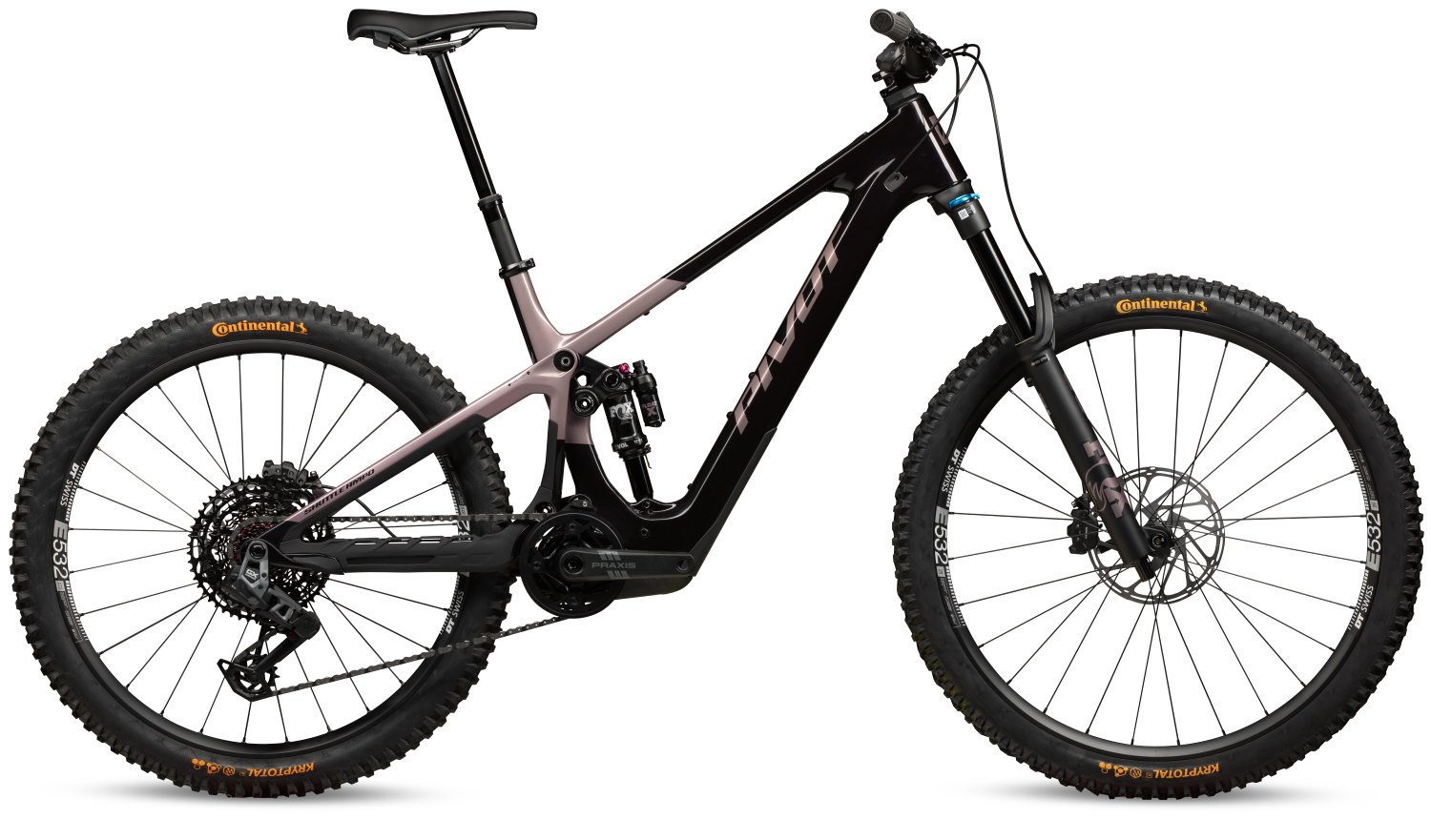

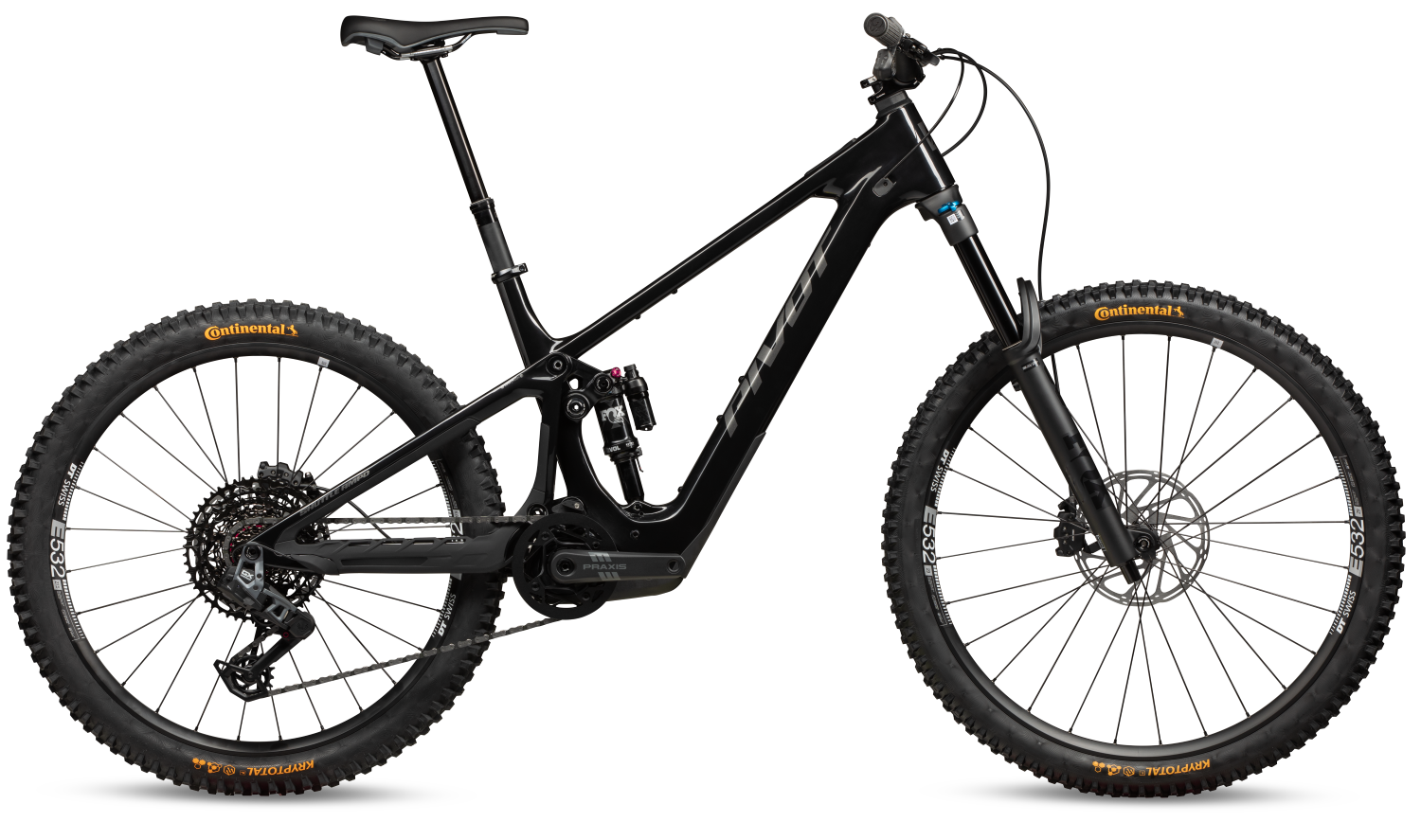

Shuttle AMP'd Ride GX
Full-volume carbon enduro e-MTB
The Shuttle AMP'd Ride GX is the entry point to Pivot's new carbon enduro e-MTB. It keeps the same Hollow Core carbon frame, Avinox M2S motor, 800Wh battery and 150mm of progressive travel as the top builds, with Fox Performance suspension, SRAM GX Eagle Transmission and SRAM Maven brakes.
Best for: Riders who want the full Shuttle AMP'd chassis and power system at the most accessible price.
Order information
This model is available to order. Order in store, or secure yours online with a $500 deposit. We will confirm the delivery ETA when your order is placed, and the final payment amount and timing are confirmed once the bike is allocated. Call or email us and we will get it started.
At a glance
Motor
Avinox M2S, 800Wh battery
Frame
Carbon, 150mm rear travel
Fork
Fox Performance 38, 160mm
Shock
Fox Performance Float X
Drivetrain
SRAM GX Eagle Transmission
Wheels
DT Swiss E532, mixed wheel
Key highlights
Same carbon frame and Avinox M2S / 800Wh system as the top builds
Fox Performance 38 fork and Float X shock
SRAM GX Eagle Transmission with AXS Pod controller
SRAM Maven 4-piston brakes
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
E-bike system
Drive unit
Avinox M2S drive unit
Battery
Avinox 800Wh long-range battery
Display
Full-colour OLED touchscreen display
Controls
Wireless Avinox remotes
Frameset
Frame
Shuttle AMP'd ultra-light Hollow Core carbon frame
Rear travel
150mm progressive rear suspension
Wheel setup
Mixed wheel: 29" front, 27.5" rear
Geometry
Geo flip chip via upper link mount
Sizes
XS, S, M, L, XL
Routing
Full internal routing with Pivot Cable Port System
Frame protection
Injection-moulded rubberised frame protection
Tool system
Pivot Dock tool system compatible; water bottle clearance on all sizes
Geometry (XS / S / M / L / XL)
Seat tube length
343 / 378 / 399 / 432 / 470 mm
Top tube length
576 / 606 / 633 / 650 / 673 mm
Head tube length
95 / 110 / 120 / 130 / 140 mm
Head tube angle
63.3° (XS–L), 63.4° (XL)
Seat tube angle
76.1°
Chainstay length
443 mm
Bottom bracket height
335 mm (drop 23 mm)
Standover
640 / 658 / 666 / 666 / 667 mm
Wheelbase
1189 / 1219 / 1248 / 1267 / 1292 mm
Stack
616 / 636 / 645 / 655 / 664 mm
Reach
416 / 431 / 456 / 471 / 491 mm
Suspension
Rear shock
Fox Performance Float X
Fork
Fox Performance 38, 29", 44mm offset, GRIP damper, 160mm travel
Brakes
Brakes
SRAM Maven 4-piston
Rotors
SRAM Centerline 2.0 6-bolt, 200mm front and rear
Drivetrain
Rear derailleur
SRAM GX Eagle Transmission 12-speed
Shifter
SRAM AXS Pod Controller
Crankset
Praxis Alloy eCranks E-MTB, 34t, 155mm
Cassette
SRAM Eagle Transmission 10-52t
Chain
SRAM Eagle 70 Flattop 12-speed
Wheels and tyres
Wheelset
DT Swiss E532, 30mm, mixed wheel size
Hub spacing
Front 15x110mm, rear 12x157mm
Tyres
Continental Kryptotal, Super Soft compound, Enduro casing (29" x 2.4" front)
Cockpit and contact points
Handlebar
Phoenix Race Aluminium: 20mm rise 780mm (XS-S), 35mm rise 780mm (M-XL)
Grips
Phoenix Factory Lock-On
Stem
Phoenix Team Enduro V2: 32mm (XS), 40mm (S-L), 50mm (XL)
Seatpost
OneUp Dropper V3: 150mm (XS-S), 180mm (M), 210mm (L), 240mm (XL)
Saddle
Pivot Team E-Bike
Headset
Pivot Precision sealed cartridge
Specifications are supplied by Pivot Cycles Australia and may change without notice. Contact us if you would like us to confirm the current build before ordering.
