Product Info
Details + Specs

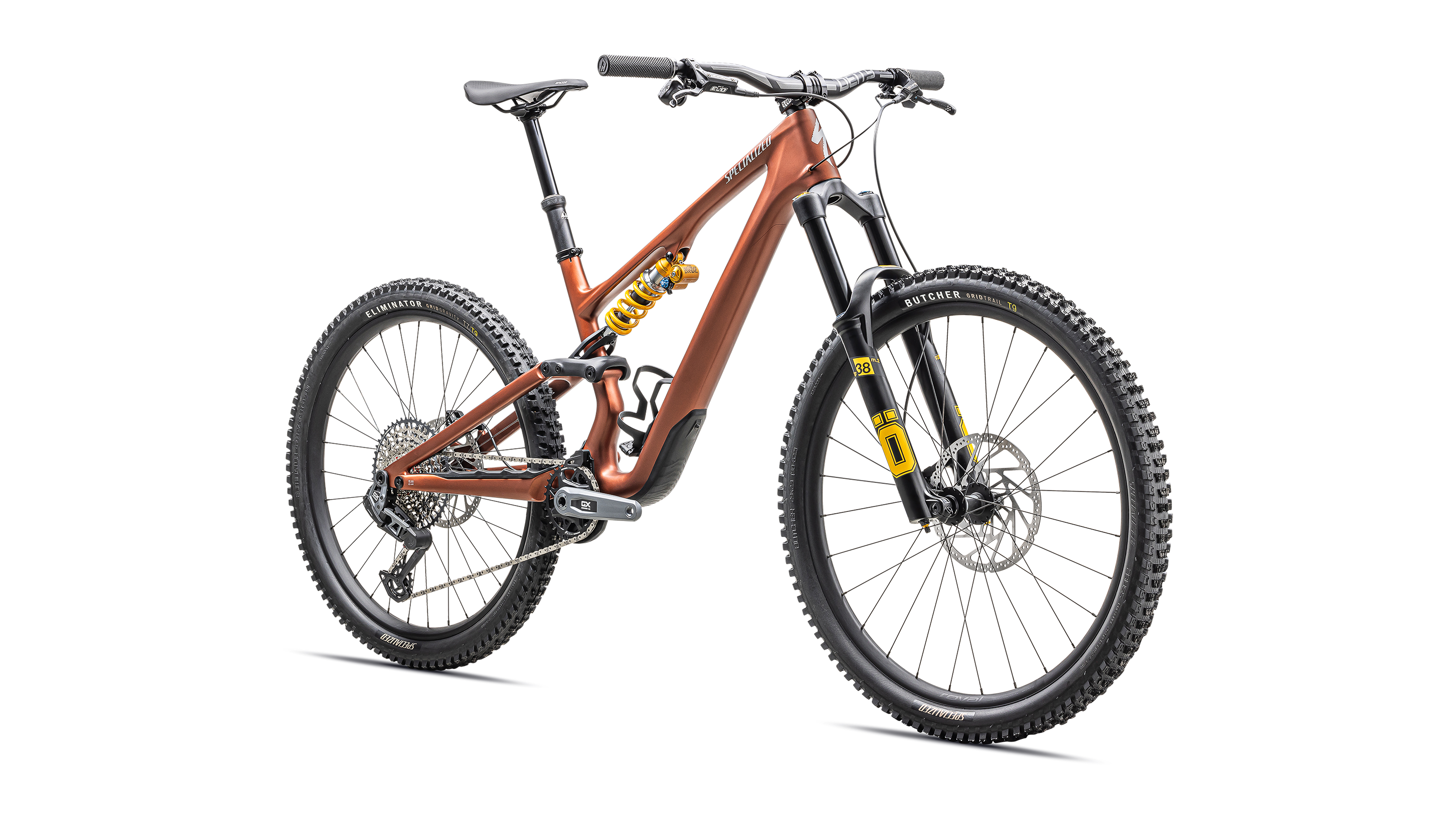

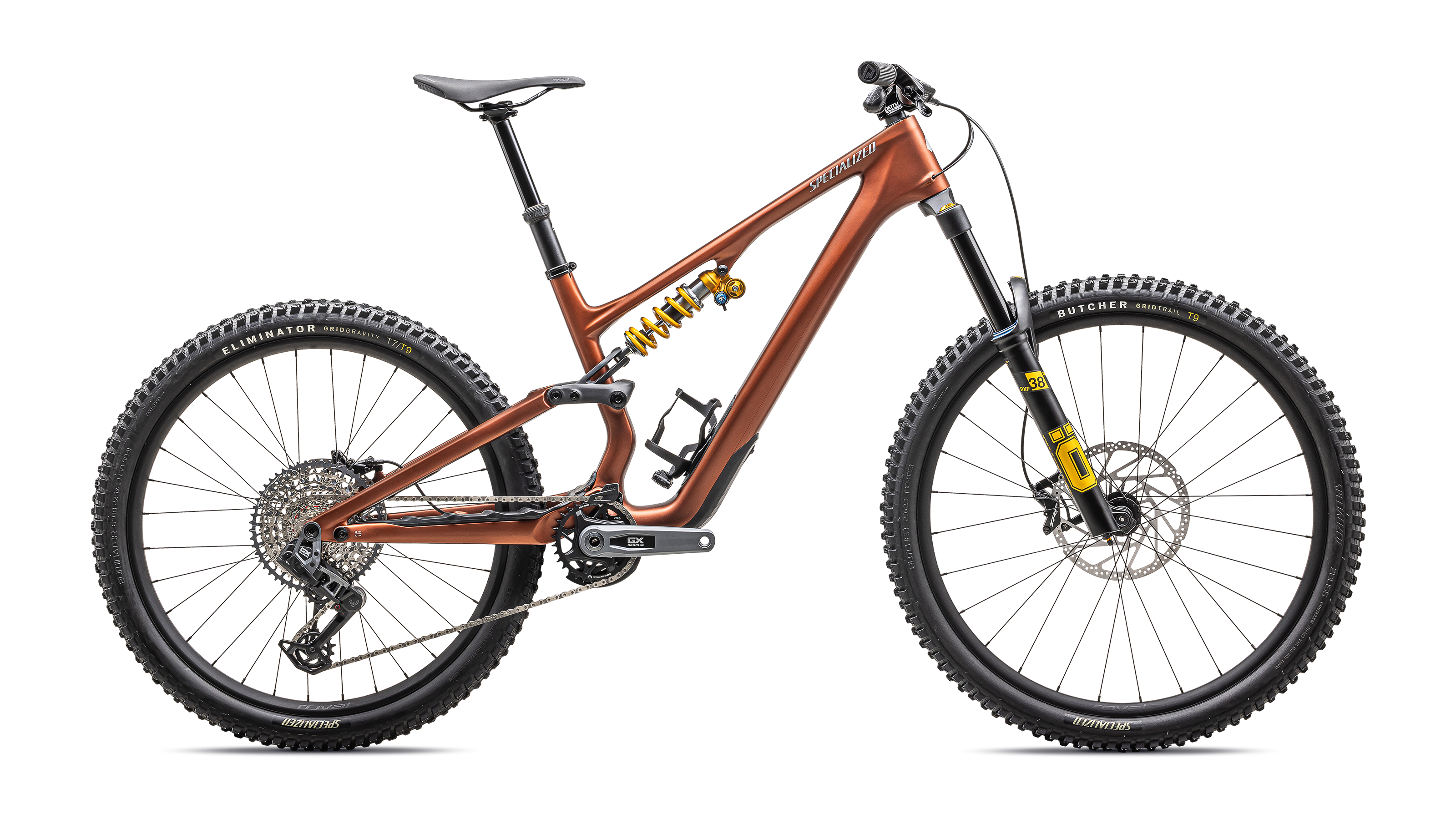

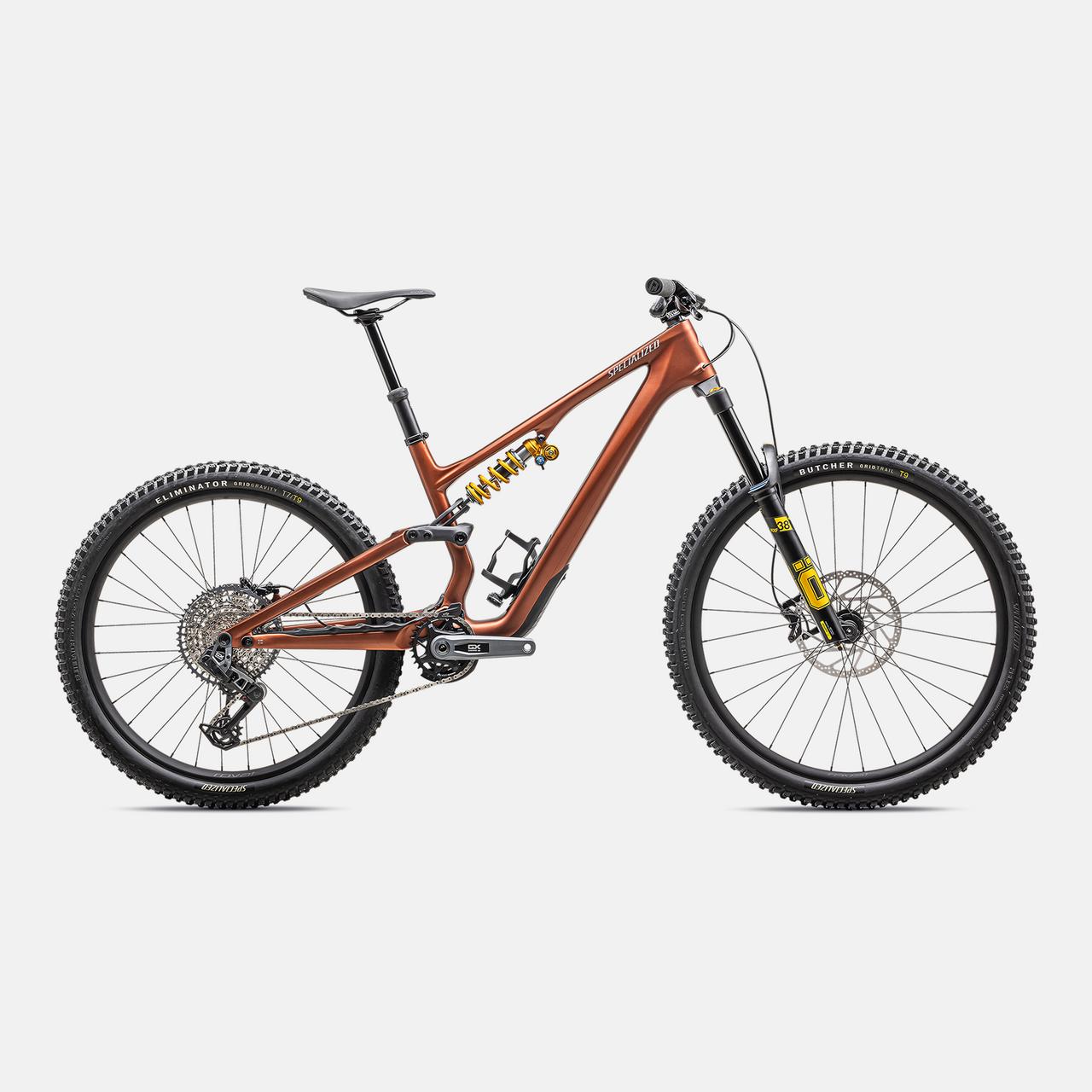

Stumpjumper 15 Öhlins Coil
One trail bike, fewer compromises
Stumpjumper 15 is here to obliterate every trade-off in the trail bike game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check.
Best for: Trail and all-mountain riding across technical climbs and descents.
At a glance
Frame
FACT 11m Carbon, 145mm rear travel, adjustable geometry, SWAT 4.0…
Fork
Öhlins RXF38 M.2 29, TTX Twin Tube damping, 160mm travel, 44mm offset…
Drivetrain
SRAM GX Eagle AXS T-Type, 12-speed
Weight
15.3kg / 33lb 11.7oz (size S4)
Shock
Öhlins TTX22 M Coil, Ride Dynamics trail tune, external rebound and…
Brakes
TRP DH-R EVO, 4-piston hydraulic disc, 220mm front / 203mm rear rotors
Key highlights
lightweight front and rear-end carbon construction, engineered as a single unit to hit the exact stiffness-to-compliance balance trail riding demands.
a 160mm-travel Öhlins RXF38 M. 2 fork pairs with an Öhlins TTX22 M Coil shock, Ride Dynamics tuned for supple, controlled damping over rough terrain.
wireless 12-speed shifting with a genuine 10-52t cassette range for climbing and descending alike.
powerful stopping power with a strong lever feel, backed by 220mm front and 203mm rear rotors.
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
Frameset
Frame
FACT 11m Carbon, 145mm rear travel, adjustable geometry, SWAT 4.0 downtube storage, threaded BB, internal cable routing, 12x148mm dropouts
Suspension
Fork
Öhlins RXF38 M.2 29, TTX Twin Tube damping, 160mm travel, 44mm offset, 15x110mm axle
Shock

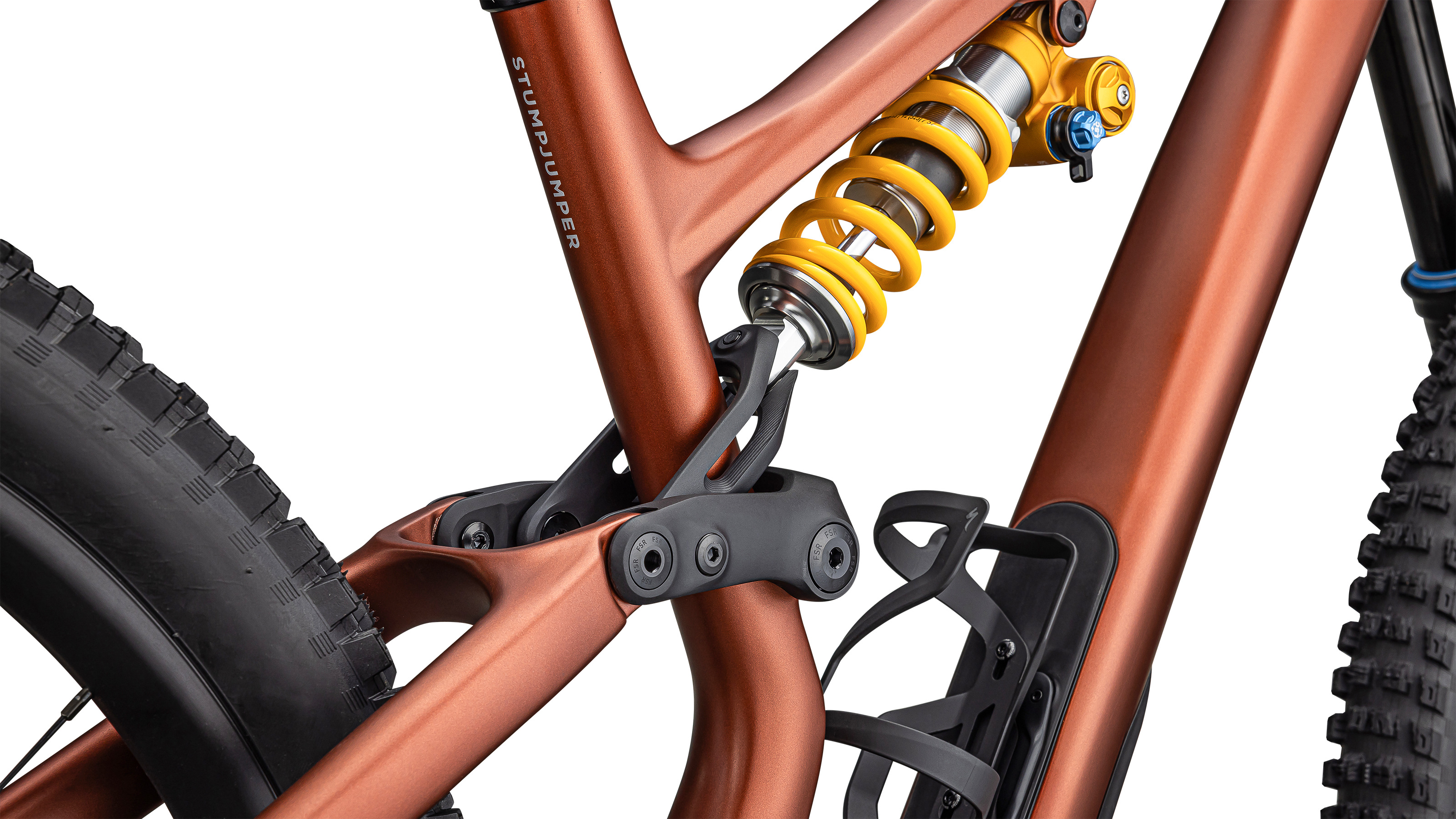

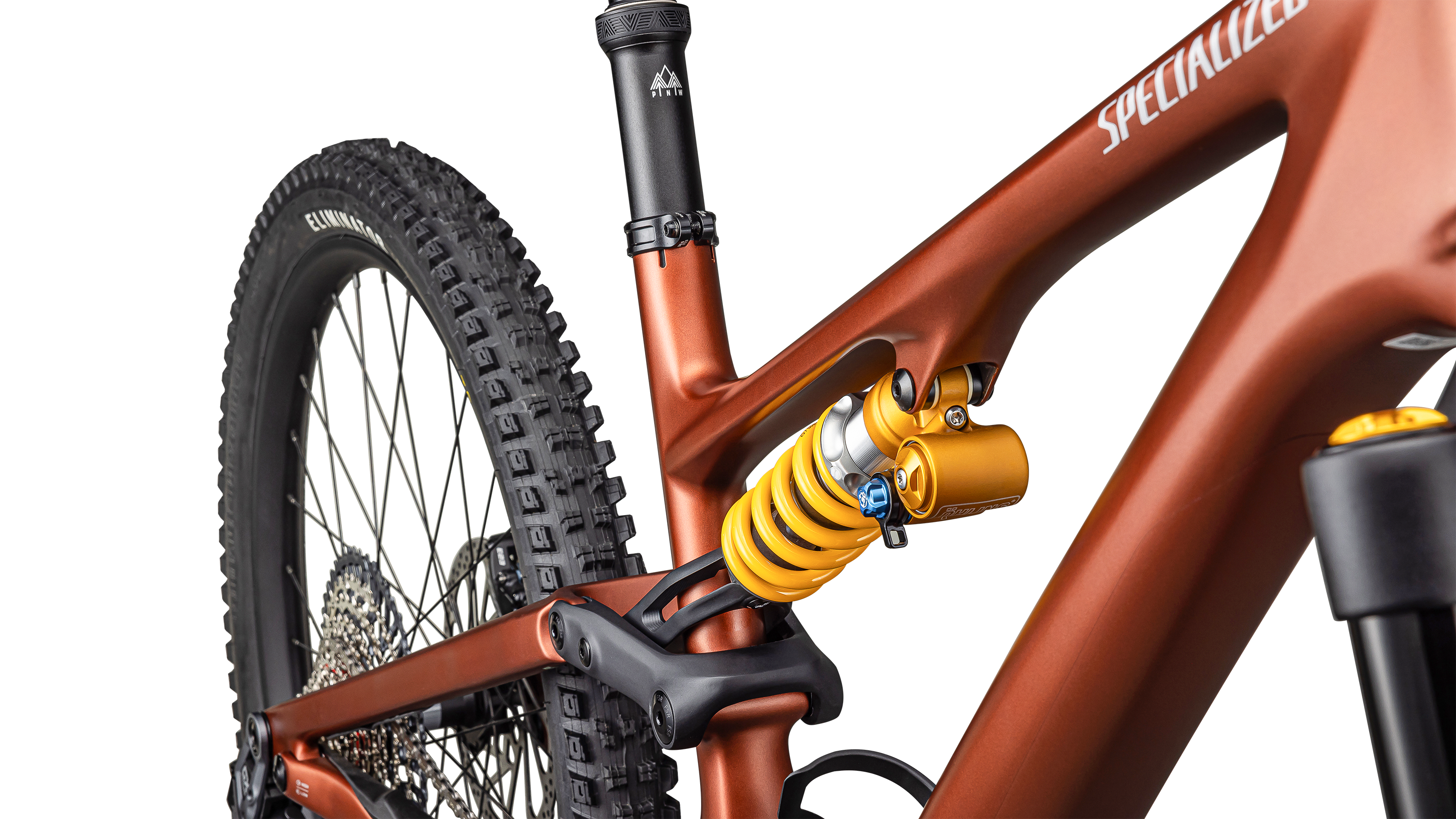

Öhlins TTX22 M Coil, Ride Dynamics trail tune, external rebound and compression adjustment
Brakes
Brakes
TRP DH-R EVO, 4-piston hydraulic disc, 220mm front / 203mm rear rotors
Drivetrain
Drivetrain/Shifters
SRAM GX Eagle AXS T-Type, wireless
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12-speed
Cassette
SRAM GX Eagle, 12-speed, 10-52t
Crankset
SRAM GX Eagle, 32t chainring
Wheels and tyres
Wheels
Roval Traverse, hookless alloy, 30mm inner width, 29" front / 27.5" rear, DT Swiss 370 hubs, Sapim Force spokes
Cockpit and contact points

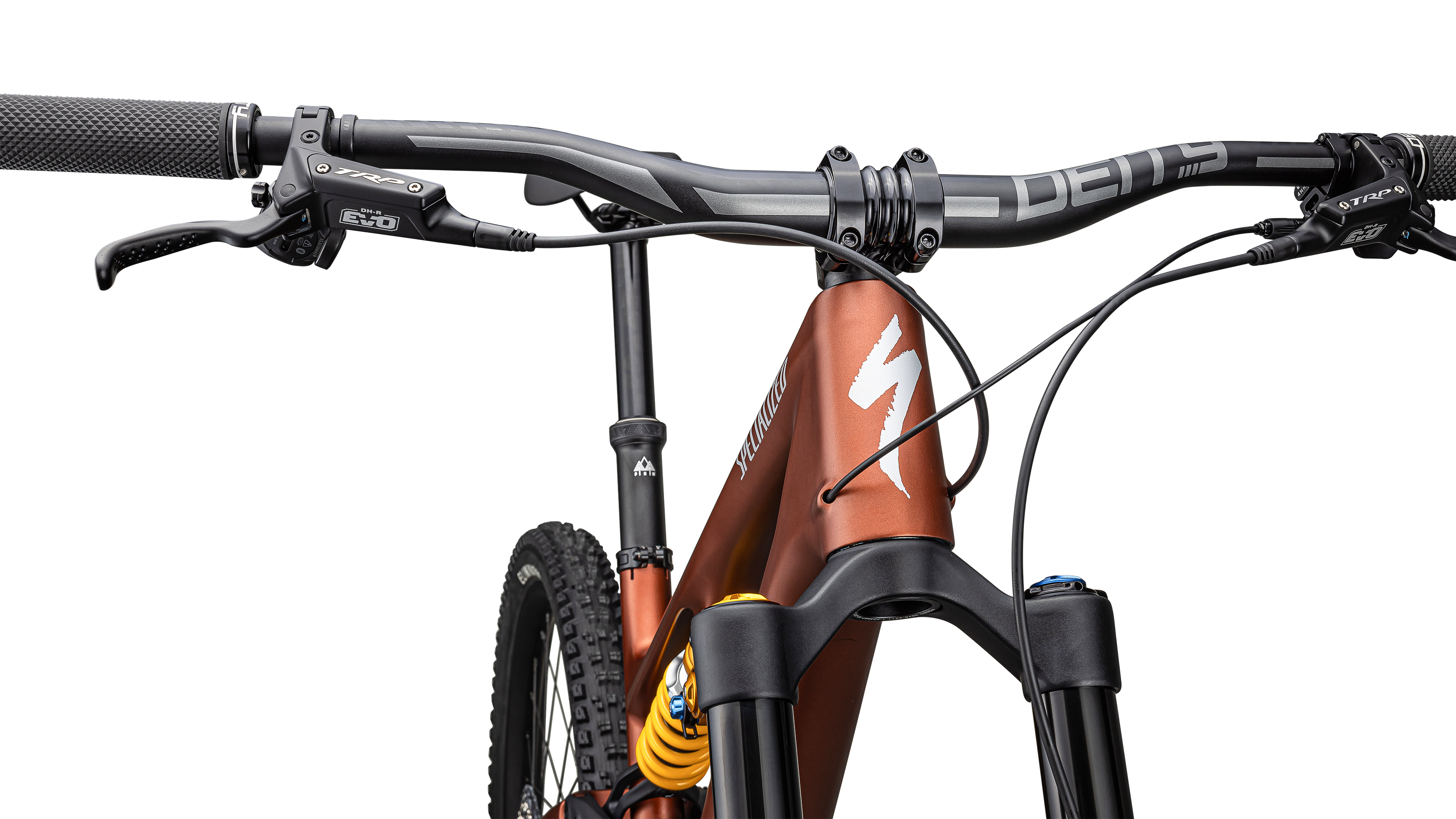

Handlebars
Deity Racepoint, alloy, 810mm width, 5° upsweep / 9° backsweep, 35mm clamp
Stem
Deity, 35mm
Grips
Deity Supacush
Seatpost
PNW Loam dropper, tool-free travel adjust
Saddle
Body Geometry Bridge Comp, hollow Cr-Mo rails
Weight and sizing
Weight
15.3kg / 33lb 11.7oz (size S4)
Weight is based on a production painted bike in the stated reference size. Actual weight can vary with colour, size and component variation. Specifications are subject to change without notice.
