Product Info
Details + Specs

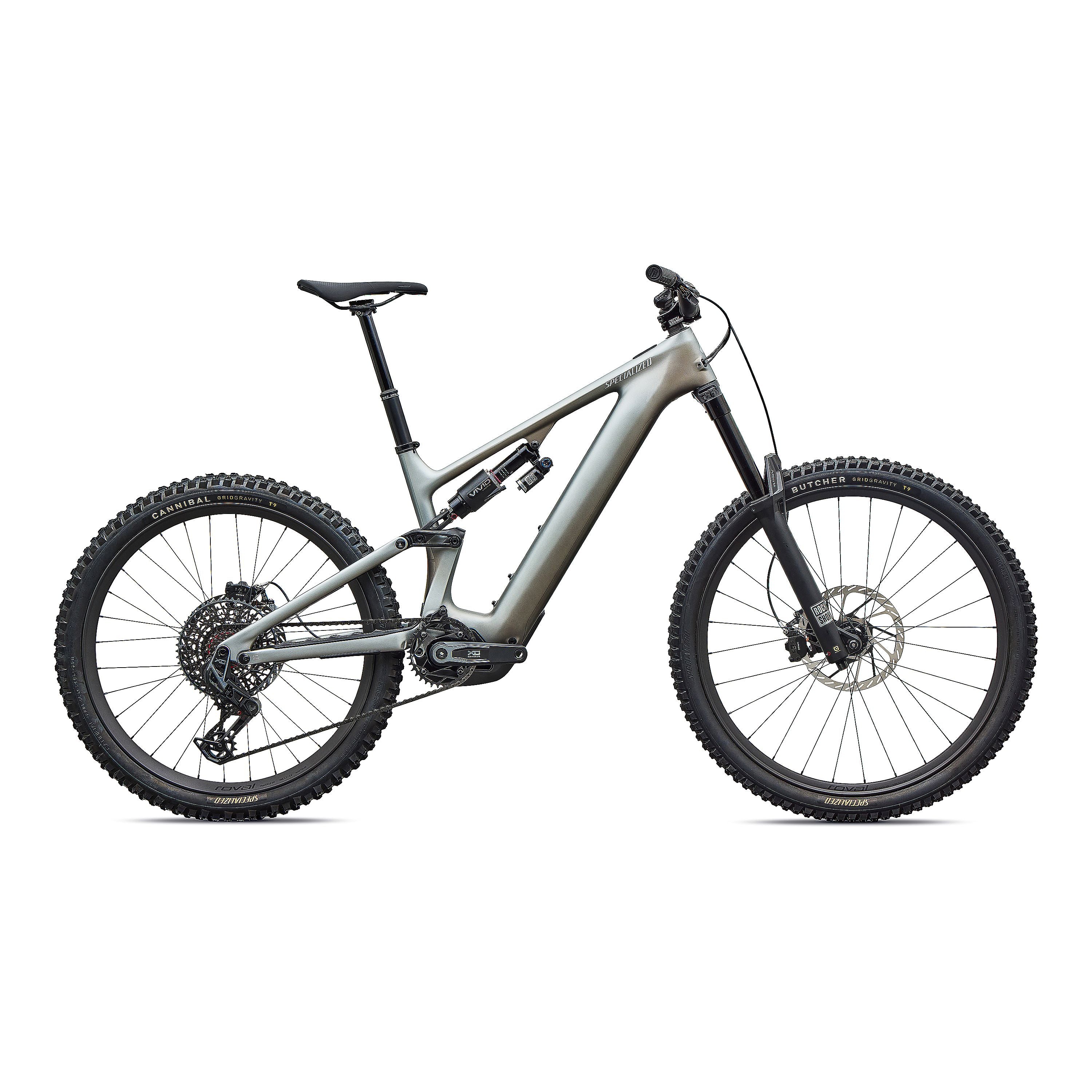

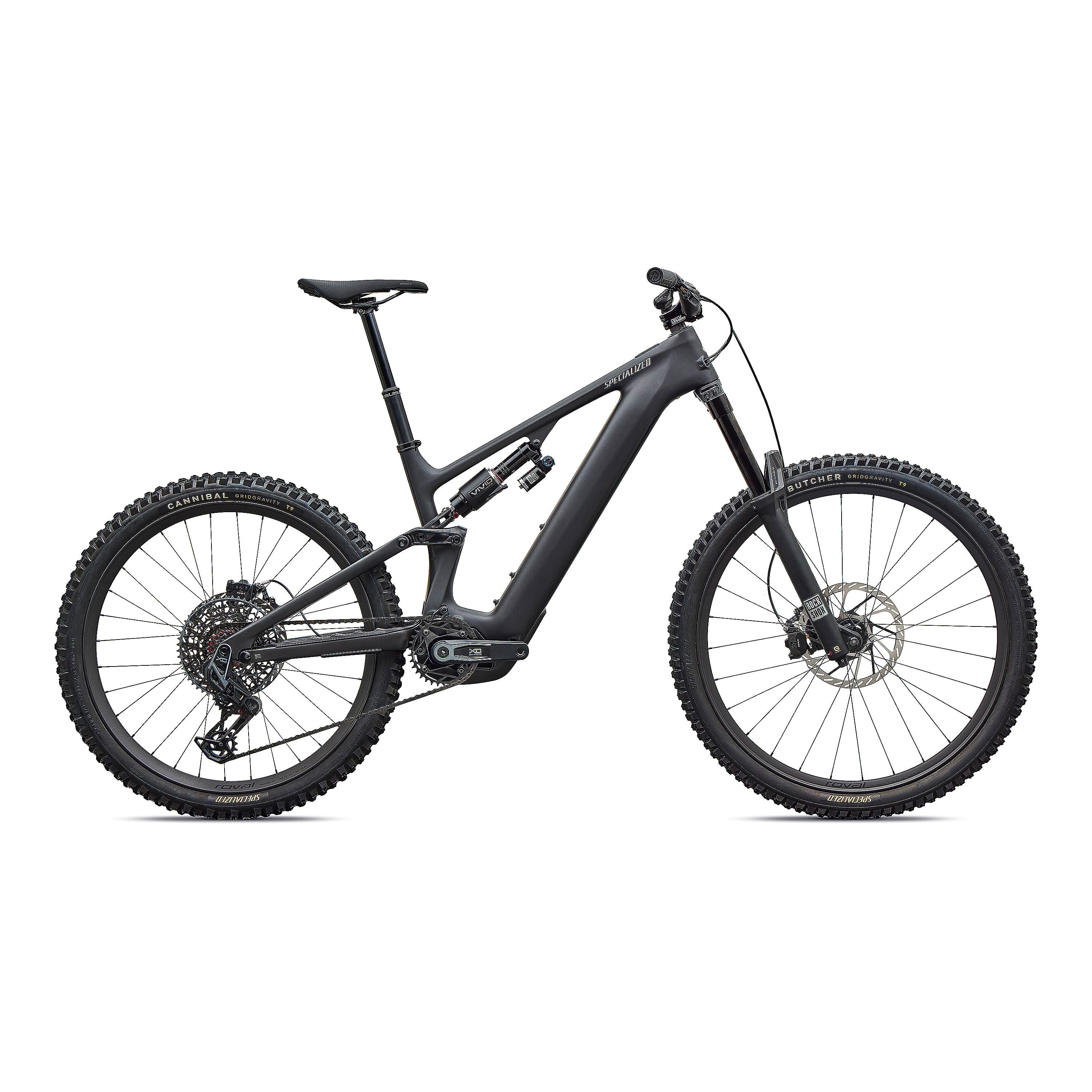

Turbo Levo 4 EVO Pro
More trail, more possibility
Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential.
Best for: Trail and all-mountain riding across technical climbs and descents.
At a glance
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Battery
Specialized Turbo X2 840Wh integrated battery pack
Frame
Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge…
Suspension
All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper…
Drivetrain
SRAM GX Eagle Transmission Derailleur
UI / remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible…
Key highlights
Frame: Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5"…
Fork: All New SRAM FS ZEB Ultimate, 29" 180mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC…
Rear Shock: All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper w/HSC and LCS adjust, and HBO adjust, rebound adjust
Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
E-bike system
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Battery
Specialized Turbo X2 840Wh integrated battery pack
UI / remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 48V System w/ SL system charger plug
Wiring Harness
Custom Specialized wiring harness
Frameset
Frame
Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper w/HSC and LCS adjust, and HBO adjust, rebound adjust
Fork
All New SRAM FS ZEB Ultimate, 29" 180mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
Brakes
Front Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm
Rear Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm
Drivetrain
Shift Levers
SRAM AXS Pod Controller w/discrete clamp
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Chain
SRAM X0 Eagle Transmission 12-Speed Flattop Chain
Crankset
SRAM XO Alloy crank, 155mm, ISIS interface
Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Wheels and tyres
Front tyre
Butcher, GRID Gravity, T9, TLR, 29x2.4"
Front Wheel
Traverse HD Carbon 29" rim, DT Swiss 350, 29, 28H, carbon rim, 30mm inner width
Rear tyre
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Rear Wheel
Traverse HD 350, 27.5", 32H, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148
Inner Tubes
Standard, Presta Valve
Cockpit and contact points
Stem
Deity, 35mm clamp, 42mm length
Handlebars
Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise
Grips
Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
Saddle
Bridge Expert with MIMIC, Hollow Ti rails
Seatpost
Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
Accessories and storage
SWAT
SWAT Internal downtube storage
Component specifications are subject to change without notice.
