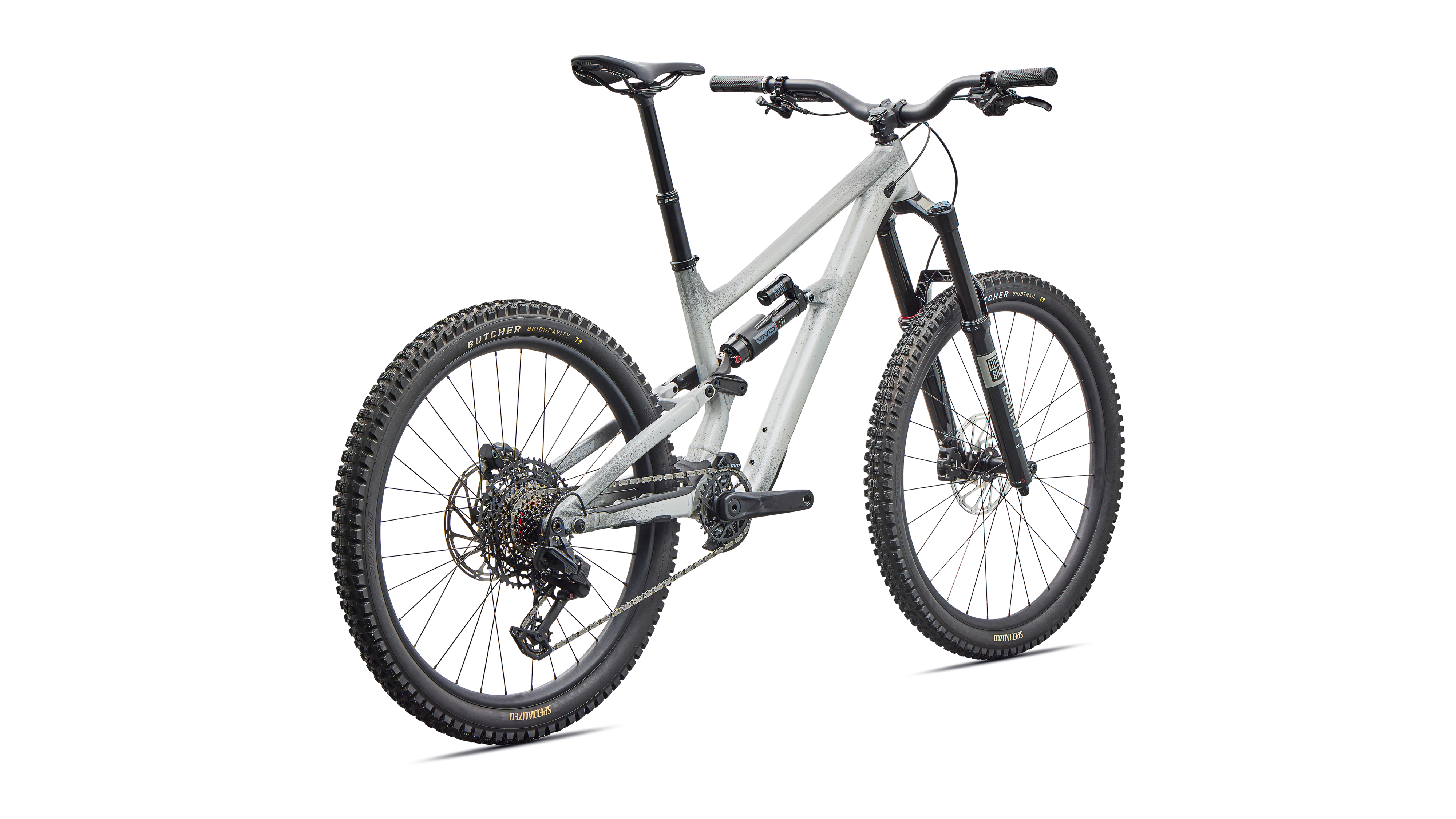

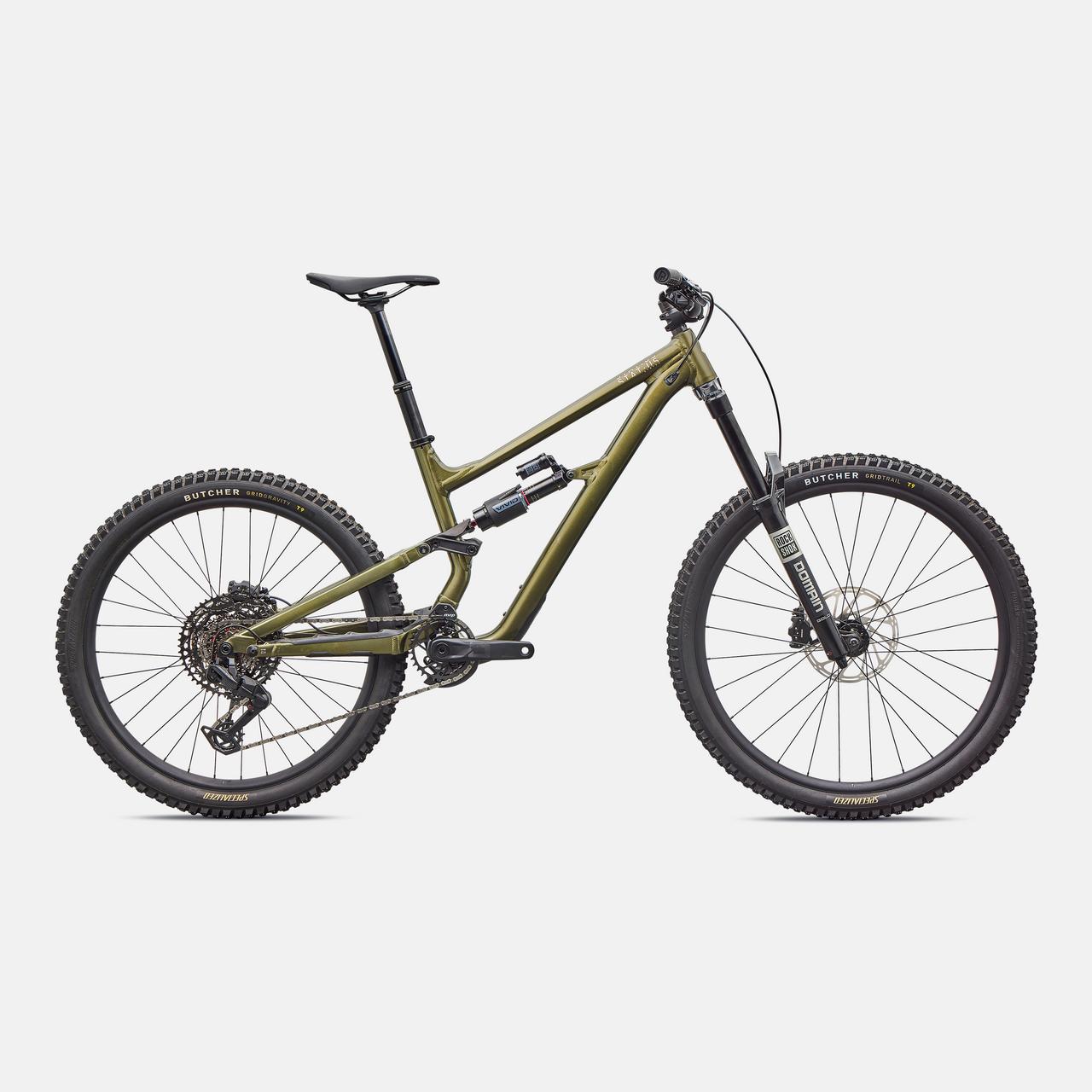

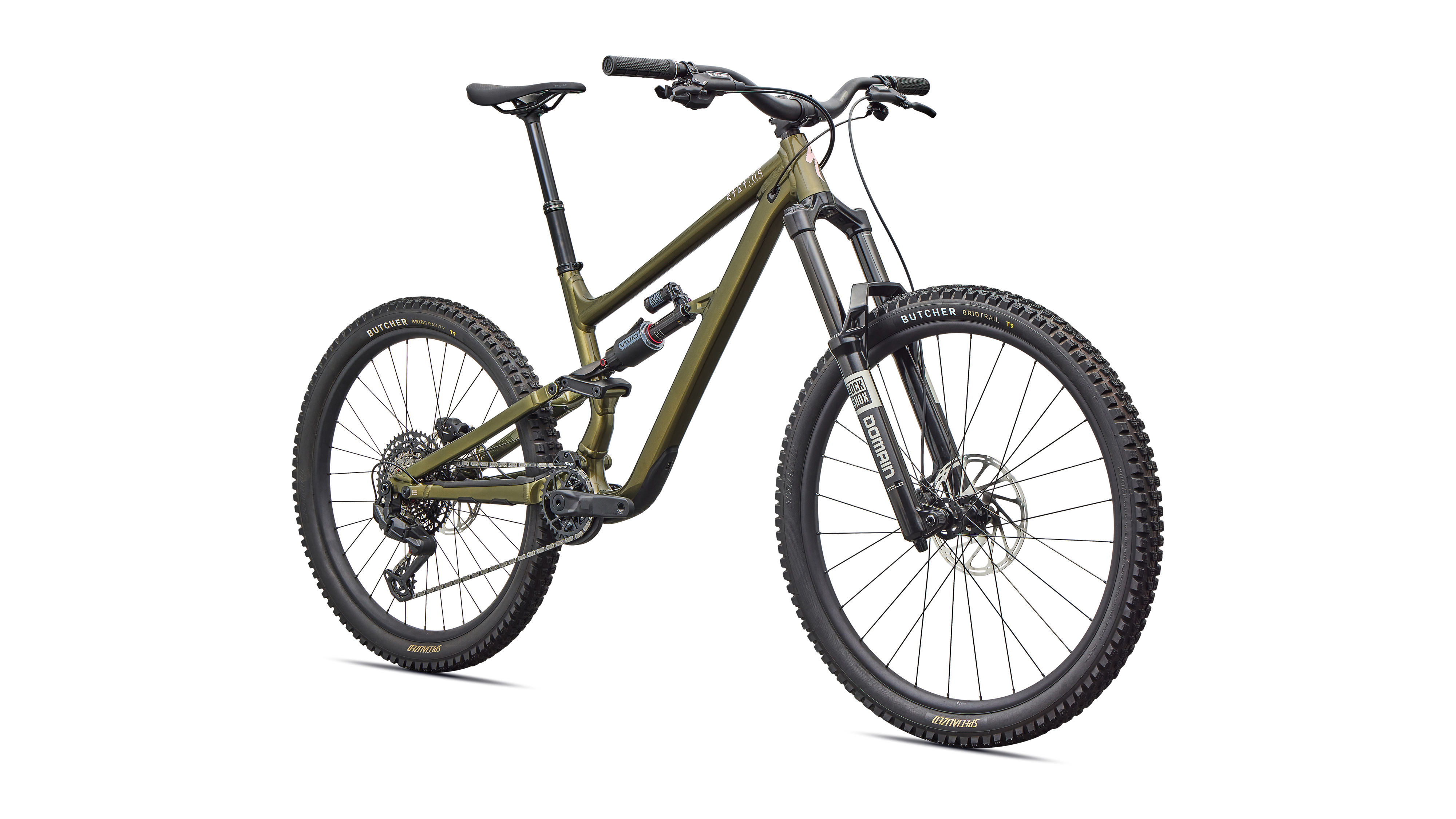

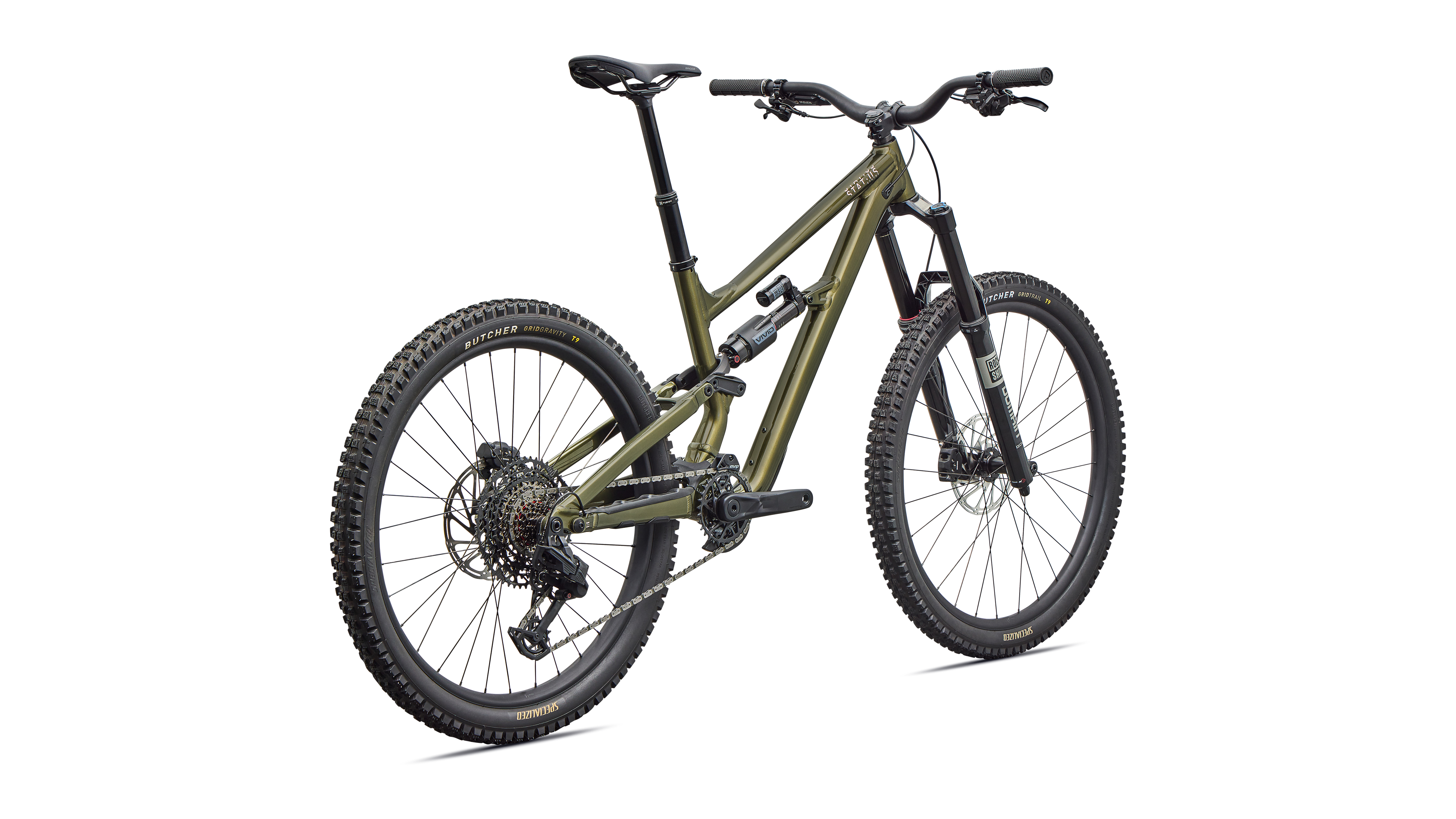

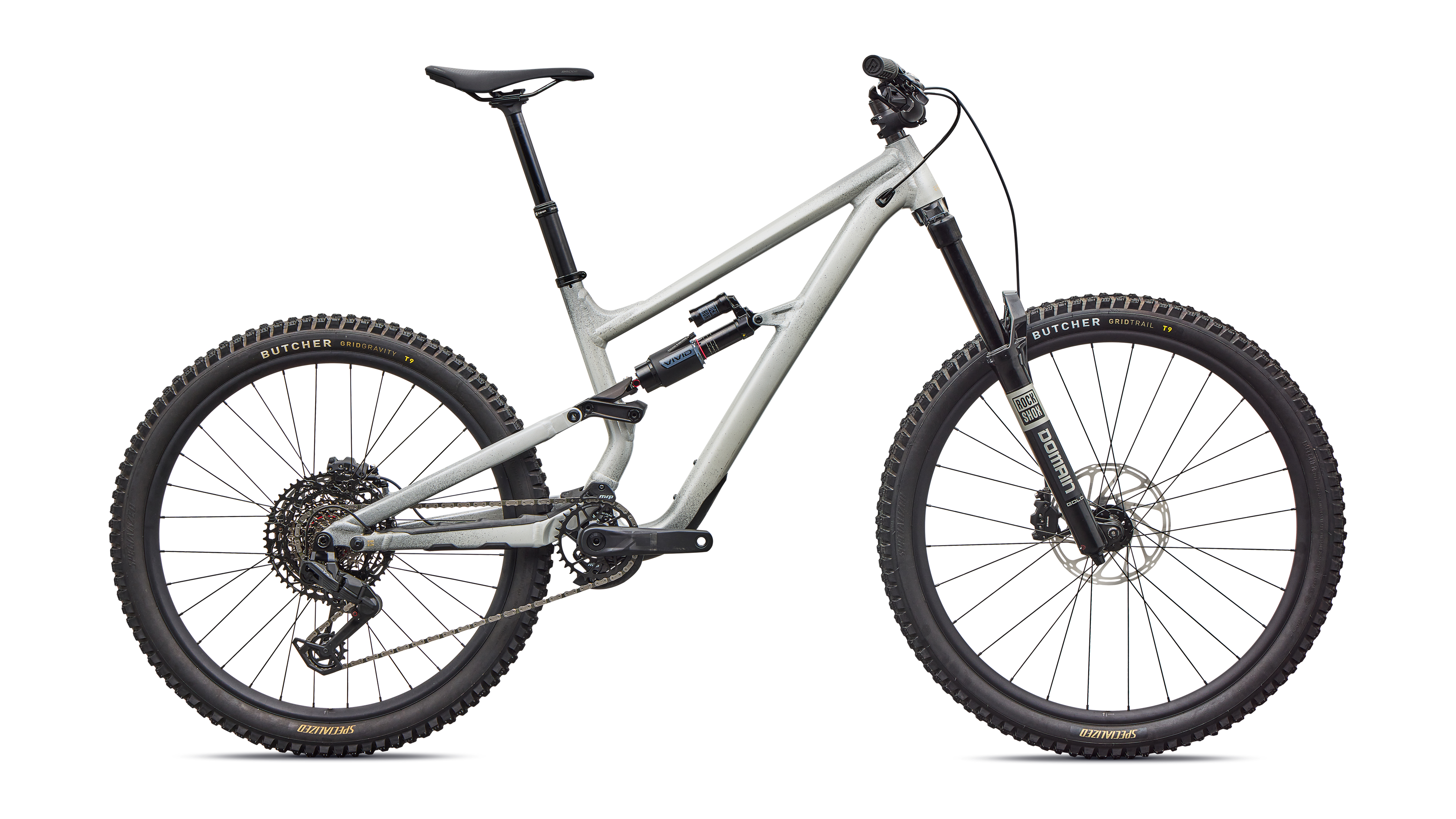

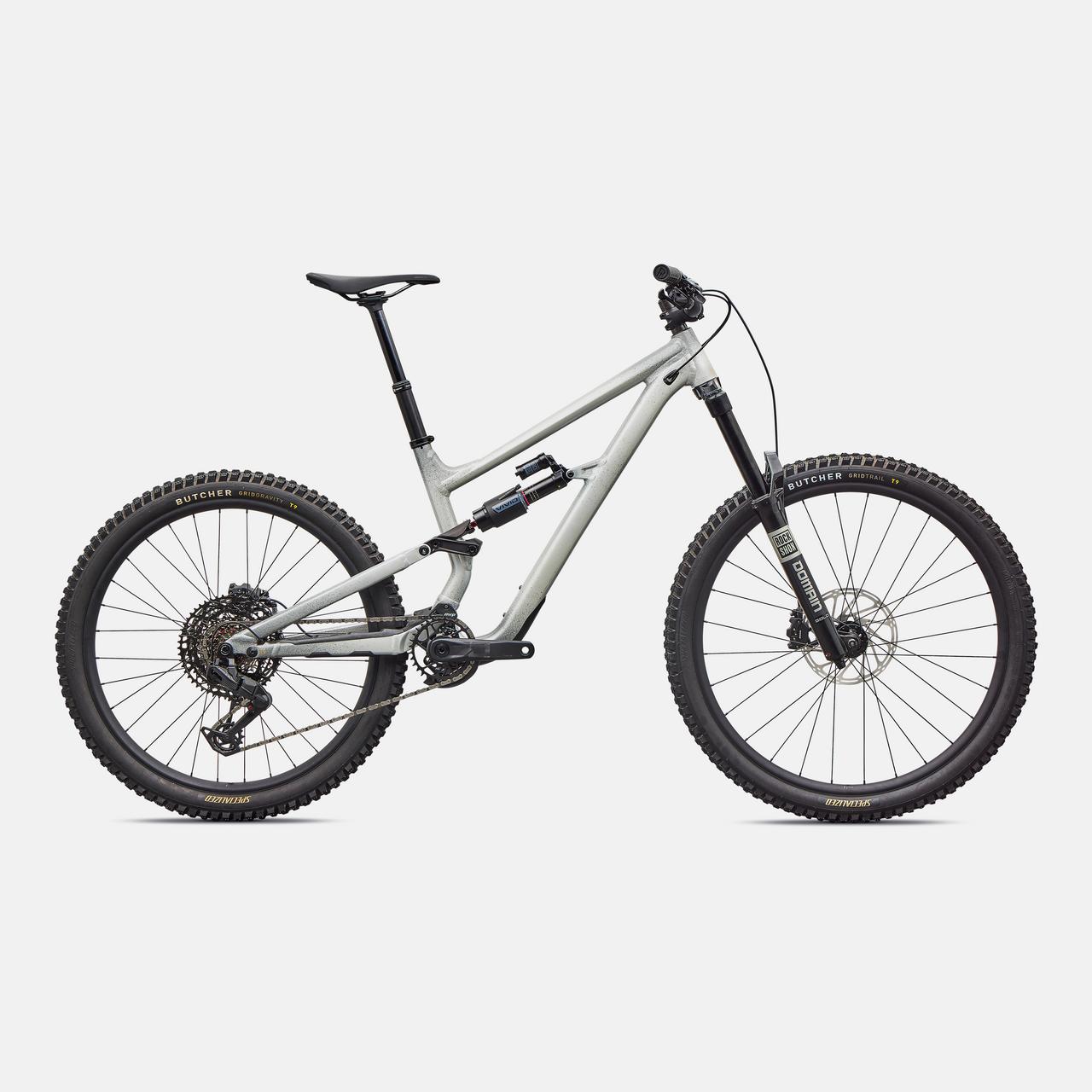

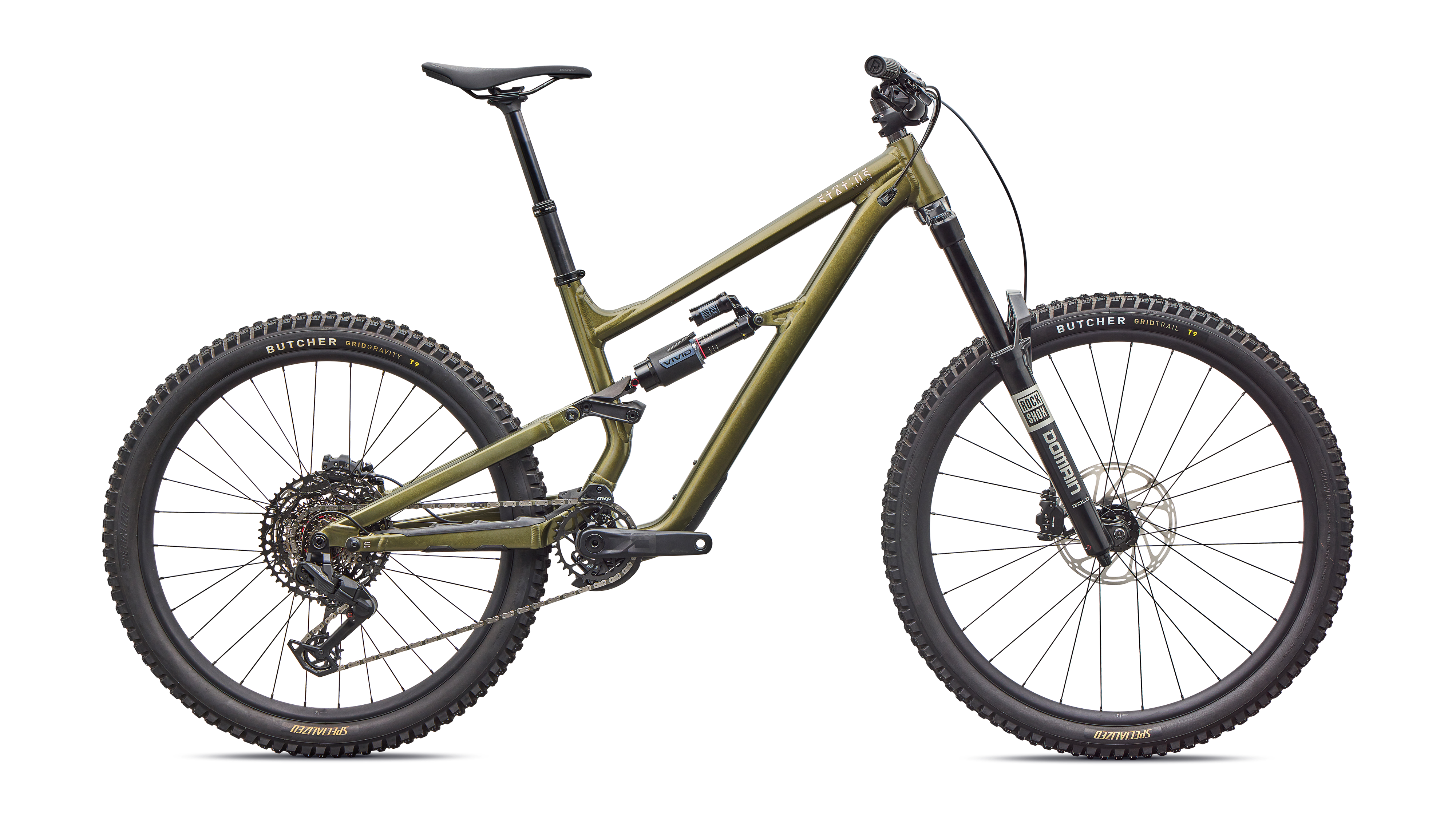

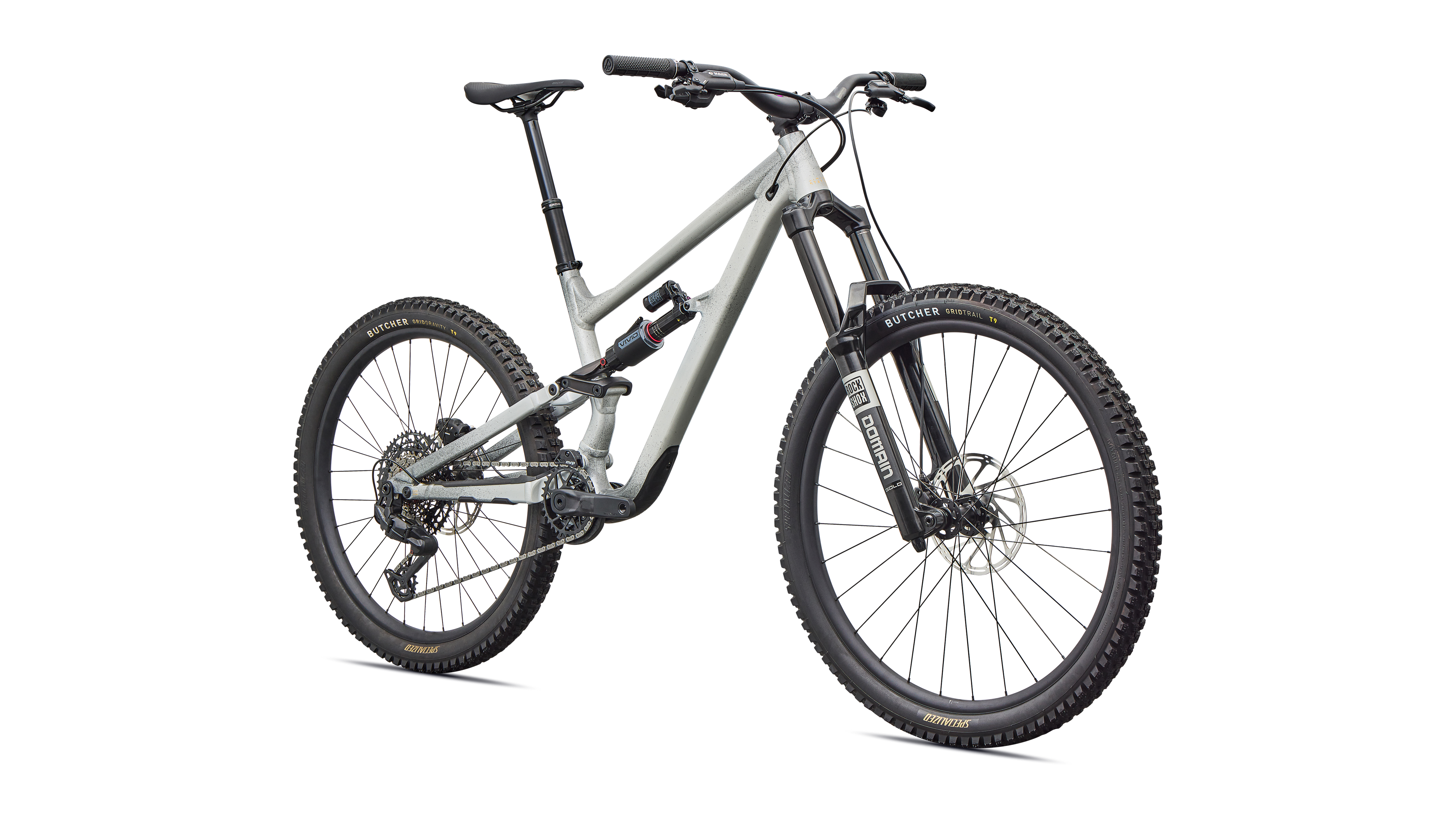

STATUS 2 170
Big-trail capability, straightforward value
STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride?
Best for: Playful trail riding, bike-park laps and gravity-focused progression.
At a glance
Frame
M5 Alloy chassis and rear-end, Trail Geometry, Horst Link…
Fork
RockShox Domain Gold RC, Isolater RC damper, 3-position compression…
Shock
RockShox Vivid, Specialized Ride Dynamics Trail Tune
Drivetrain
SRAM Eagle 70 T-Type Transmission
Weight
17.35kg (38lb 4oz), size S3
Rear Shock
RockShox Vivid, Specialized Ride Dynamics Trail Tune
Key highlights
a strong, trail-tuned alloy frame with 170mm of rear travel and a Horst Link flip chip for on-demand geometry adjustment — 8mm lower BB and half a degree slacker head…
170mm of travel with an Isolater RC damper and three-position compression adjustment for a supportive, plush front end.
a Specialized Ride Dynamics Trail Tune sets up the rear end to match the STATUS 2's kinematics perfectly straight out of the box.
wireless 12-speed shifting with a wide-range 10-52t cassette for climbing and descending alike.
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
Frameset
Frame
M5 Alloy chassis and rear-end, Trail Geometry, Horst Link geometry-adjust flip chip, threaded BB, internal cable routing, 170mm rear travel
Suspension
Fork
RockShox Domain Gold RC, Isolater RC damper, 3-position compression adjustment, 170mm travel
Rear Shock
RockShox Vivid, Specialized Ride Dynamics Trail Tune
Brakes
Brakes
SRAM Maven, 4-piston hydraulic disc (front and rear)
Drivetrain
Shifters
SRAM Eagle 70 AXS POD Controller
Rear Derailleur
SRAM Eagle 70 T-Type Transmission
Cassette
SRAM 1270 Transmission, 12-speed, 10-52t
Chain
SRAM Eagle 70 Transmission
Crankset
SRAM Eagle 70, 32t, 55mm chainline
Wheels and tyres
Wheels
Specialized hookless alloy, 30mm inner width, tubeless-ready, DT Swiss Elemental spokes
Tyres
Butcher, GRIPTON T9 compound — 29x2.4" front, 27.5x2.4" rear
Cockpit and contact points

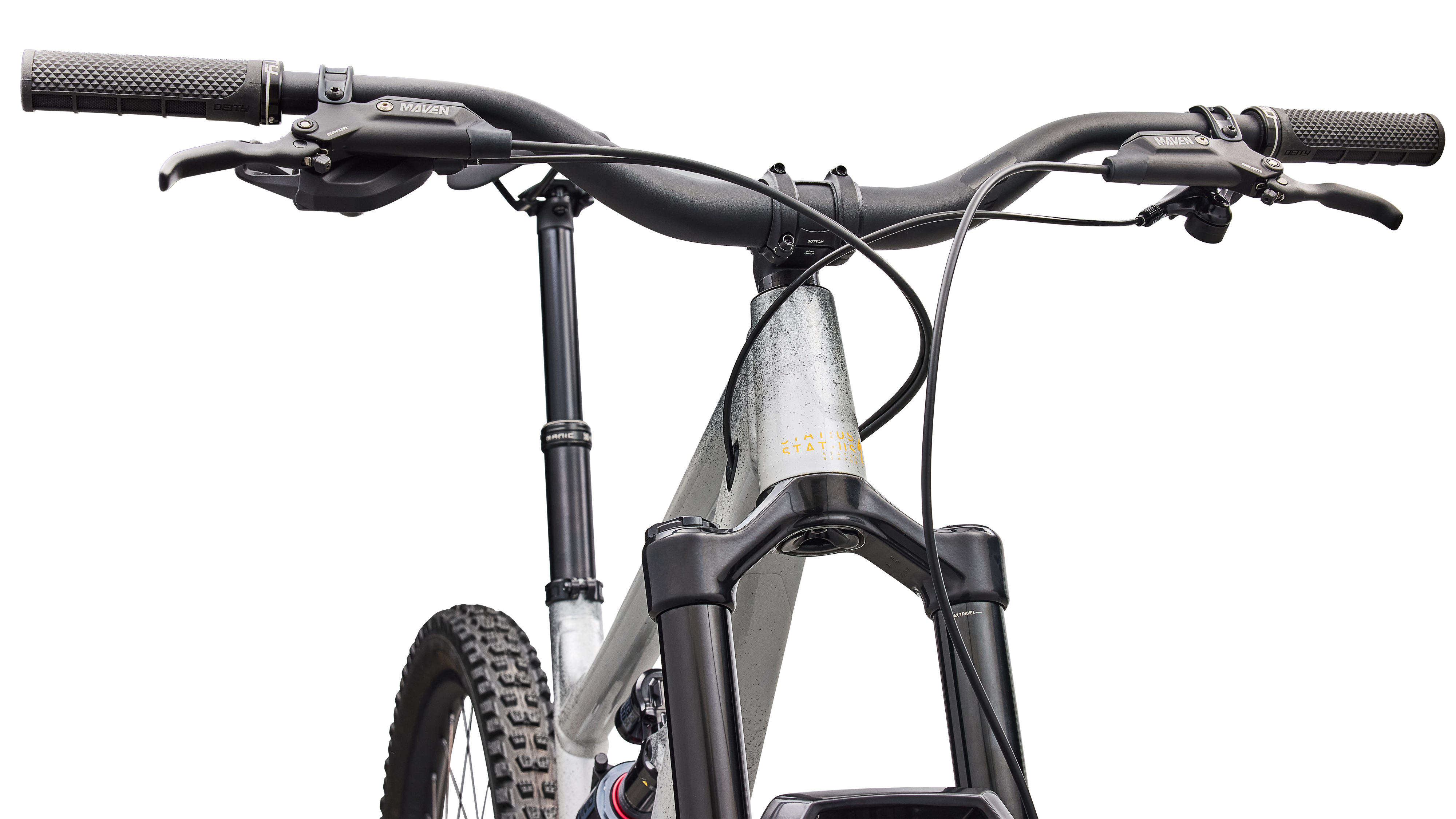

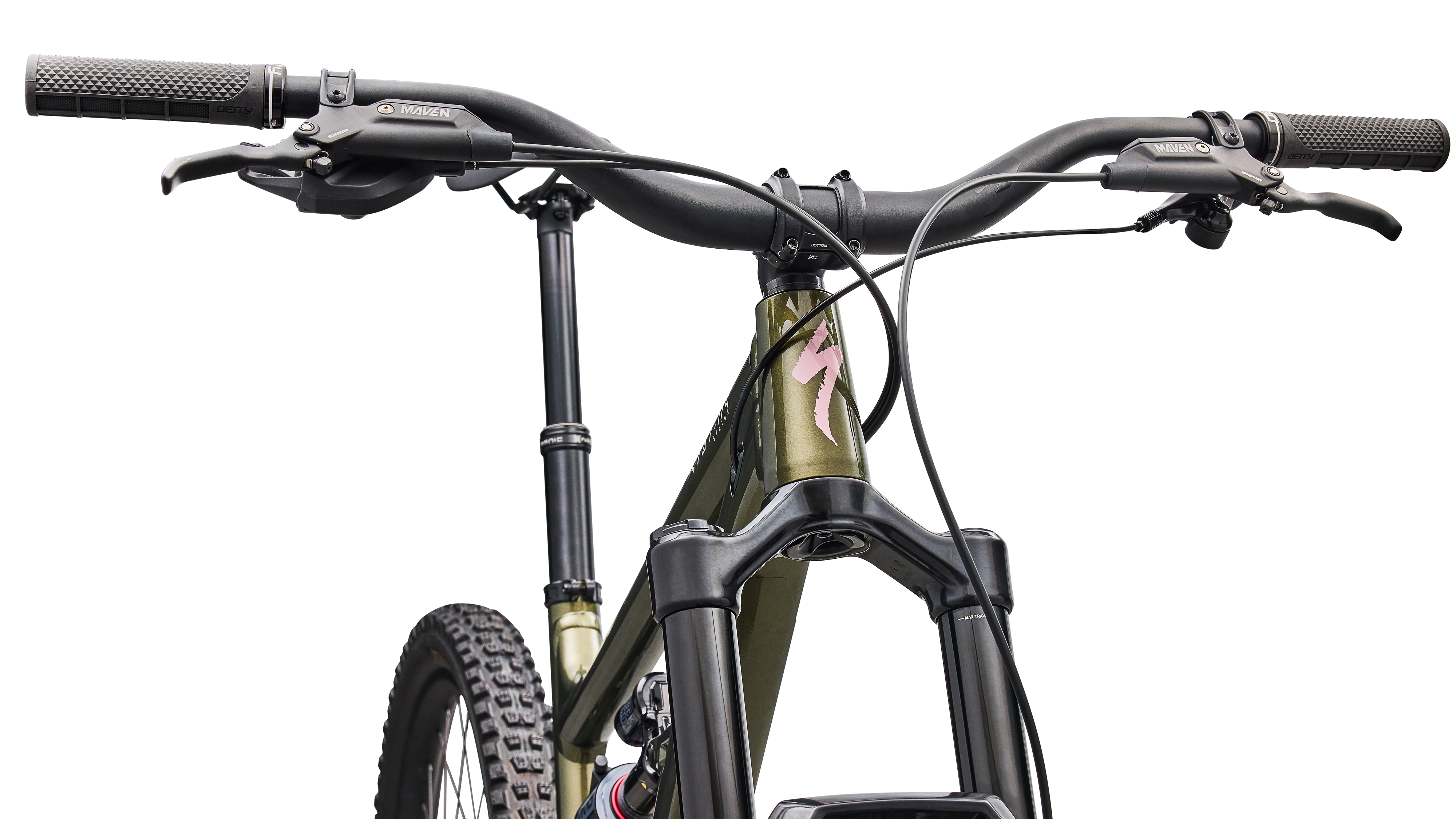

Handlebars
Specialized alloy, 6-degree upsweep, 8-degree backsweep, 780mm (S1-S2) / 800mm (S3-S5)
Stem
Alloy Trail Stem, 35mm bar bore
Seatpost
X-Fusion Manic dropper, infinitely adjustable
Saddle
Body Geometry Bridge Comp, hollow Cr-Mo rails
Weight and sizing
Weight
17.35kg (38lb 4oz), size S3
Weight is based on a production painted bike in the stated reference size. Actual weight can vary with colour, size and component variation. Specifications are subject to change without notice.
