STATUS 2 170 DH
Shipping & Delivery
Built, tuned and handed over by our mechanics. Allow 48 hours if it is still boxed.
Built, delivered and set up at your door.
Boxed and part-assembled — we recommend a shop finishes the build. Not WA or NT.
Send us your address and we will price the freight.
Order-ins are placed the day you buy. We will email tracking as soon as it is on its way.
Product Info
Details + Specs

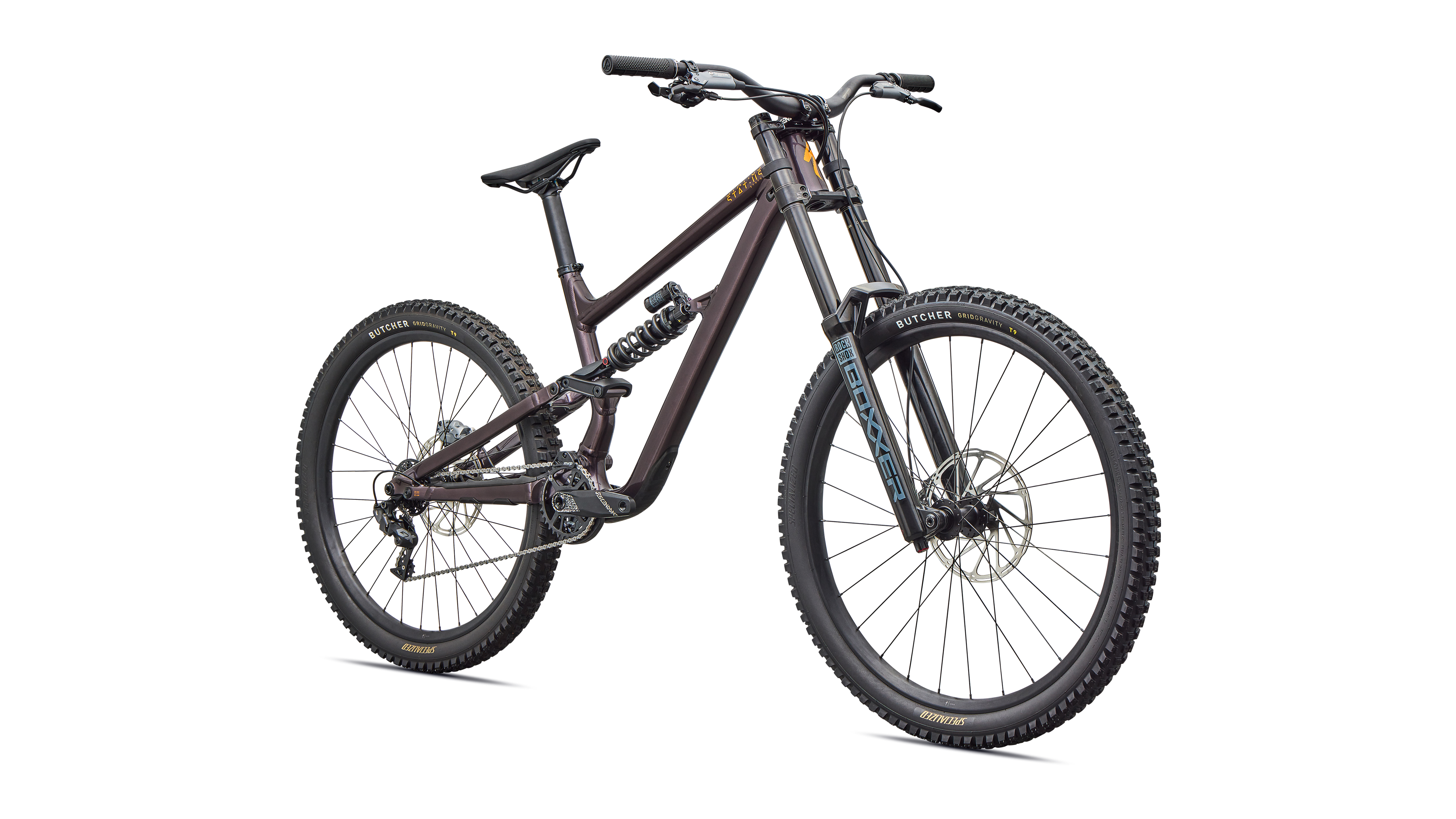

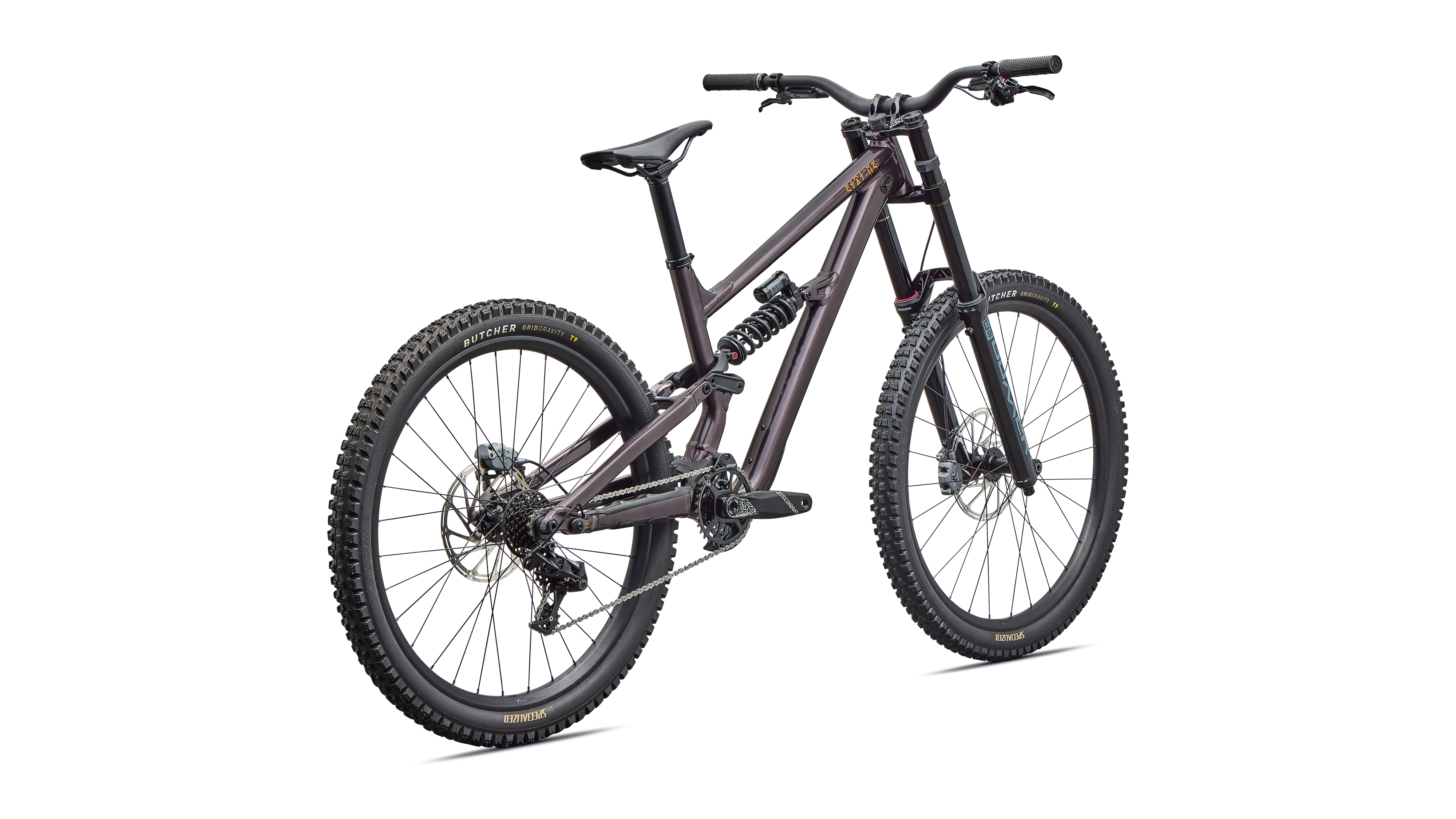

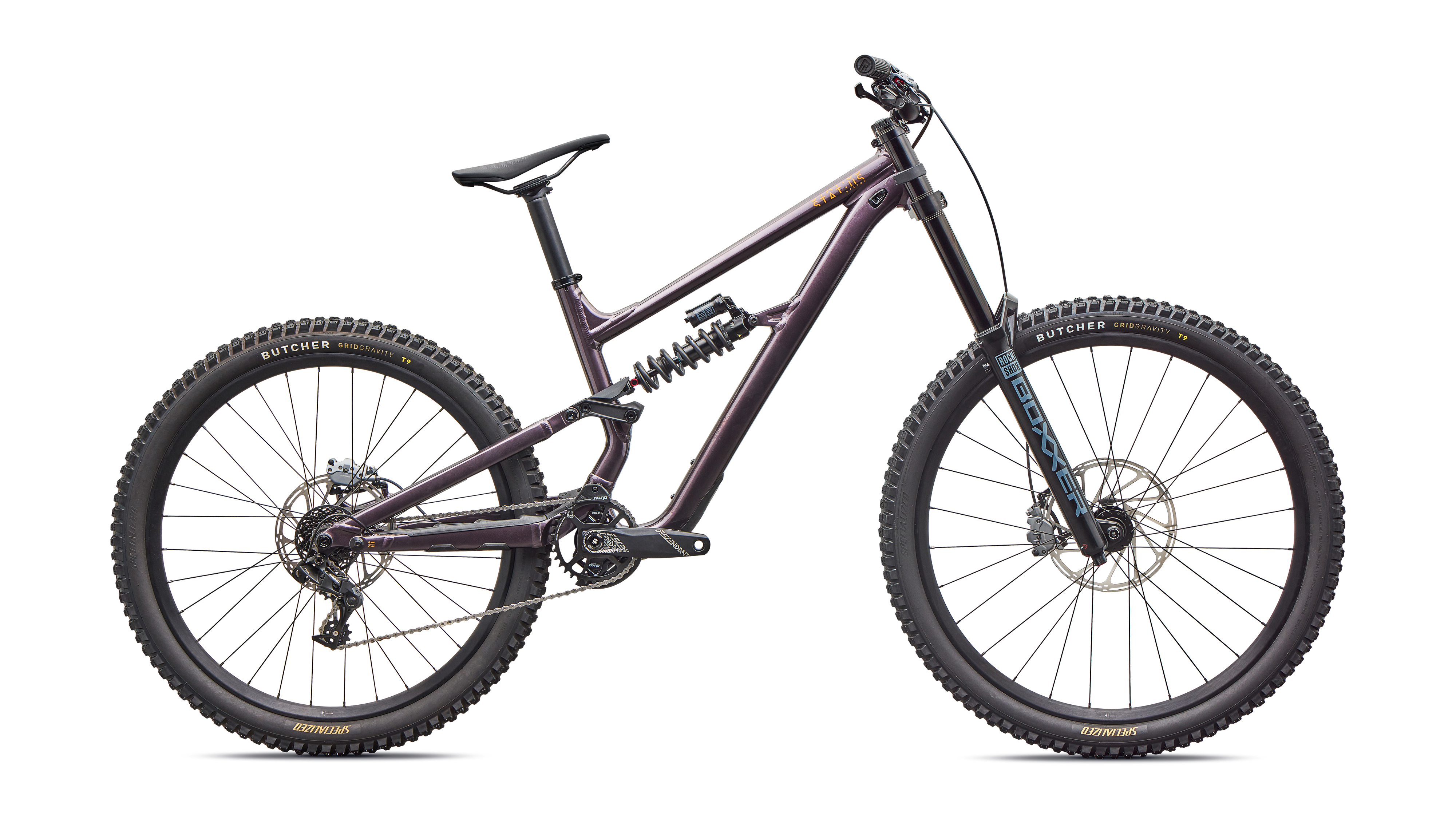

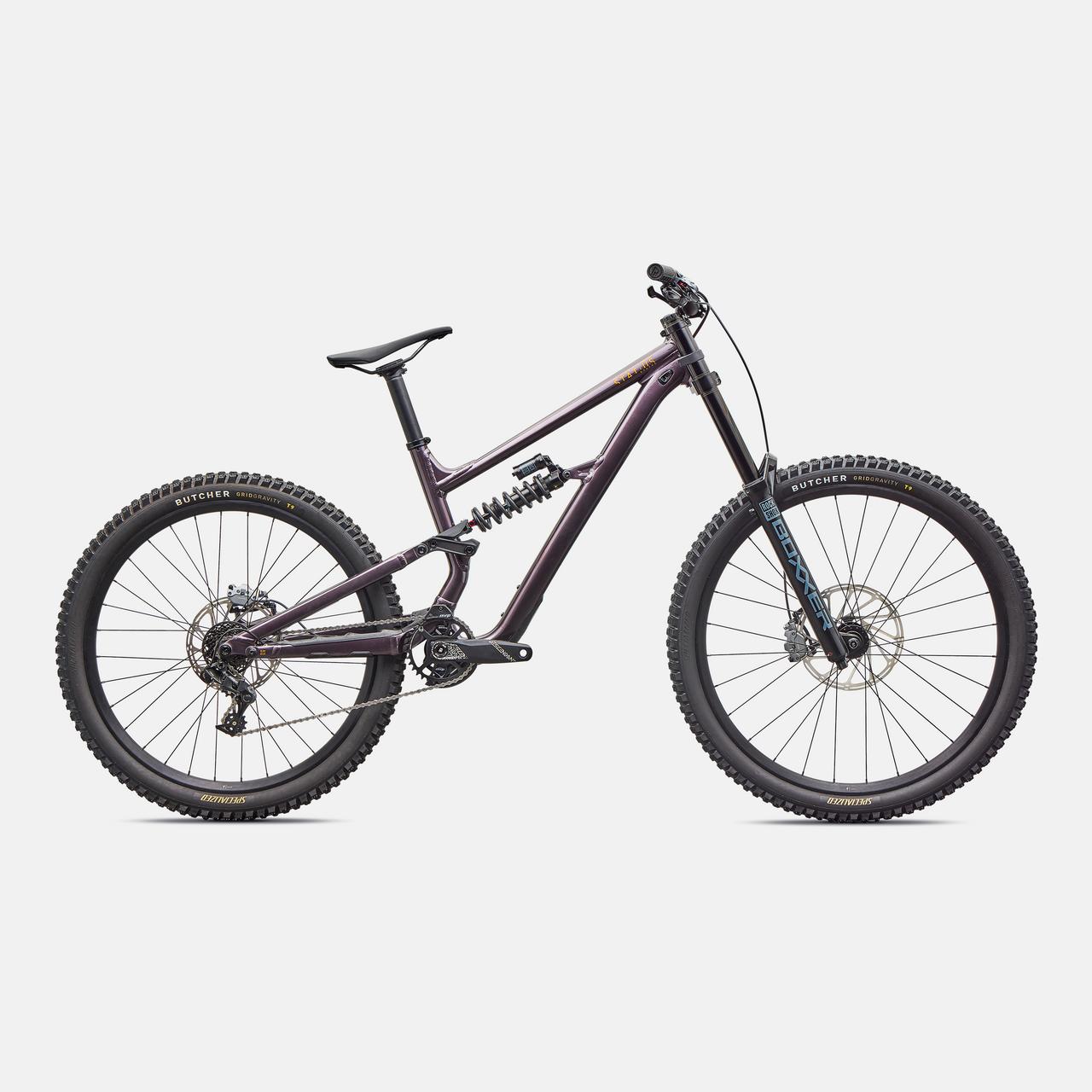

STATUS 2 170 DH
Big-trail capability, straightforward value
STATUS 2 finds the boundaries of mountain bikes and pushes past them — whether that's trail, bike park, streets, or a stealth session on a local wall ride. Each build starts with a super strong M5 alloy chassis and tough alloy wheels, with stout suspension, powerful brakes, and a curated drivetrain spec engineered to catch big hits, pedal smooth, and deliver serious stopping power.
Best for: Playful trail riding, bike-park laps and gravity-focused progression.
At a glance
Frame
M5 Alloy chassis and rear end, Trail Geometry, Horst Link pivot geometry…
Fork
RockShox BoXXer 29, Charger 3 RC damper, 180mm travel
Drivetrain
SRAM GX DH, trigger, 7-speed
Brakes
SRAM Maven Bronze, 4-piston caliper, hydraulic disc
Weight
17.19 kg / 37lb 14.4oz (size S3)
Shock
RockShox Vivid Coil, external rebound adjust, hydraulic bottom-out…
Key highlights
a super strong alloy frame and tough new alloy rims built to take repeated abuse at the bike park and beyond.
a Horst-link suspension platform with a flip chip at the pivot, letting riders tune bottom bracket height and head angle to their terrain.
a dual-crown downhill fork paired with a coil shock, custom-tuned by Specialized's Ride Dynamics team for the STATUS 2 platform.
high-power hydraulic brakes purpose-built for descending, front and rear.
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
Frameset
Frame
M5 Alloy chassis and rear end, Trail Geometry, Horst Link pivot geometry adjustment, 170mm travel
Suspension
Fork
RockShox BoXXer 29, Charger 3 RC damper, 180mm travel
Shock
RockShox Vivid Coil, external rebound adjust, hydraulic bottom-out, 230x62.5mm
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc
Drivetrain
Shifters/Rear Derailleur
SRAM GX DH, trigger, 7-speed
Cassette
SRAM GX DH, 7-speed, 11-25t
Chain
SRAM PC-1110 with PowerLock
Crankset
SRAM Descendant DH, DUB, alloy, direct mount, 34t ring
Wheels and tyres
Wheels
Roval 29"/27.5" Alloy DH, 28mm inner width, 28h, tubeless ready
Tyres
Butcher, GRID GRAVITY casing, 29x2.4" front / 27.5x2.4" rear
Cockpit and contact points

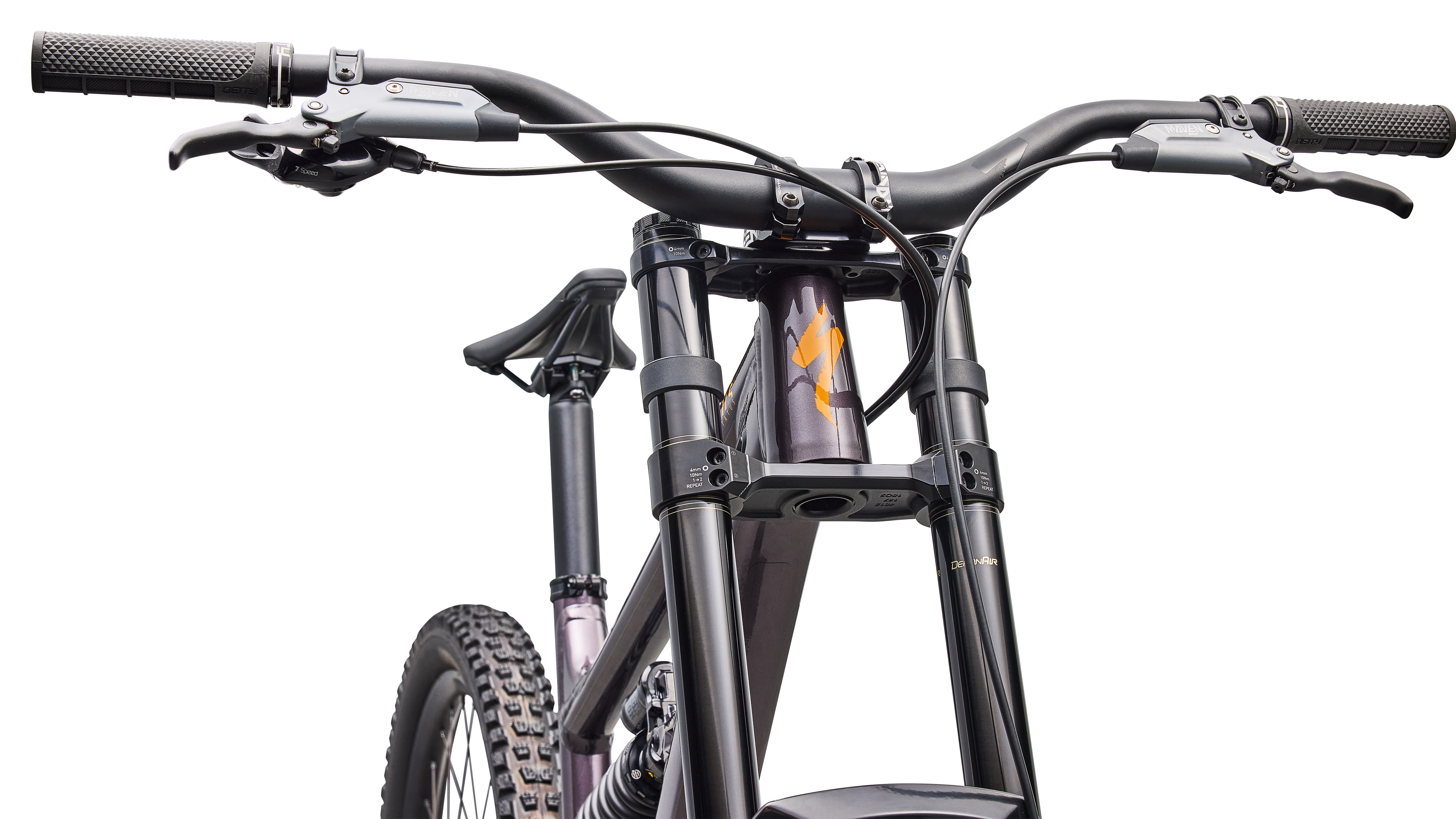

Handlebars
Specialized alloy, 780-800mm width (size-specific)
Stem
Descendant 35mm, direct mount, 50mm length
Seatpost
Specialized, 2-bolt head, forged alloy, 5mm offset
Saddle
Body Geometry Henge DH, hollow Cr-Mo rails, 130mm
Weight and sizing
Weight
17.19 kg / 37lb 14.4oz (size S3)
Weight is based on a production painted bike in the stated reference size. Actual weight can vary with colour, size and component variation. Specifications are subject to change without notice.
