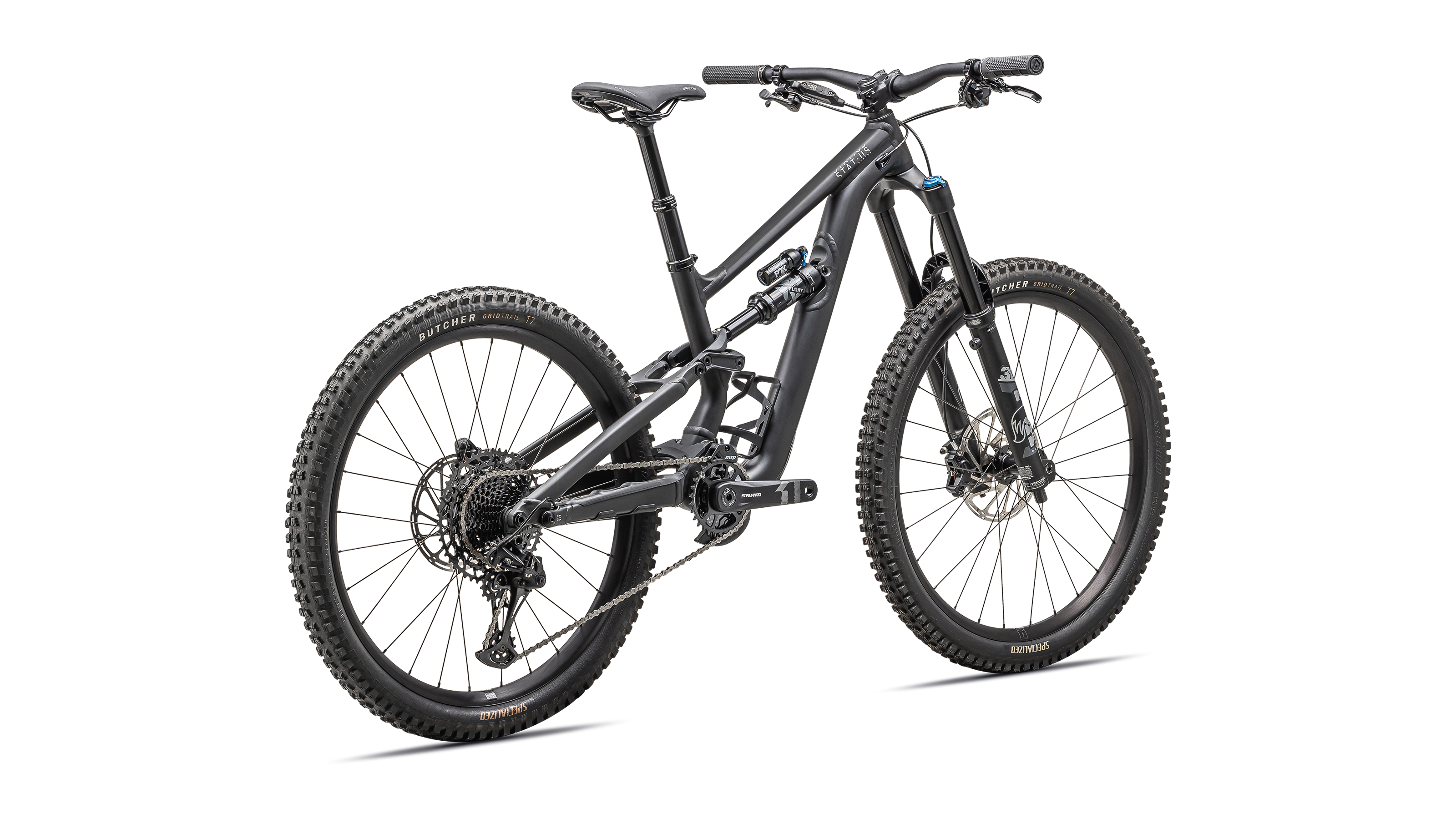

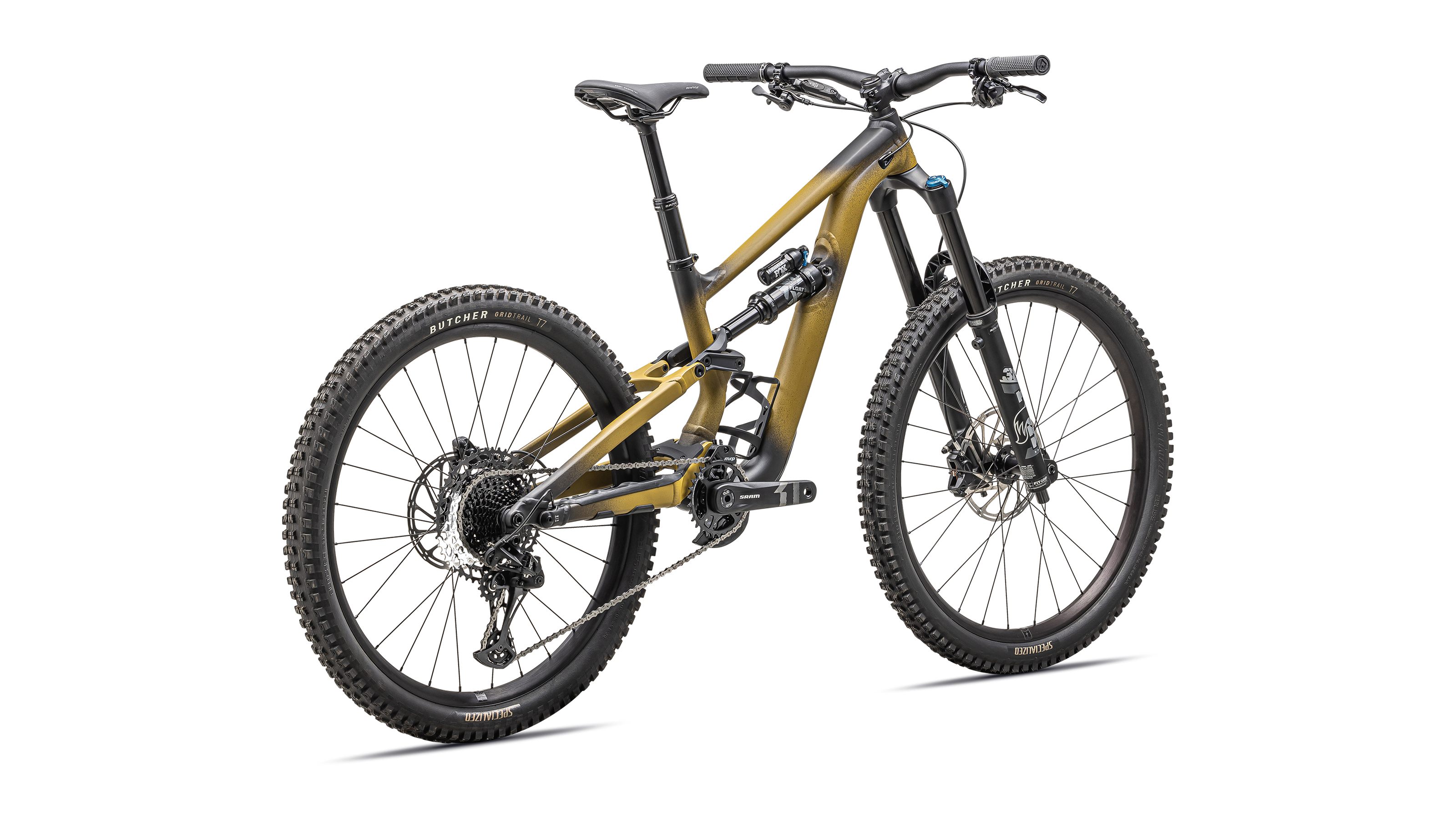

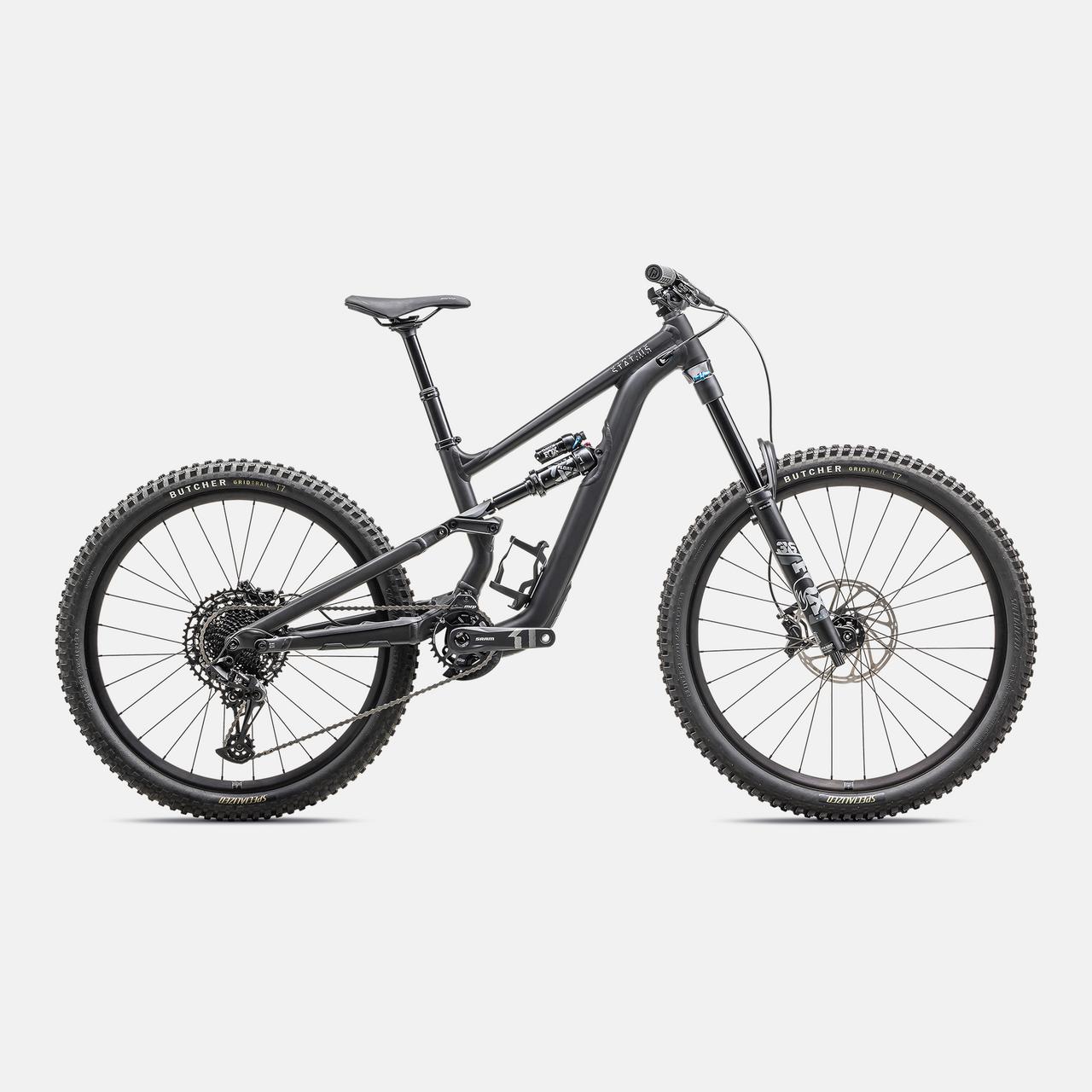

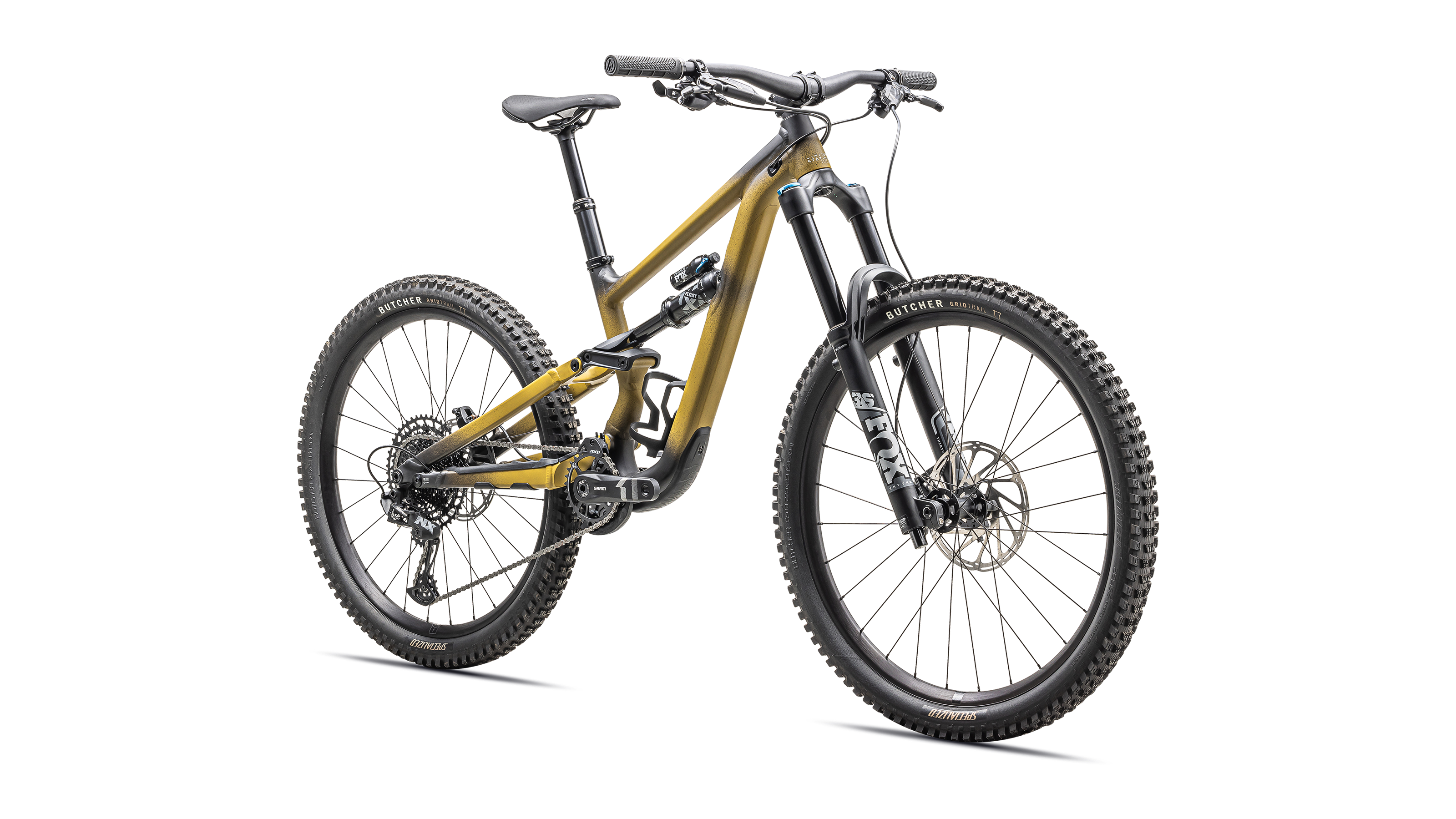

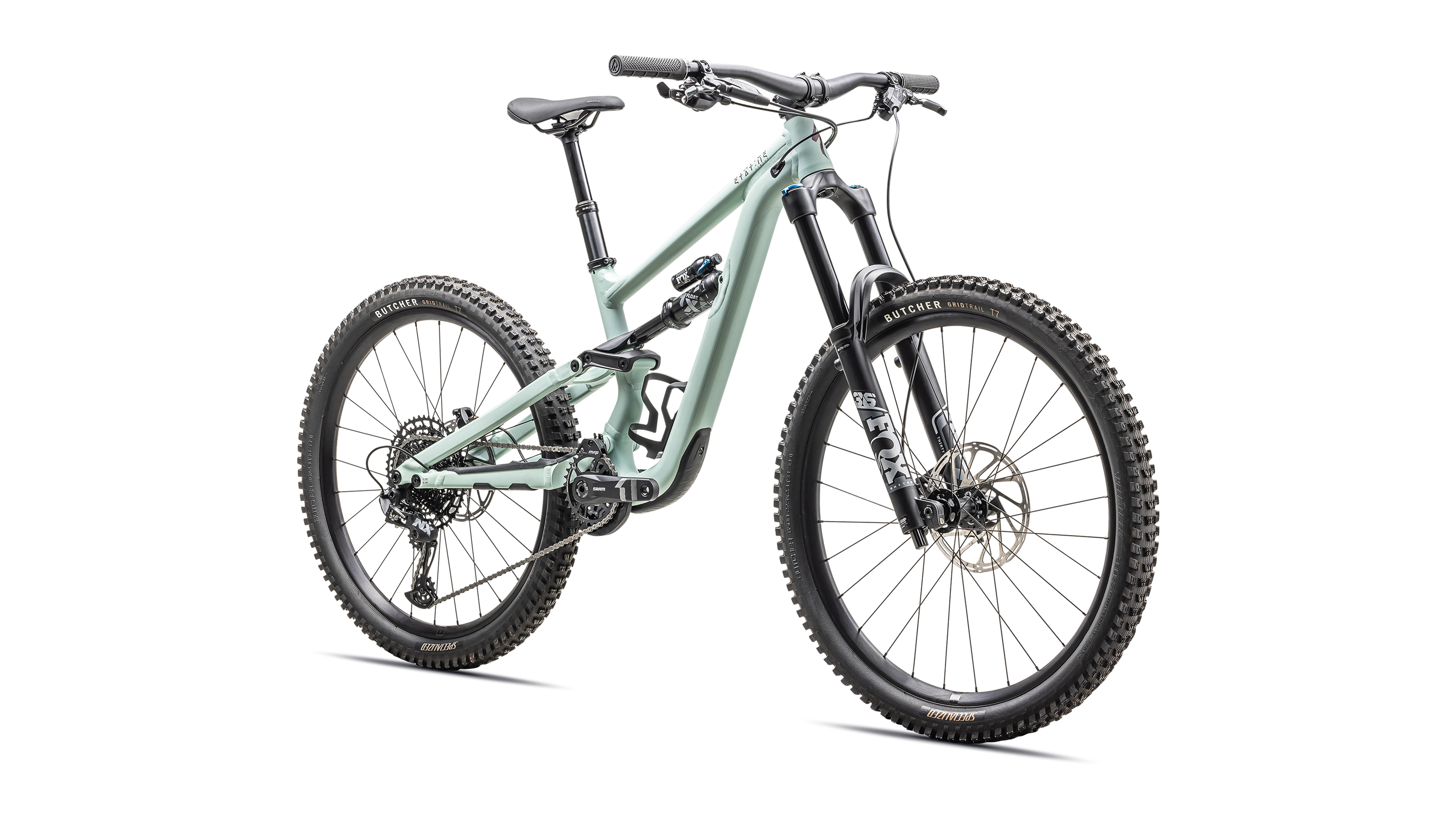

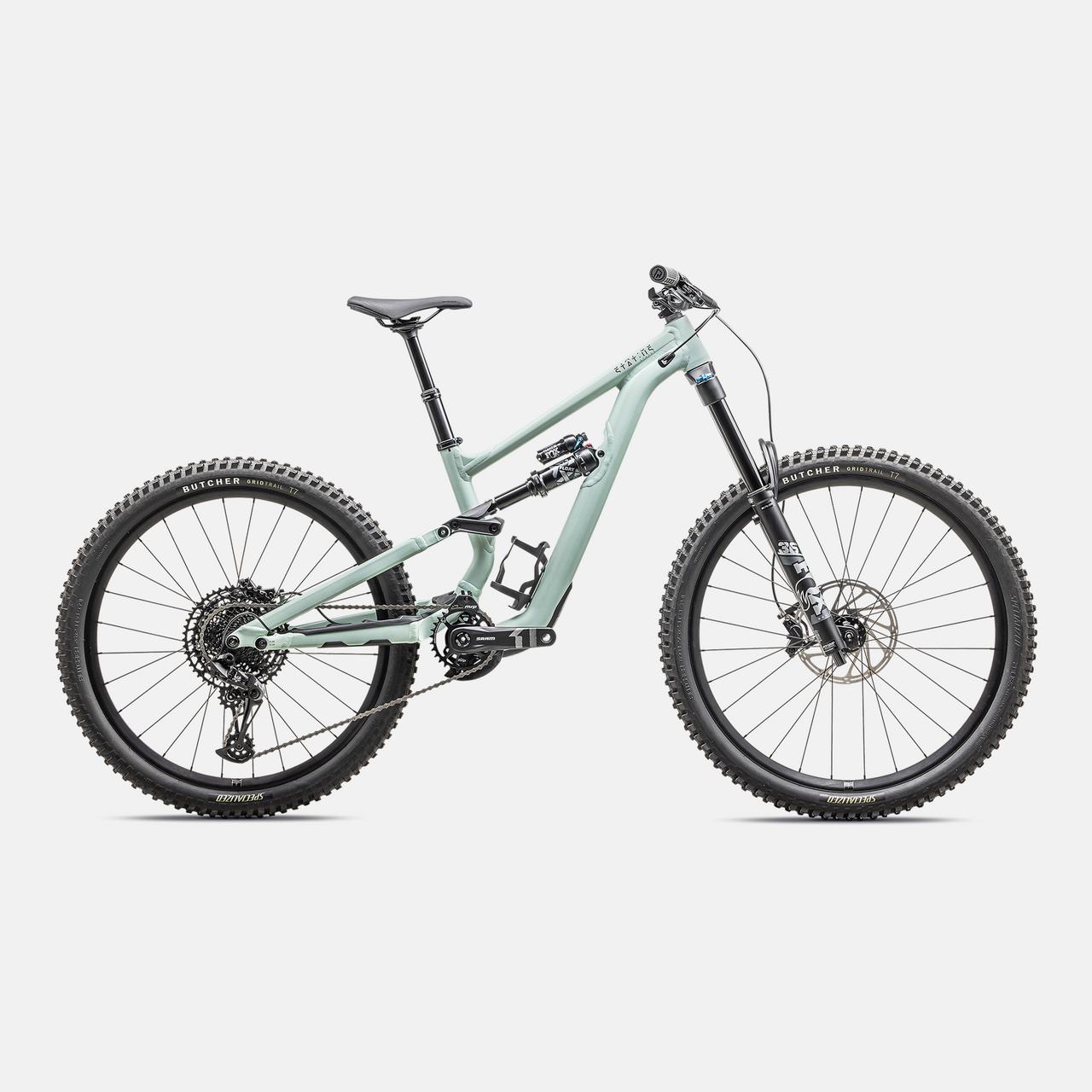

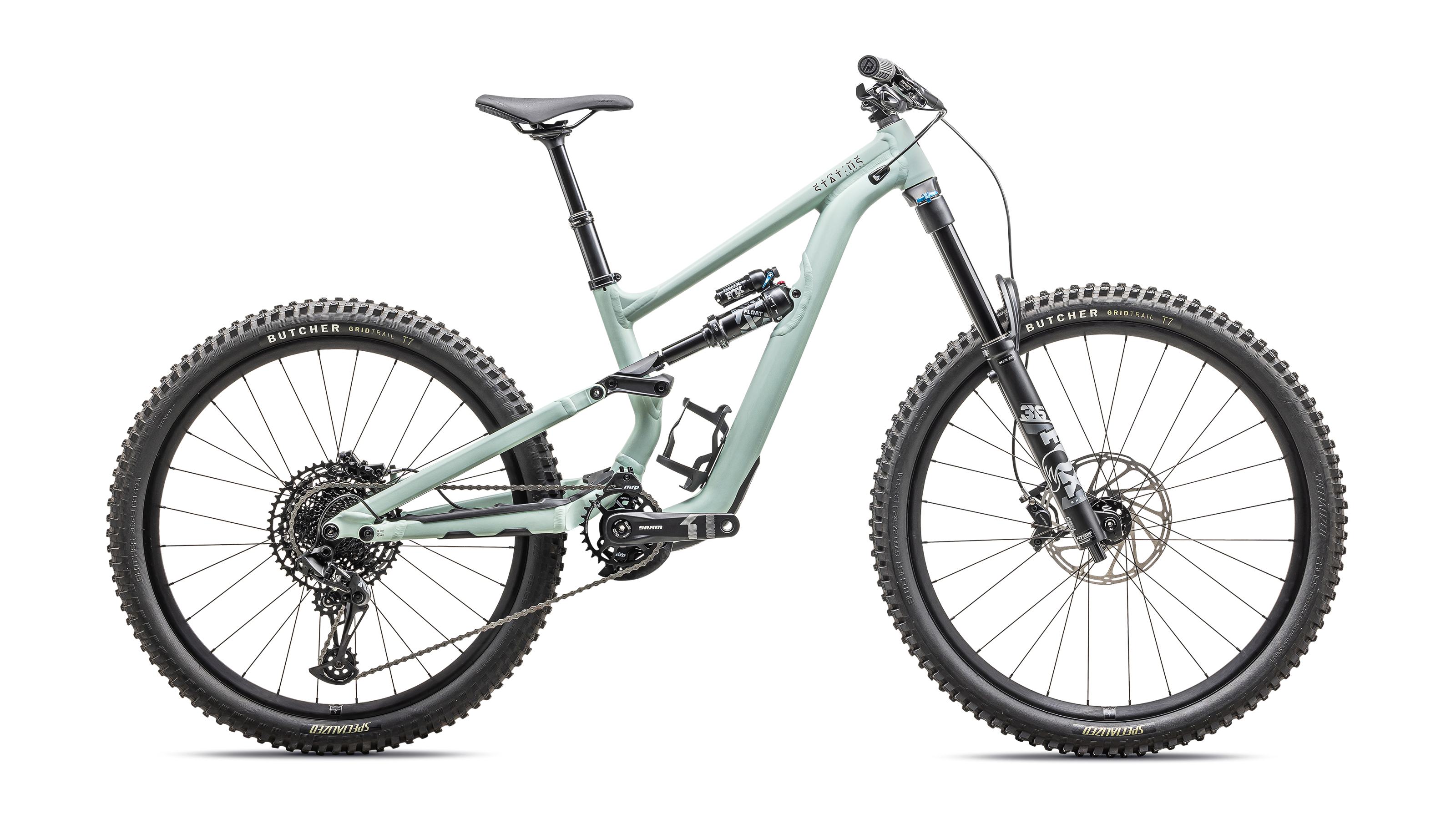

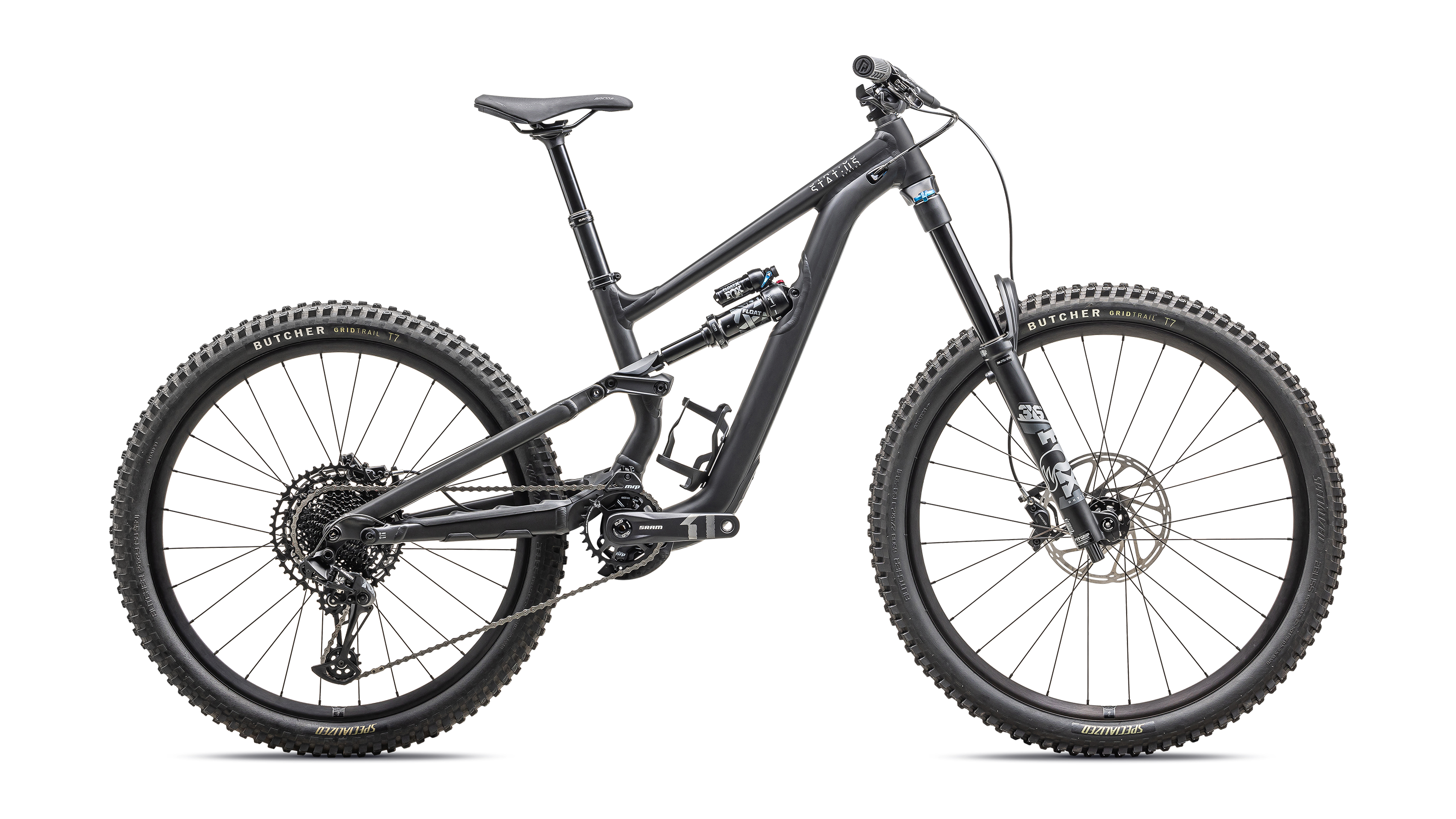

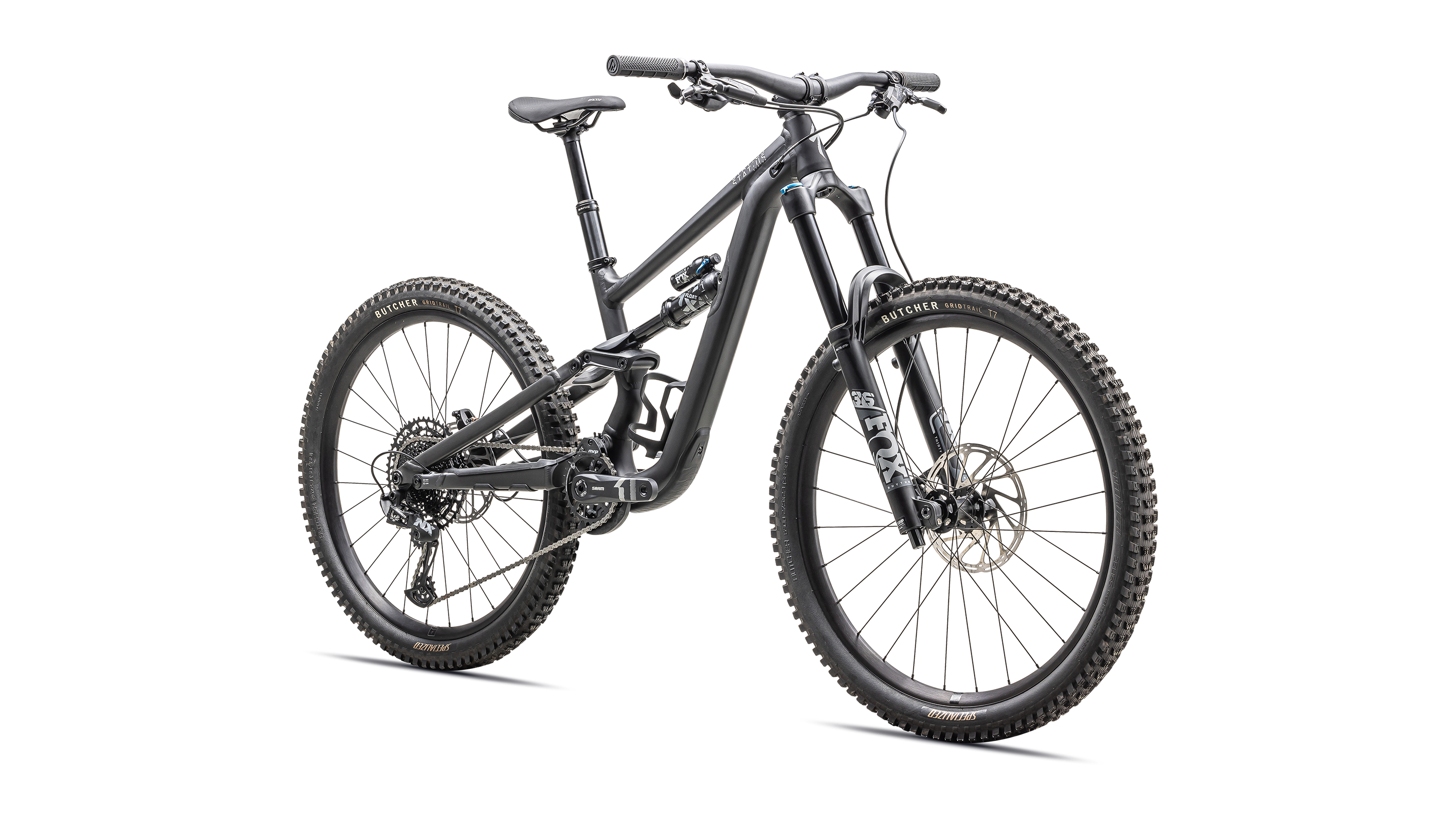

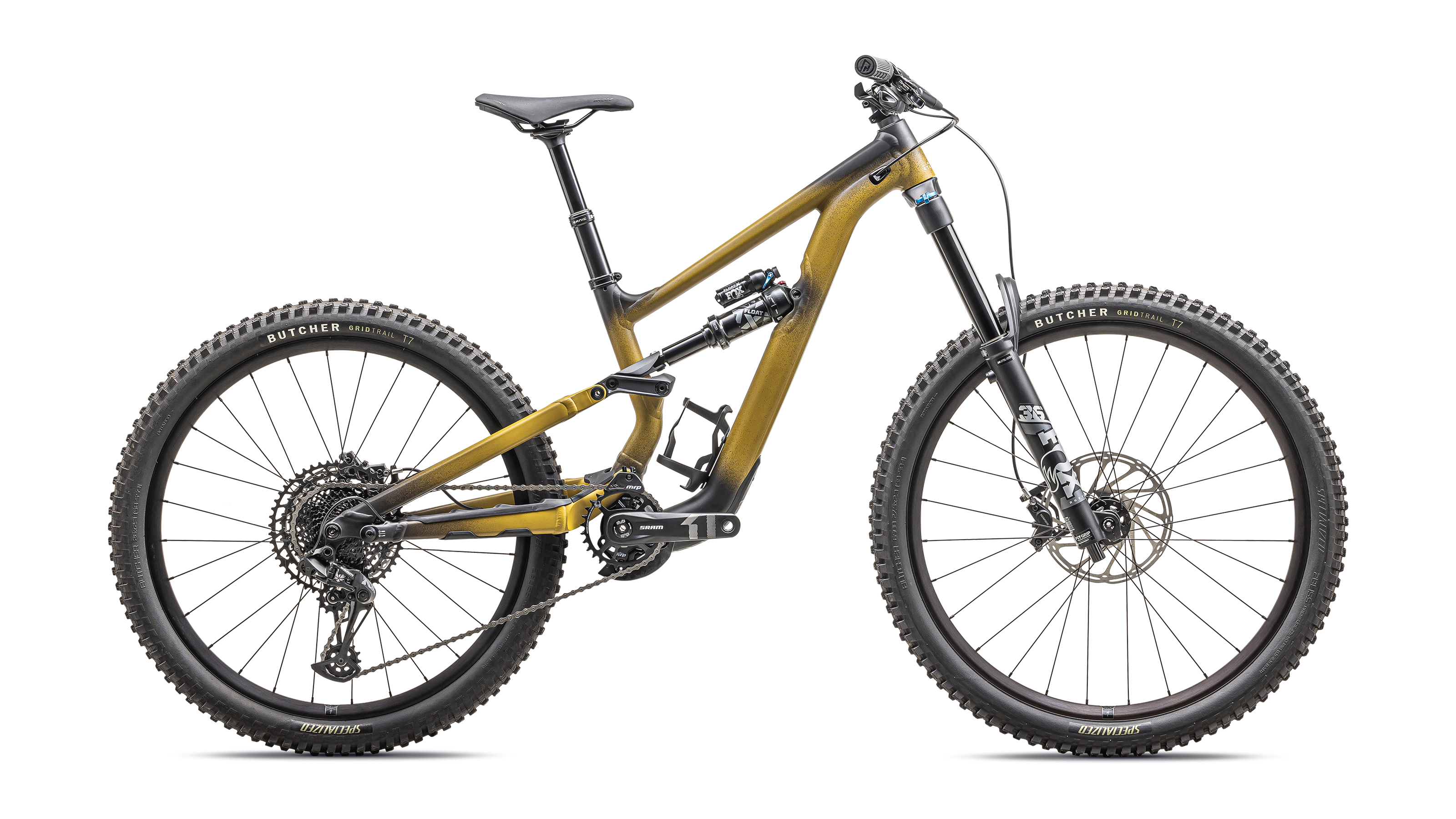

STATUS 2 170 ZERO
Big-trail capability, straightforward value
STATUS 2 ZERO finds the boundaries of mountain bikes made for smaller riders and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride?
Best for: Playful trail riding, bike-park laps and gravity-focused progression.
At a glance
Frame
M5 Alloy chassis and rear-end, Horst Link geometry adjust flip chip…
Fork
FOX FLOAT 36 Rhythm, GRIP damper, 170mm travel, 37mm offset
Shock
FOX FLOAT X Performance, Ride Dynamics Tune, EVOL air sleeve, 2-position…
Drivetrain
SRAM NX Eagle, 12-speed
Brakes
SRAM Code R, 4-piston, hydraulic disc, 200mm rotor
Rear Shock
FOX FLOAT X Performance, Ride Dynamics Tune, EVOL air sleeve, 2-position…
Key highlights
A super-strong M5 alloy chassis with custom-tuned kinematics, suspension, and appropriately sized components designed specifically around smaller riders, not scaled down…
A FOX FLOAT 36 Rhythm fork and FOX FLOAT X Performance shock with a Ride Dynamics-specific tune deliver genuine park- and trail-ready travel.
27. 5" front / 26" rear Roval Traverse hookless alloy wheels wrapped in grippy Butcher GRID TRAIL tyres for confident, playful handling.
4-piston hydraulic disc brakes and a wide-range 12-speed SRAM NX Eagle drivetrain give small riders the same stopping power and gear range as their bigger siblings.
Complete specification
Full build details
Components are grouped by bike system so the complete build is easy to scan.
Frameset
Frame

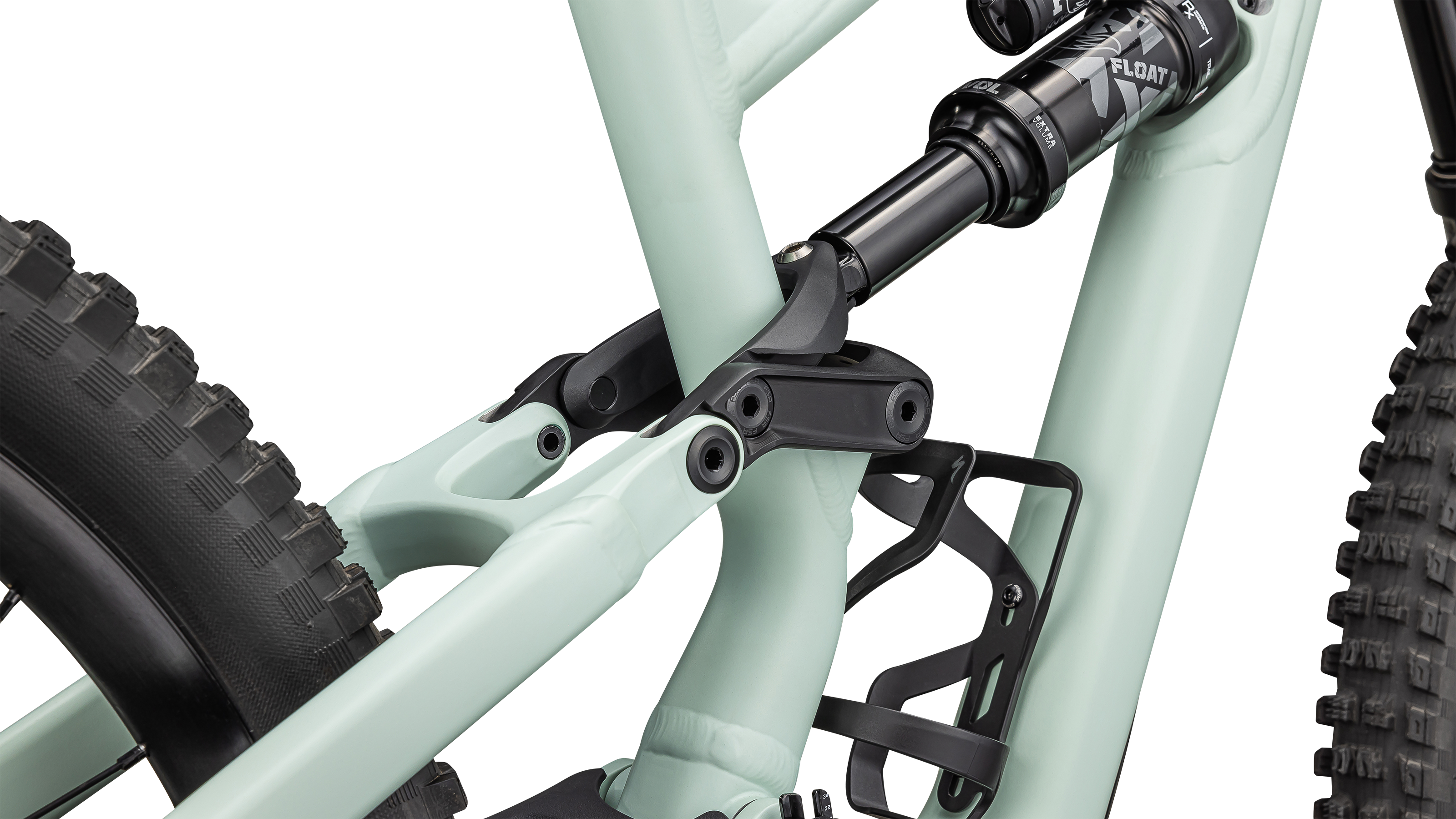

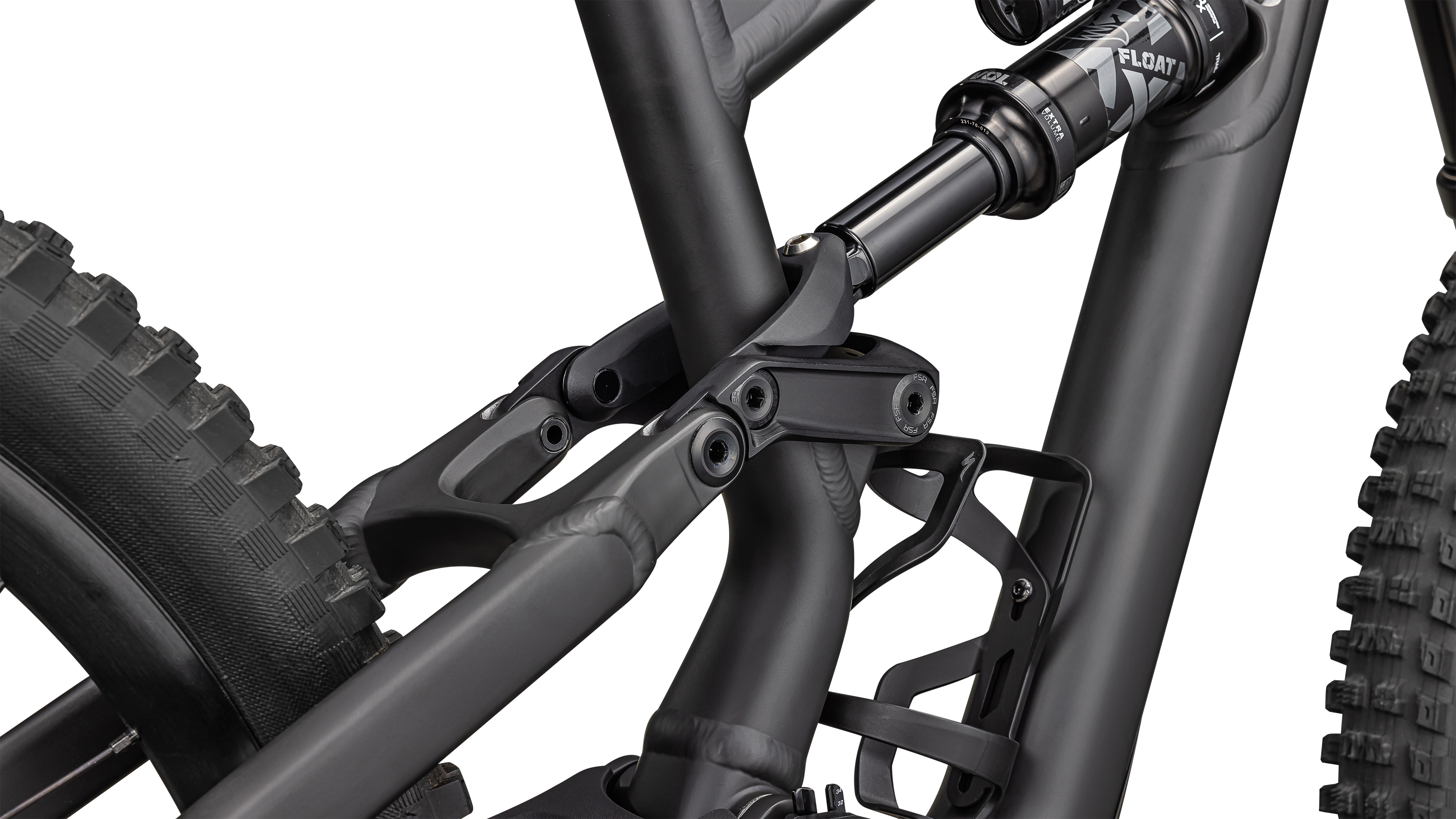

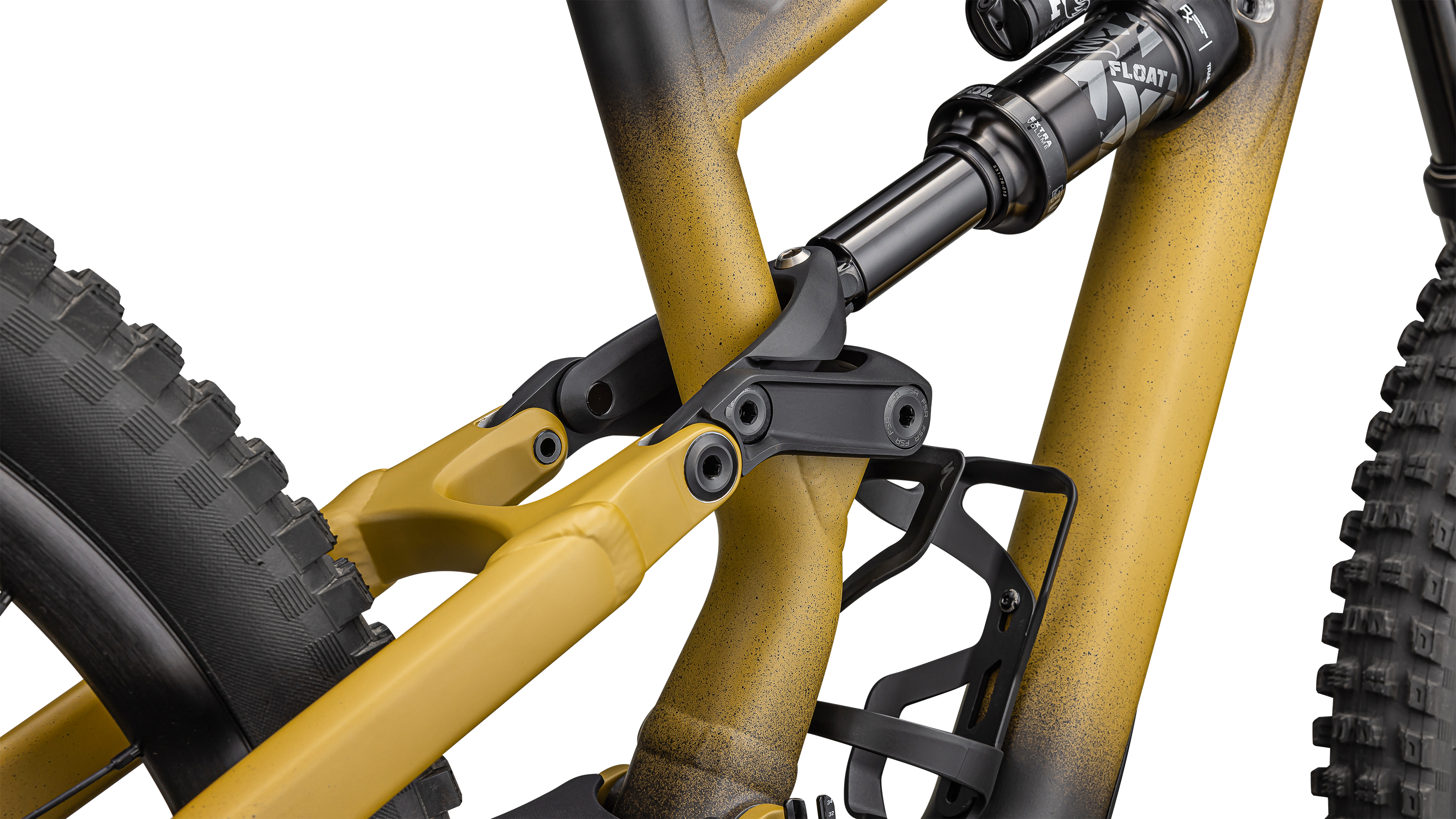

M5 Alloy chassis and rear-end, Horst Link geometry adjust flip chip, 170mm rear travel
Suspension
Fork
FOX FLOAT 36 Rhythm, GRIP damper, 170mm travel, 37mm offset

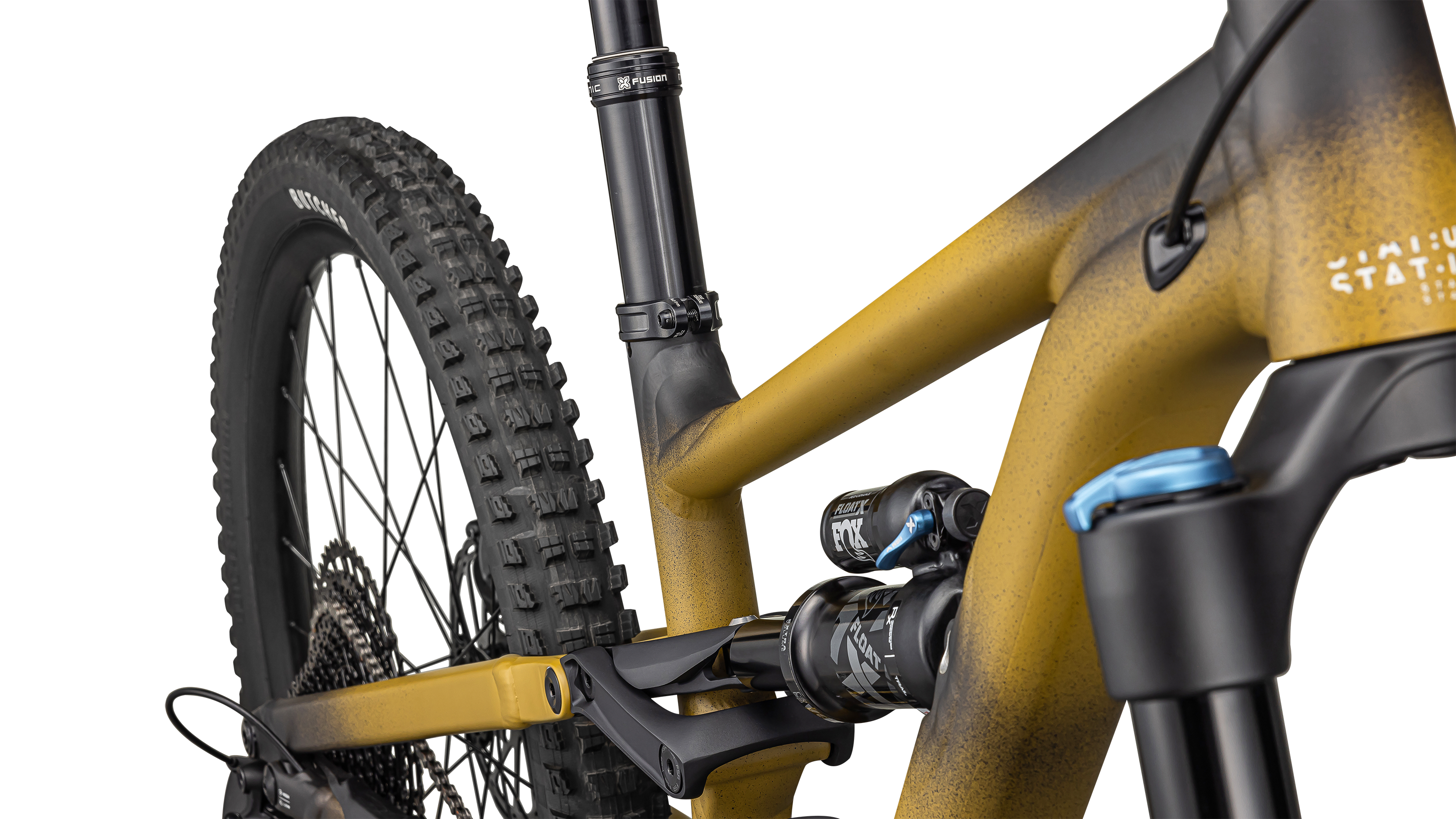

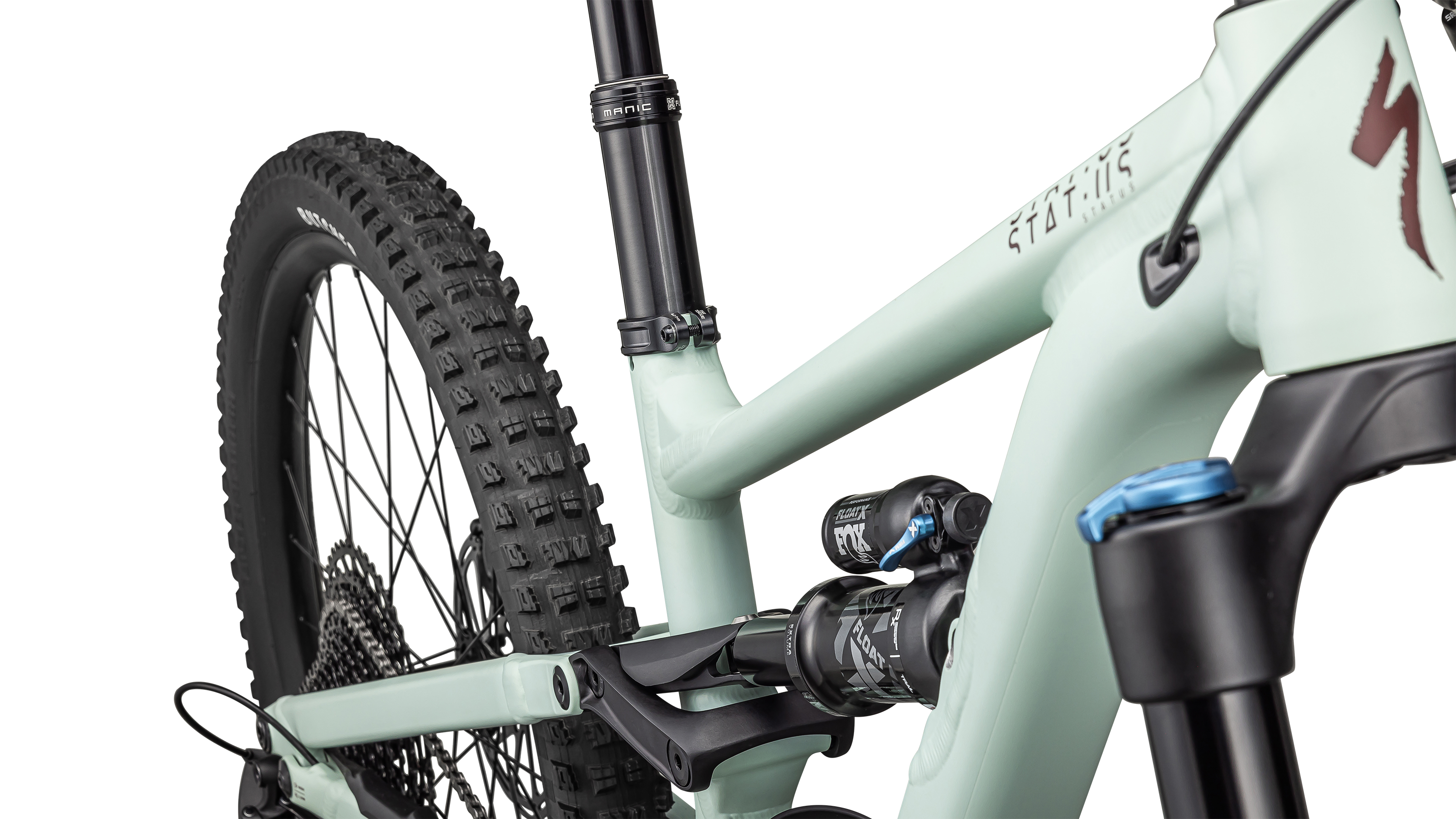

Rear Shock

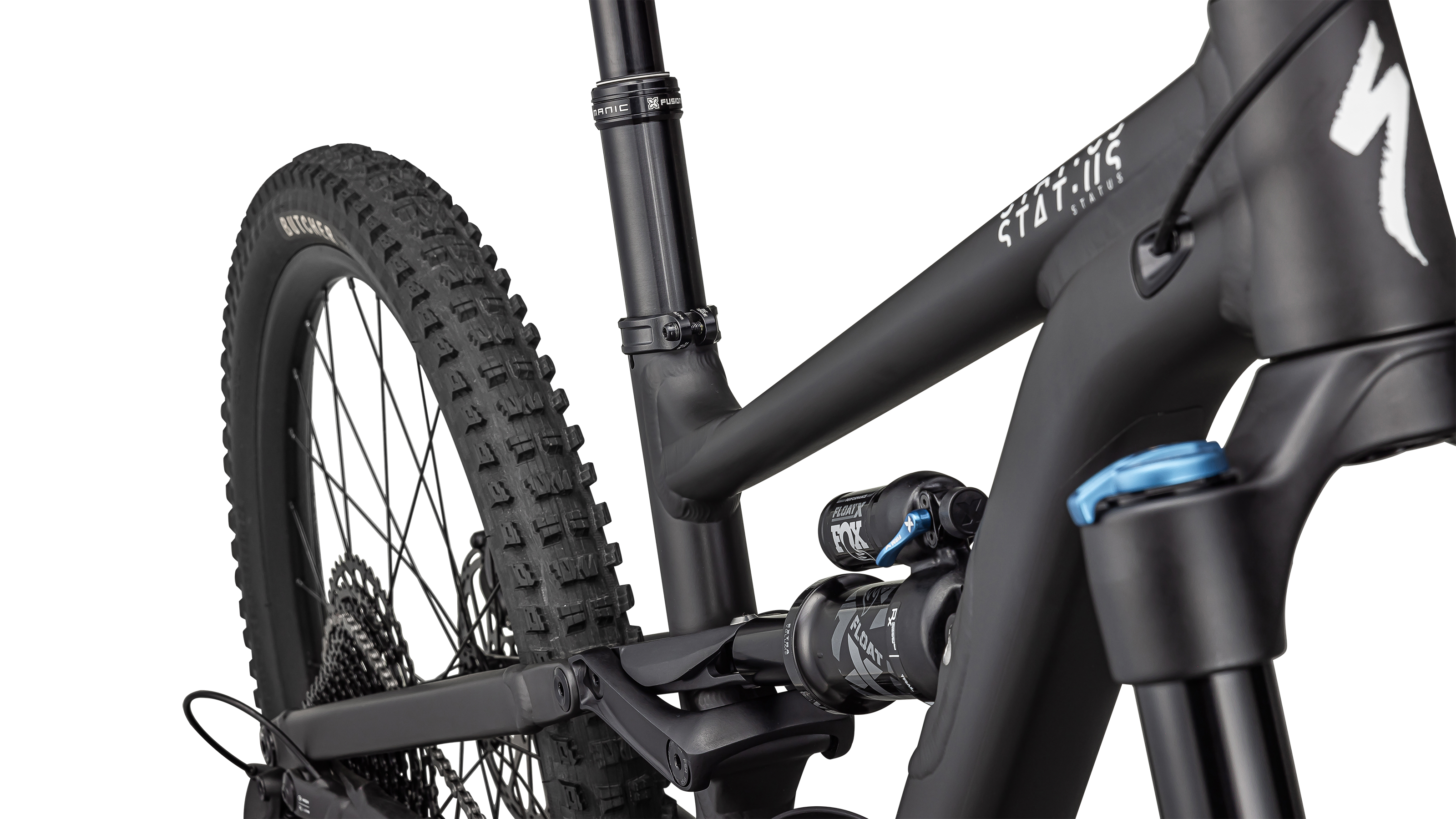

FOX FLOAT X Performance, Ride Dynamics Tune, EVOL air sleeve, 2-position compression lever
Brakes
Front Brake
SRAM Code R, 4-piston, hydraulic disc, 200mm rotor
Rear Brake
SRAM Code R, 4-piston, hydraulic disc, 180mm rotor
Drivetrain
Shifters
SRAM NX Eagle, 12-speed
Rear Derailleur
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50t
Chain
SRAM NX Eagle, 12-speed
Crankset
SRAM X1 Eagle, alloy, DUB, 155mm, 30t
Bottom Bracket
SRAM DUB, threaded, wide
Wheels and tyres
Wheels
Roval Traverse, hookless alloy, 30mm internal width (27.5" front / 26" rear)
Tyres
Specialized Butcher, GRID TRAIL casing, 2.3" (27.5" front / 26" rear)
Cockpit and contact points

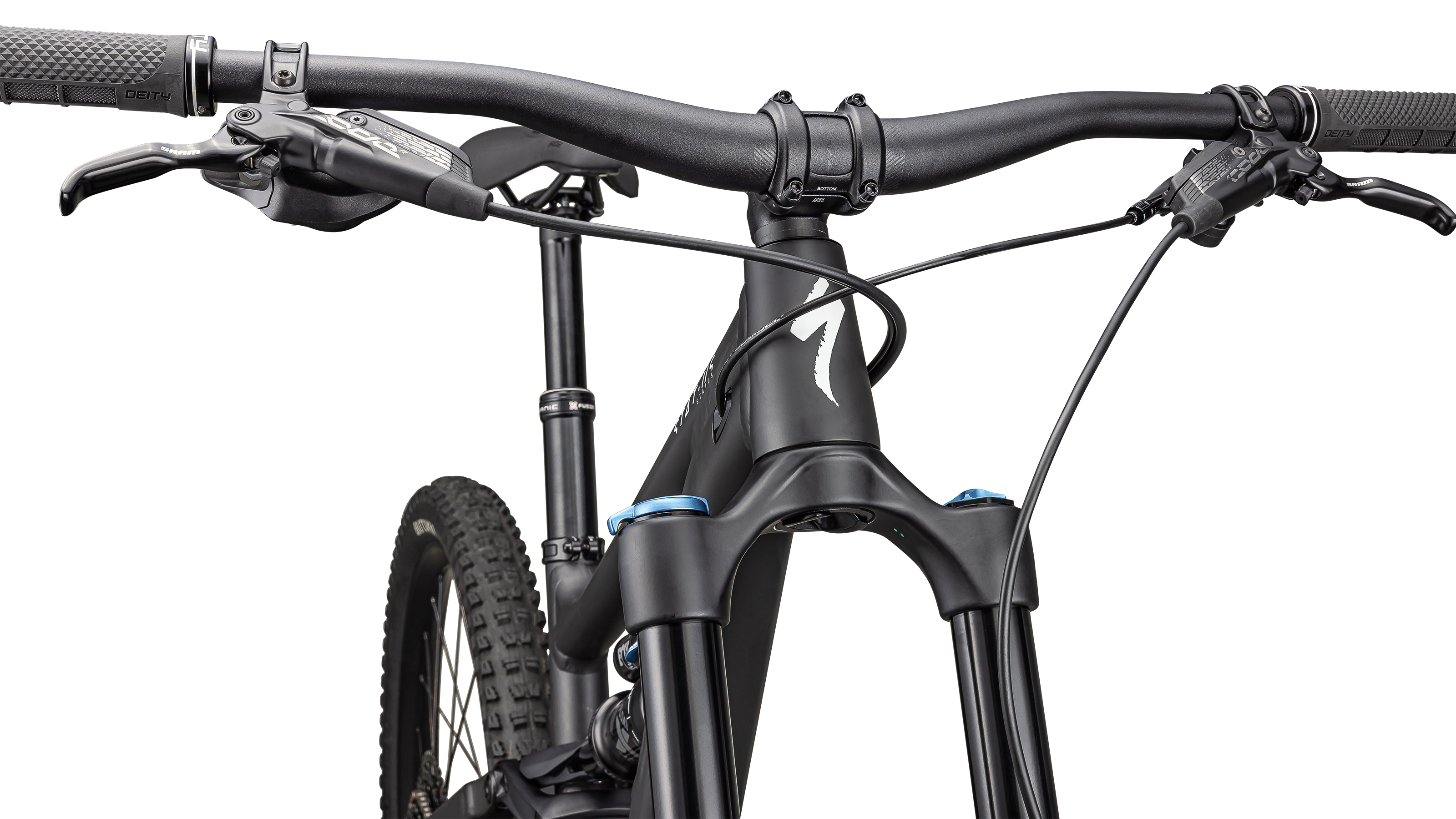

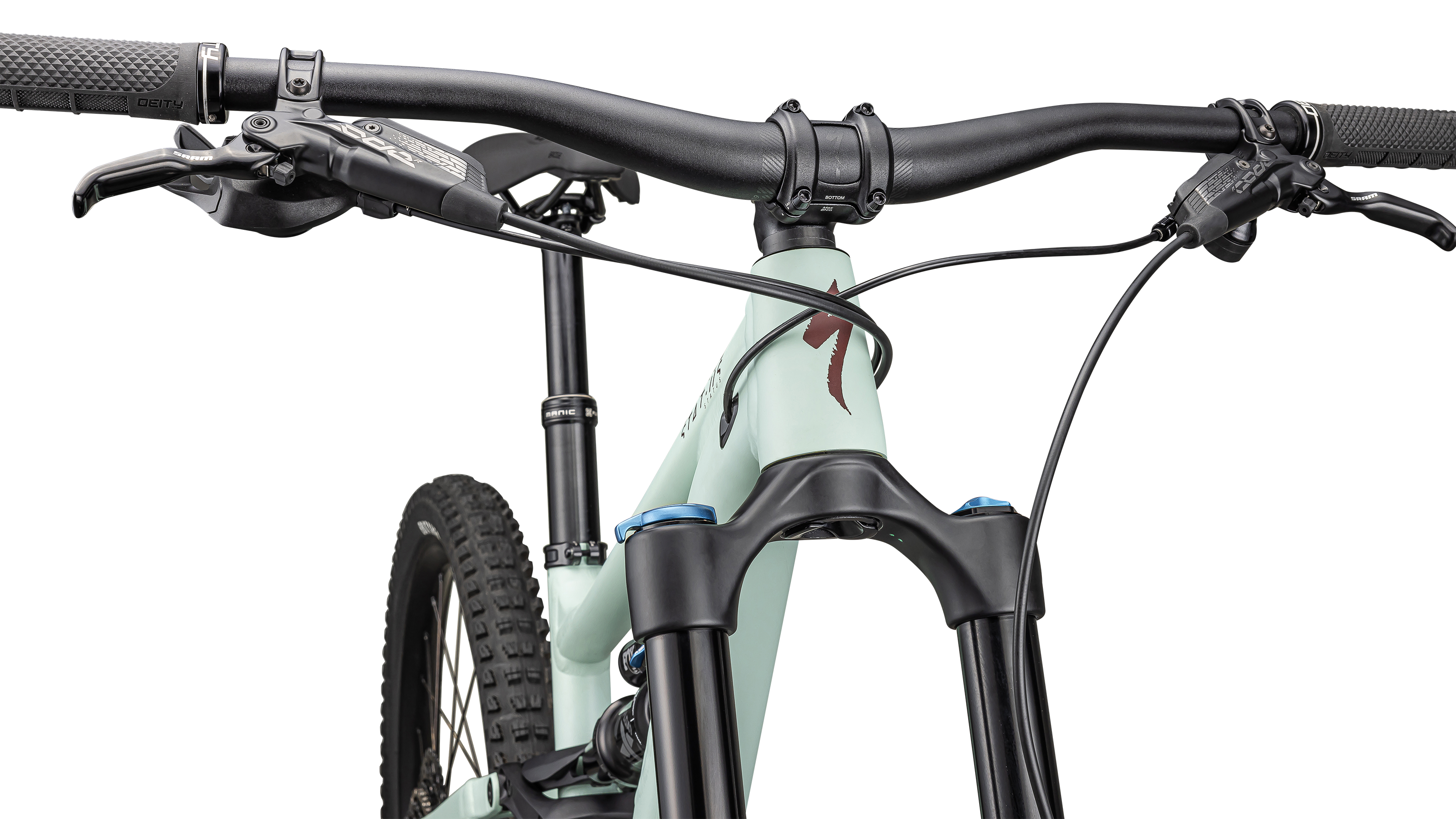

Handlebars

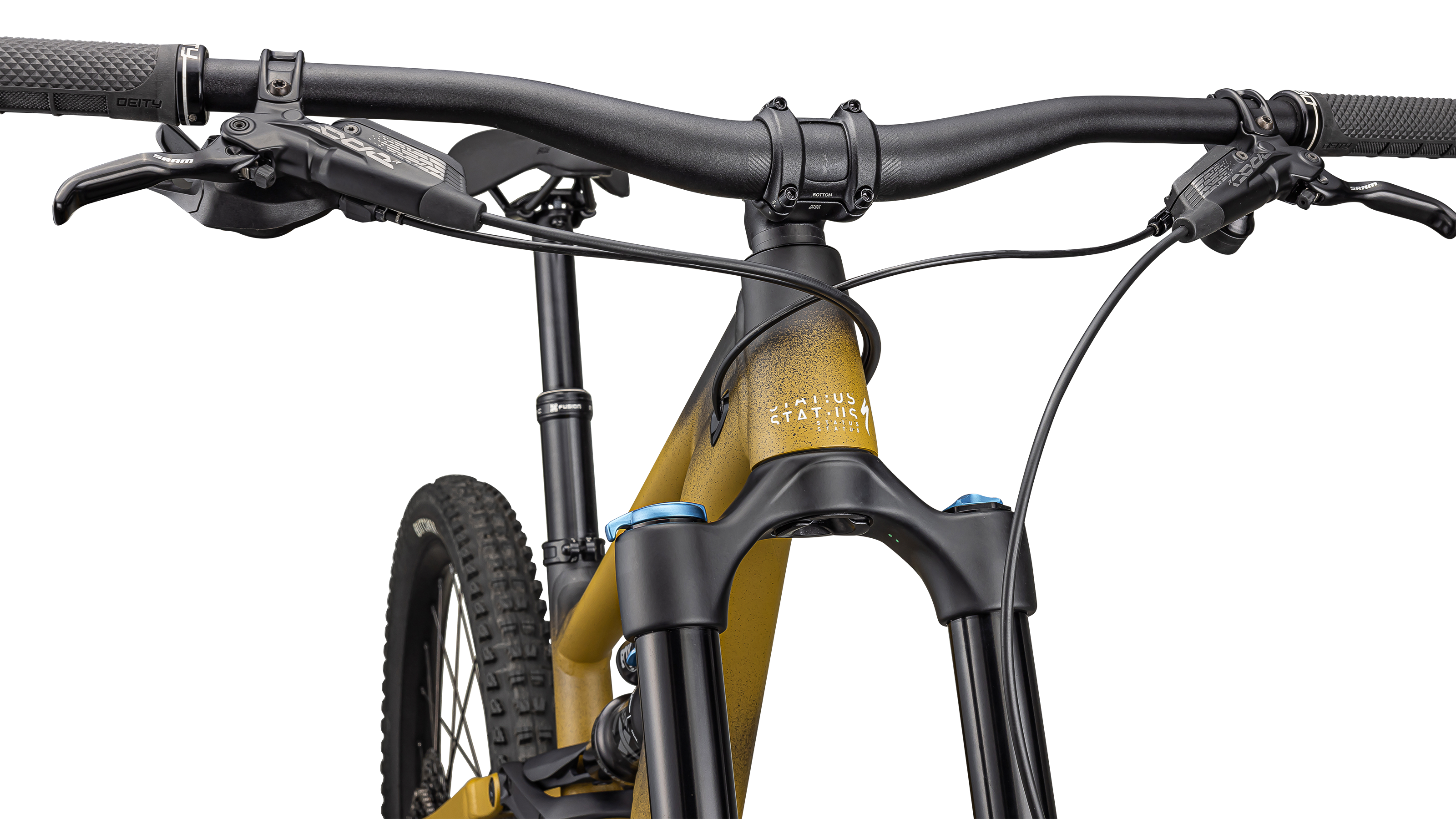

Specialized alloy, 760mm width, 30mm rise, 8-degree backsweep
Stem
Alloy Trail Stem, 35mm bar bore, 40mm length
Seatpost

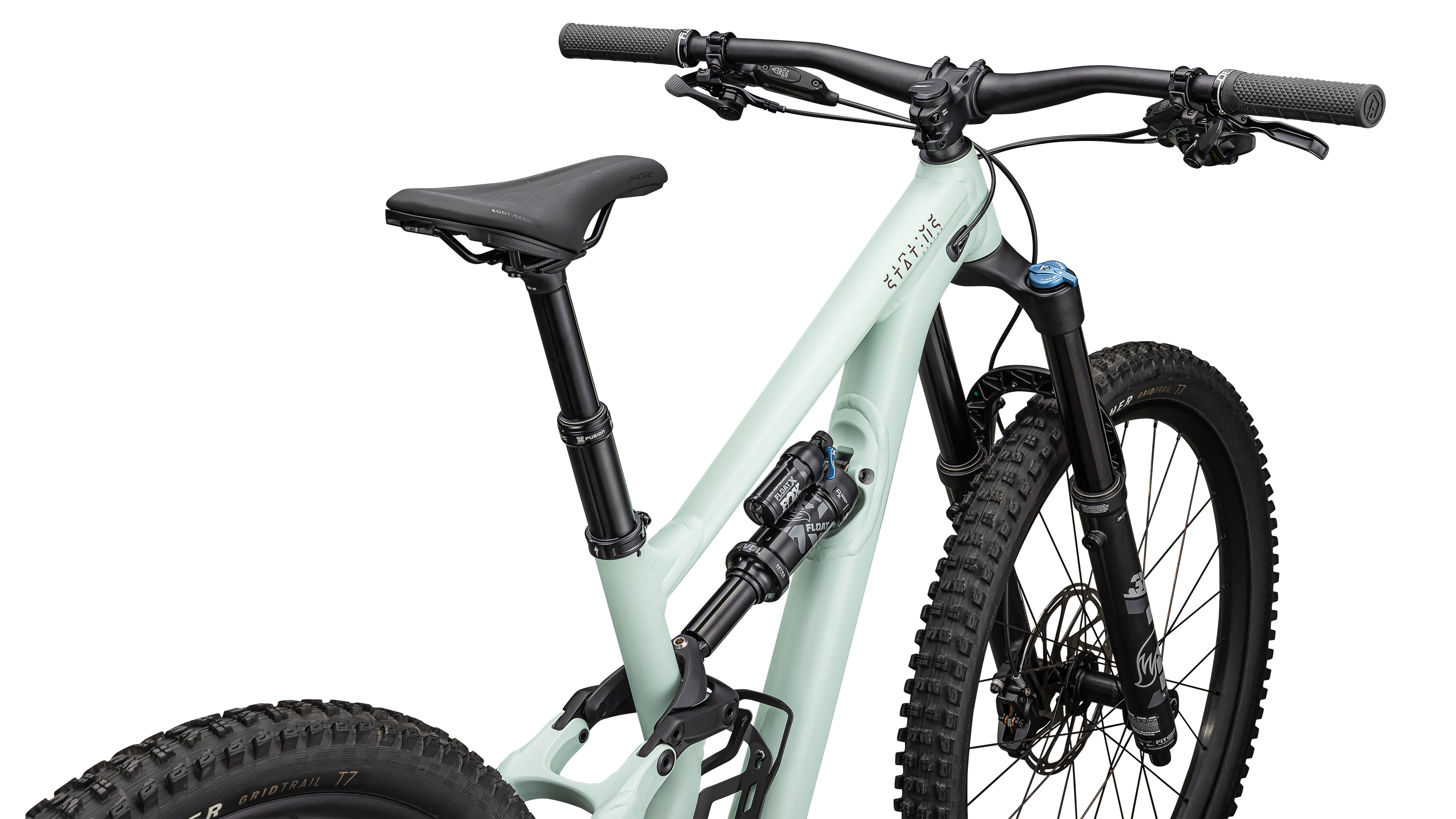

X-Fusion Manic dropper, 100mm travel, infinite adjust
Saddle
Bridge, steel rails, 130mm
Component specifications are subject to change without notice.
